MSO3000 / DPO3000
还在寻找 100 MHz、300 MHz 和 500 MHz带宽 的 MSO/DPO3000 系列吗?现在,您可以在 MDO3000 系列中找到替代产品。这些混合域示波器内置频谱分析仪、任意波形/函数发生器,提供了高达 1 GHz 的带宽。
了解这些产品的更多信息。
功能丰富的混合信号设计诊断工具。
MSO/DPO3000 混合信号示波器系列拥有高达 500 MHz 的带宽和 2.5 GS/s 采样率,为当今主流应用提供所需的性能。 通道数多达 20 个,您只需一台设备即可分析模拟和数字信号。 再结合自动串行和并行总线分析、创新的 Wave Inspector® 控件以及自动功率测量,MSO/DPO3000 系列为您提供了所需的多功能工具,简化和加快复杂设计的调试工作。
MSO3000 / DPO3000
Features |
Benefits |

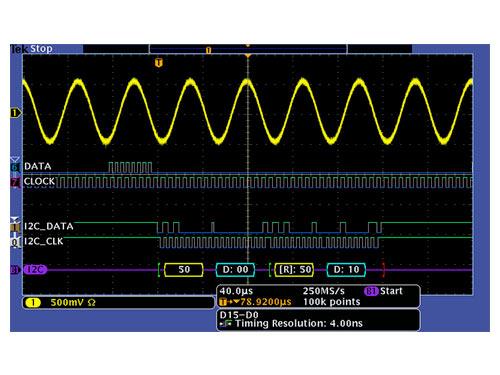

Up to 4 analog and 16 digital channels | Analyze analog and digital signals on a single instrument for system-level troubleshooting of complex designs. |
Digital phosphor display | Quickly discover glitches and infrequent events with a greater than 50,000 wfm/s waveform capture rate and intensity-graded display. |
Complete set of triggers | Rapidly capture signal anomalies with over 125 available trigger combinations, including setup/hold, serial packet content and parallel data. |

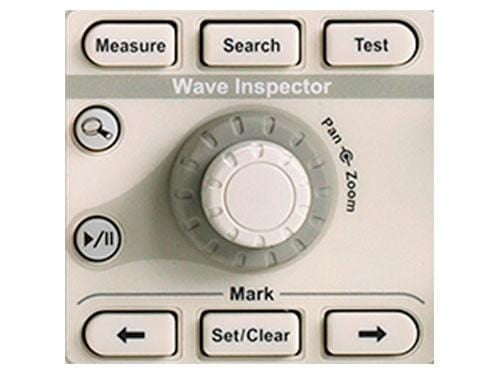

Wave Inspector® controls | Easily search, mark and navigate long record lengths to find all occurrences of your event. |
Automated Measurements | Simplify analysis of your device with 29 automated measurements, FFT analysis, measurement statistics, and advanced waveform math. |
Parallel bus triggering and analysis (MSO Series) | Quickly debug your parallel bus with automated trigger, decode and search. Capture fast transitions with timing resolution up to 121.2 ps. |
Serial triggering and analysis (optional) | Quickly debug common serial buses with automated trigger, decode and search - I2C, SPI, MIL-STD-1553, CAN, LIN, FlexRay, RS-232/422/485/UART and I2S/LJ/RJ/TDM. |
Power analysis (optional) | Achieve fast, accurate results with integrated automated power measurements. |
Upgradable bandwidth | Purchase the performance you need today that fits your budget, and simply upgrade the bandwidth when your project requirements change. |
