MPEG Transport Stream Monitor
MTM400

在线阅读:
Features & Benefits
- Multilayer, Multichannel, Remote Monitoring and Measurement at IP, RF Test, and Transport Layers to DVB (TR 101 290), ATSC, DigiCipher® II (DCII), and ISDB-T (Terrestrial and Mobile) Standards
- The Gigabit Ethernet Interface*1 Allows Monitoring and Measurement of Key IP Parameters. Designed for Monitoring Networks which Carry Multiprogram Transport Streams (MPTS) or Single Program Transport Streams (SPTS) over Gigabit Ethernet Networks. MTM400 Opt. GE Provides:
- Simultaneous Monitoring of Both IP and MPEG Layers to Enable Rapid Fault Isolation
- Comprehensive Confidence Monitoring of Video over IP with Optional Gigabit Ethernet Electrical and Optical Interfaces, IP Protocol Support Including UDP, RTP with Internet Group Management Protocol (IGMP), Address Resolution Protocol (ARP), and Internet Control Message Protocol (ICMP remote ping)
- For Detailed Information on the MTM400 MPEG over IP Gigabit Ethernet Real Time Monitor, See the Separate Datasheet 2AW-20409
- Comprehensive Confidence Monitoring at the RF Modulated Layer with Optional COFDM, 8VSB, Turbo 8PSK, QPSK (L Band), and QAM Interface MER, BER, and Constellation Displays
- Critical RF Measurements, MER, and EVM Provide Early Indication of Signal Degradation before Any Picture Impairment is Visible to the End Customer without Additional Costly RF Test Equipment (MER up to 37 dB typical)
- MTM400 with IP or RF Interface can Switch between IP or RF Monitoring and Transport Stream Monitoring within the One Probe
- DPI (SCTE-35) Local Content Insertion Monitoring
- DigiCipher® II (DCII) Protocol Support
- User-defined Template Monitoring Option to Ensure Right Content at the Right Place at the Right Time while Content Ratings Checking Ensures Only Appropriate Content Broadcast
- Remote Recording Allows Capture and Analysis of Stream Events for Expert Offline Analysis to Diagnose Difficult and Intermittent Problems, Requiring No Engineer Site Visits
- Scalable, Upgradeable Monitoring Capability Provides Extended Confidence Monitoring, where You Buy the Capability You Need when You Need It
- In-field Upgrades Minimizes Upgrade Time
- Simple User Interface Minimizes Staff Familiarization Time
Applications
- Contribution and Primary Distribution
- Terrestrial Distribution
- Cable Head-end Monitoring
- DTH or Network Operator Satellite Uplink Monitoring
- IPTV
- Edge Network Monitoring
- ASI to RF
- IP to RF (Requires two MTM400 units)
- IP to ASI
*1 Separate data sheet is available.
Technical Overview
The MTM400 is a real-time MPEG Transport Stream monitor. The MTM400 provides a complete solution for transmission monitoring of MPEG Transport Streams over RF, IP, and ASI interfaces.
The MTM400 uses a single Transport Stream processor platform packaged in a 1 RU rackmount chassis to provide monitoring of a Transport Stream at data rates up to 155 Mb/s*2. The platform is used to provide an extended confidence monitoring product that, with the addition of software options, provides diagnostic monitoring capabilities.
The extended confidence monitor provides the key MPEG tests; this basic level of functionality and low cost enables widespread deployment throughout a transmission network, facilitating rapid fault isolation. The diagnostic monitoring options provide more in-depth analysis of the MPEG Transport Stream including recording capability, PSI/SI/PSIP/ARIB analysis, and unique user-defined template tests to ensure right content, right place, right time. Deployed at key network nodes, the MTM400 equipped as a diagnostic monitor enables the cause of faults to be pinpointed and solved.
Optional IP and RF confidence monitoring interfaces including Gigabit Ethernet, COFDM, 8VSB, Turbo 8PSK, QPSK (L Band), and QAM are available. RF interfaces allow the MTM400 to receive RF inputs and display key RF monitoring parameters including MER, BER, and constellation displays before demodulating the signal to provide measurements on the health of the Transport Stream. Channel polling allows up to 200 channels to be polled sequentially from either the IP or the RF interface*1.
The polling capability for the MTM400 probe, combined with RF and IP interfaces, allows up to 200 RF channels or IP sessions (discovering up to 500 IP sessions) to be monitored in a repeating cyclic measurement process. Control and configuration of the polling is undertaken using flexible XML scripting. This polling ability makes a single MTM400 probe a broader tool, monitoring large numbers of network points in a time-sampled measurement mode.
The MTM remote user interface provides a summary screen for MPEG Transport Stream thumbnails and video metadata support for confidence monitoring. A full set of APIs is available to support displaying this information within network management platforms. This includes video walls that can display up to the full transmitted resolution of the video stream.
*1 Separate data sheet is available.
*2 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Depth of stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.
Flexible and Upgradeable
The MTM400 provides a flexible solution with an upgrade path, including diagnostic monitoring features that enable customers to build a cost-effective monitoring system to suit their individual requirements. Diagnostic capability can be added to the key monitoring points where Transport Streams are manipulated while extended confidence monitoring probes can be installed throughout the network:
- Triggered recording enables problems to be captured and analyzed in greater depth using offline analysis tools such as the Tektronix MPEG Test System Standalone Software*1
- PSI/SI/PSIP/ARIB SI Analysis and repetition rate graphing allows broadcasters to determine that the system information is present and correct in the Transport Stream
- Automatic Template Generation: Simple automated template generation from reference stream for exception monitoring. Template testing checks a number of key parameters to ensure that the Transport Stream has been constructed as the broadcaster intended. These parameters include the Transport Stream ID and Network ID, the number of programs in the multiplex, that each program has all of its components (Video, Audio, Data, Teletext, Subtitles) and Conditional Access (CA) status
- Bit rate testing determines whether PIDs, programs, services, or user-defined groups of PIDs are within user-definable limits to ensure correct multiplex operation. Tektronix-proprietary PID variability test gives indication of PID bit rate variation to assess effects of statistical multiplexing
- In-depth PCR analysis with graphical results views enable timing and Jitter measurements to be made to ensure correct operation of the network
- Service logging enables verification of service-level agreements to ensure that contractual obligations are met
- Offline analysis software applications for in-depth deferred-time analysis of streams captured using the MTM400 gives Tektronix the most powerful MPEG monitoring diagnostics available in the world today*3
*3 MTS400 Series MPEG Test System offline software tools are available for use with the MTM400. These are standalone software applications intended to run on the customer's control PC. Separate data sheet is available.
Applications
Contribution and Primary Distribution
Digital video contribution and distribution networks carry compressed video from many origination points to multiple delivery points over limited bandwidth links. Delivery of the right content at the right place at the right time is key to efficient network operation and customer satisfaction. Failure to deliver video services at the appropriate Quality of Service (QoS) leads to potential loss of revenue if video content is not delivered per the service-level agreement.
- MTM400’s low-cost extended confidence monitoring enables widespread deployment
- High bit rate capability, up to 155 Mb/s*2, for monitoring Transport Streams carried over GbE/ATM/OC3/SDH
- Bit rate testing and logging enables bandwidth usage to be monitored and Service-level Agreements to be verified
*2 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Depth of stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.
Cable Head-end Monitoring

QAM signal monitoring
Cable companies need to verify content accuracy at multiple unmanned head-end sites as operations are centralized. Budgets are tight and resources are limited. MTM400 solves these issues:
- The MTM400 is a cost-effective solution which can be used for unattended operation for unmanned regional head-ends
- Network monitoring units linked to central operations center reduces manpower requirements
- Comprehensive coverage of QAM Annex A/B/C RF interfaces allows cost-effective multichannel, multilayer monitoring
- Selection of PLL and AFC characteristics of the QAM interface enables constellation analysis on signals that are too poor for normal operation
Terrestrial Distribution

COFDM QAM64 Constellation

COFDM Channel C/N
Terrestrial broadcasters need to verify accuracy of content at unmanned transmitter sites. They need to check for errors, troubleshoot problems, and capture errors for offline investigation.
- The MTM400 is designed for 24×7 unattended operation
- Low-cost extended confidence monitoring enables widespread deployment
- Centralized, networked operation minimizes staffing requirements
- Remote stream capture means engineers do not have to visit the site
- COFDM and 8VSB RF terrestrial interfaces allow monitoring at the transmitter site or remote off-air monitoring
DTH or Network Operator Satellite Uplink Monitoring
Large numbers of channels may be monitored by limited personnel. A fault on a single signal could result in great customer dissatisfaction and churn. Errors in the stream or incorrect content must be identified before large numbers of viewers are affected. Therefore, operators need to monitor both before and after modulation.
- The cost-effective MTM400 solution provides low cost per stream
- QPSK (L Band) and Turbo 8PSK RF interfaces allow a stream to be monitored both at the ASI/SMPTE310M interface and the RF interface by switching between the two
Measurement Functions
MTM400 Extended Confidence Monitor in Standard Configuration

- MPEG-2, DVB (TR 101 290), ATSC, and ISDB supported
- TR 101 290 Priority 1, 2, and 3 measurements*4 in accordance with the techniques specified in TR 101 290
- Continuity count displayed on a per PID or per TS basis
- Bit rate measurement in accordance with the methodology specified in TR 101 290 MGB2
- Maximum input Transport Stream bit rate up to 155 Mb/s*2
- SFN measurements according to TR 101 290
- Packet size detection
- Error log
- Status of all tests and measurements available through SNMP MIB with support for SNMP traps*5
MTM400 stream testing
*2 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Depth of stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.
*4 Except T-STD buffer model analysis.
*5 Programmers Guide is available on request with full SNMP MIB and HTTP interface documentation.
Diagnostic Monitoring Options



- Triggered recording with user-definable pretriggered buffering and up to 160 MB available storage
- PSI/SI/PSIP/ARIB SI Analysis and repetition rate graphing. Transport Stream structure view with ability to drill down to examine tables and service contents plus real-time graphical representation of table repetition rates
- Template testing (for user-defined service plan testing). User-definable tests with scheduled template updating
- Bit rate testing on a per PID, program, or user-defined groups of PIDs basis
- In-depth timing analysis with graphical results views of:
- PCR_OJ (overall Jitter)
- PCR_AC (accuracy)
- PCR_FO (frequency offset)
- PCR_DR (drift rate)
- PTS Arrival interval
- Service logging of user-selected PIDs to record packet rates at user-definable intervals
- Channel polling allows up to 200 channels to be polled sequentially from either the IP or the RF interface
MTM400 SI tables
MTM400 template testing
MTM400 PCR inaccuracy analysis
Remote User Interface

The summary status screen provides a quick overview of the health and contents of the stream

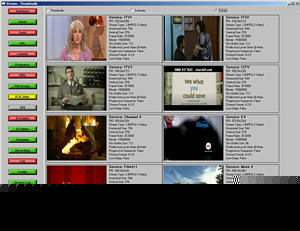

MTM400 thumbnails with additional inclusion of video metadata
The Remote User Interface (RUI) software is a Java applet downloaded from the MTM400. It is accessed through a web browser (Microsoft Internet Explorer with Microsoft Virtual Machine installed) on any networked personal computer.
The interface initially displays a main status view with menu buttons to access either stream status summary or device status summary. The stream status summary provides an overview of the health and contents of the stream with the ability to access all available tests and measurements licensed for the unit. Summaries can be focused on program content, SI content, or on all PIDs.
Characteristics
Power Requirements
Power Consumption (nominal) - 40 VA.
Voltage - 100 to 240 V.
Frequency - 50/60 Hz.
Monitoring
Data Rate
Maximum Data Rate - 155 Mb/s*6.
Minimum Data Rate - 250 Kb/s.
*6 Maximum Transport Stream bit rate is dependent on Transport Stream content and depth of analysis being performed. Stream analysis is handled gracefully if SI/PSIP max content is exceeded to ensure critical measurements continue to be performed.
TR 101 290 Tests and Measurements
1st Priority Measurements | 2nd Priority Measurements | 3rd Priority Measurements |
---|---|---|
1.1 Ts_sync_loss | 2.1 Transport error | 3.1a NIT_actual_error |
1.2 Sync_byte_error | 2.2 CRC_error | 3.1b NIT_other_error |
1.3a PAT_error_2 | 2.3a PCR_repetition_error | 3.2 SI repetition error |
1.4 Continuity_count_error | 2.3b PCR_discontinuity_indicator_error | 3.4a Unreferenced PID |
1.5a PMT_error_2 | 2.4 PCR_accuracy_error | 3.5a SDT_actual_error |
1.6 PID_error | 2.5 PTS_error | 3.5b SDT_other_error |
| 2.6 CAT_error | 3.6a EIT_actual_error |
|
| 3.6b EIT_other_error |
|
| 3.6c EIT_PF_error |
|
| 3.7 RST_error |
|
| 3.8 TDT_error |
MPEG over Gigabit Ethernet (Gigabit Ethernet IP Option GE)
Characteristic | Description |
---|---|
Interconnect Port Options | |
Opt. GE | Gigabit Ethernet Interface with 10/100/1000Base-T RJ45 electrical port |
Optical SFP Modules | Plug into MTM400 Opt. GE to provide optical connectivity |
Opt. SX | 1000Base-SX Short-wavelength optical port with LC connector for MTM400 Gigabit Ethernet Interface (Multi Mode 850 nm) |
Opt. LX | 1000Base-LX Long-wavelength optical port with LC connector for MTM400 Gigabit Ethernet Interface (Single Mode 1310 nm) |
Opt. ZX | 1000Base-ZX Optical port with LC connector for MTM400 Gigabit Ethernet Interface (Single Mode 1550 nm) |
Maximum Data Rate | Line rate |
ASI Output | ASI compliant with specification EN 50083-9 ASI smoothing can be activated to compensate for bursty IP traffic |
Protocol Stack Support | IPv4 support UDP/IP/Ethernet UDP/IP/VLAN/Ethernet RTP/UDP/IP/Ethernet RTP/UDP/IP/VLAN/Ethernet |
Alarms | User-definable thresholds for: (1) Errored packets (2) Dropped packets (3) Packet interarrival time |
Control | Controls: (1) Line select (optical, electrical rate) (2) Filters for MAC, IP, Port (3) Protocol control for ARP, RTP, IGMP, and VLAN |
RTP Support | Indicate out-of-order packets Indicate dropped packets |
Multicast and Control Support | IGMP v2 support ARP ICMP (inbound and outbound ping) |
IP Packet Support | 7 Transport Stream packets per IP packet FEC (FEC is parsed but is not processed) |
Session Support | Discovery of all sessions/flows on the link with RTP/UDP and TS present indicator, session bit rate monitoring, and IP packet error status of all sessions |
Display Features |
|
Statistics | Statistics: (1) Static IP header contents (2) Total bit rate for all Ethernet traffic (3) Instantaneous TS bit rate for selected IP session (4) Errored packets (5) Dropped packets |
Graphs | (1) IP session TS bit rate (2) Select IP address and port number from a tabular sessions list (sessions graph) (3) IP packet interarrival time of selected IP session Min, Max, and Average (trend graphs) |
COFDM Interface Characteristics (Option CF)
Characteristic | Description |
---|---|
Input Frequency Range | 50 MHz to 858 MHz in 166.7 or 62.5 kHz steps |
Tuning Accuracy | Better than ±50 ppm typical |
Channel Bandwidth | 6 MHz, 7 MHz, and 8 MHz (SW selectable) |
Connector Style | F Type with BNC adaptor |
Input Termination Impedance | 75 Ω nominal |
Input Return Loss | 7 dB typical 50 MHz to 858 MHz |
Rx Lock Status | Indicated by LED on rear panel and by the UI |
Modulation Scheme Supported | QPSK (4QAM), 16QAM, and 64QAM modulation |
Transmission Modes | 2K carriers and 8K carriers |
Hierarchical Modes | All hierarchies are be supported, including no hierarchy, and alpha = 1, 2, and 4 |
Viterbi Puncture Rates | 1/2, 2/3, 3/4, 5/6, 7/8 |
Guard Interval | 1/32, 1/16, 1/8, 1/4 |
Spectrum Polarity | The receiver will operate with both inverted and normal spectral polarity |
Input Signal Amplitude Range | QPSK (4QAM): -85 dBm to -10 dBm (24 dBuV to 99 dBuV) typical 16QAM: -80 dBm to -10 dBm (29 dBuV to 99 dBuV) typical 64QAM: -72 dBm to -15 dBm (37 dBuV to 94 dBuV) typical |
RF Measurements | |
Carrier Offset | Carrier offset is measured from the tuned channel frequency to an accuracy of ±10 ppm typical |
Signal to Noise Ratio (SNR) | Display Range: 6 dB to 40 dB for QPSK (4QAM) 11 dB to 40 dB for 16QAM 16 dB to 40 dB for 64QAM Resolution: 1 dB Accuracy: ±1 dB to 30 dB SNR (measured at -30 dBm in high-resolution mode) typical |
EVM (Error Vector Magnitude) | Display Range: 1% to 30% RMS, QPSK 1% to 20% RMS, 16QAM 1% to 8.5% RMS, 64QAM Resolution: 0.1% |
MER (Modulation Error Ratio) with Equalizer | Both MER Peak and MER Average are displayed as measured across all carriers Display Range: 6 dB to 37 dB for QPSK (4QAM) 11 dB to 37 dB for 16QAM 16 dB to 37 dB for 64QAM Resolution: 0.1 dB Accuracy: ±1 dB to 30 dB (measured at -30 dBm in high-resolution mode) typical |
Constellation | The RF constellation is displayed on the UI |
Channel Impulse Response | Measurement of channel impulse response and SFN delay |
Channel Spectral Response | Active receive channel spectrum, RF level vs. frequency |
Bit Error Ratio (BER) | Pre FEC, BER, and Error Sec BER values are displayed |
Post Reed Solomon BER | Post RS BER (Uncorrectable Error Count) displayed |
Transport Error Flag (TEF) | Alarm generated on detection of a TEF |
8VSB Interface Characteristics (Option VS)
Characteristic | Description |
---|---|
Input Frequency Range | 54 MHz to 860 MHz, VHF/UHF channels 2 to 69 (to include low VHF frequencies) |
Input Signal Level | -72 dBm to -6 dBm (-23 dBmV to +43 dBmV) typical |
Modulation Format | 8VSB in accordance with ATSC A/53B |
Receiver Bandwidth | 6 MHz |
Input Termination Impedance | 75 Ω nominal |
Connector Type | F Type connector |
Input Return Loss | 5 dB typical |
RF Measurements | |
RF Lock | RF lock is indicated by a LED on the rear panel and a status indicator on the UI |
Input Level | Range: -72 dBm to -2 dBm -23 dBmV to +47 dBmV relative to 75 Ω Resolution: 1 dB Accuracy: ±3 dB up to -6 dBm input level typical |
Error Vector Magnitude (EVM) | Display Range: 3% to 12.5% RMS Resolution: 0.1% typical |
Equivalent MER (Modulation Error Ratio) | Display Range: 15 dB to 36 dB Resolution: 1 dB Accuracy: ±1 dB for MER <25 dB typical ±3 dB for MER 25 dB to 32 dB typical |
Signal to Noise Ratio (SNR) | Display Range: 15 dB to 35 dB Resolution: 1 dB Accuracy: ±1 dB for SNR <25 dB ±3 dB for SNR 25 dB to 35 dB typical |
Bit Error Ratio (BER) | Pre FEC, SER, and Error Sec BER values displayed on UI |
QPSK (L-Band) Interface Characteristics (Option QP)
Characteristic | Description |
---|---|
Input Frequency Range | 950 MHz to 2150 MHz, step size of 1 MHz |
Input Signal Amplitude Range | -60 dBm to -30 dBm for a CBER of <1e -6 |
Modulation Format | QPSK in accordance with ETSI EN 300 421 |
Modulated Baud Rate | 1 MBaud min, 45 MBaud max |
Viterbi Values Supported | 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
FEC | In accordance with ETSI EN 300 421 |
Connector Style | F - style |
Input Termination Impedance | 75 Ω nominal |
Input Return Loss | 10 dB min, 950 MHz to 2150 MHz typical |
Loopthrough Output Amplitude | -6 dB to +3 dB typical |
Loopthrough Output Reverse Isolation | 30 dB typical |
LNB Supply Voltage | Selectable; 13.0 V ±1.5 V or 18.0 V ±1.5 V |
LNB Supply Maximum Current | 200 mA maximum |
LNB 22 kHz Signalling Frequency | 17.6 kHz min, 26.4 kHz max (22 kHz ±20%) |
LNB 22 kHz Signalling Amplitude | 600 mVp-p nominal with 100 Ω load |
QPSK (L-Band) and Turbo 8PSK Interface Card (Option EP)
Characteristic | Description |
---|---|
Interface Option EP provides both QPSK (L-Band) and Turbo 8PSK interface and measurement capability. | |
Input Frequency Range | 950 MHz to 2150 MHz step size of 1 MHz |
Input Signal Amplitude Range | -60 dBm to -30 dBm for CBER <1e-6 |
Modulation Format | QPSK in accordance with ETSI EN 300 421 |
Modulated Baud Rate | 1 MBaud min, 30 MBaud max |
Viterbi Values Supported | 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
FEC | In accordance with ETSI EN 300 421 |
Turbo Viterbi Values Supported | 1/2, 2/3, 3/4, 5/6, 7/8 |
Turbo FEC | Turbo Code |
Connector Style | F - style |
Input Termination Impedance | 75 Ω nominal |
LNB Supply Voltage | Selectable; 13.0 V ±1.5 V or 18.0 V ±1.5 V |
LNB Supply Maximum Current | 200 mA maximum |
LNB 22 kHz Signaling Frequency | 17.6 kHz min, 26.4 kHz max (22 kHz ±20%) |
LNB 22 kHz Signaling Amplitude | 600 mVp-p nominal with 100 Ω load |
Modes Supported | Turbo QPSK, QPSK DSS, QPSK DCII, QPSK DVB |
RF Measurements | |
RF Lock | RF lock is indicated to the user by an LED on the rear panel and a status icon on the UI |
Input Level (Signal strength) | Range: -60 dBm to -30 dBm Resolution: 1 dBm Accuracy: ±5 dBm typical |
EVM (Error Vector Magnitude) | Display Range: ≤4.0% to ≥30.0% RMS Resolution: 0.1% |
MER (Modulation Error Ratio) with Equalizer | Display Range: 10 to 26 dB with Equalizer Resolution: 1 dB Accuracy: ±2 dB typical for range 10 to 20 dB |
SNR (Signal to Noise Ratio) | Display Range: 5 to 35 dB Resolution: 1 dB Accuracy: ±2 dB typical for range from 5 to 30 dB |
Pre Reed Solomon (RS) BER | Pre-RS BER is displayed on the UI |
Post RS BER and TEF (Transport Error Flag) | Post Reed Solomon BER (TEF ratio), TEF rate, and number of Transport Error Flags (TEF count) are displayed on the UI |
Constellation | The RF constellation is displayed on the UI |
Turbo 8PSK Interface Characteristics (Option EP)
Characteristic | Description |
---|---|
Input Frequency Range | 950 MHz to 2150 MHz in 100 kHz steps |
Modulation Format | Turbo 8PSK*7 |
Modulated Baud Rate | 1 MBaud min, 30 MBaud max |
Turbo Viterbi Values Supported | 2/3, 3/4 (2.05), 3/4 (2.1), 5/6, 8/9 |
Turbo FEC | Turbo Code |
Connector Style | F - style |
Input Termination Impedance | 75 Ω nominal |
LNB Supply Voltage | Selectable; 13.0 V ±1.5 V or 18.0 V ±1.5 V |
LNB Supply Maximun Current | 200 mA maximum |
LNB 22 kHz Signaling Frequency | 17.6 kHz min, 26.4 kHz max (22 kHz ±20%) |
LNB 22 kHz Signaling Amplitude | 600 mVp-p with 100 Ω load |
Modes Supported | Turbo 8PSK |
RF Measurements | |
RF Lock | RF lock is indicated to the user by an LED on the rear panel and a status icon on the UI |
Input Level (Signal strength) | Range: -60 dBm to -30 dBm Resolution: 1 dBm Accuracy: ±5 dBm typical |
EVM (Error Vector Magnitude) | Display Range: ≤4.0% to ≥30.0% RMS Resolution: 0.1% |
MER (Modulation Error Ratio) with Equalizer | Display Range: 10 to 26 dB with Equalizer Resolution: 1 dB Accuracy: ±2 dB typical for range 10 to 20 dB |
SNR (Signal to Noise Ratio) | Display Range: 5 to 35 dB Resolution: 1 dB Accuracy: ±2 dB typical for range from 5 to 30 dB |
Pre Reed Solomon (RS) BER | Pre-RS BER is displayed on the UI |
Post RS BER and TEF (Transport Error Flag) | Post Reed Solomon BER (TEF ratio), TEF rate, and number of Transport Error Flags (TEF count) are displayed on the UI |
Constellation | The RF constellation is displayed on the UI |
*7 Please note that the Turbo 8PSK option does not support non-turbo 8PSK (DVB-DSNG), or DVB-S2. For information, please contact Tektronix.
QAM Interface Characteristics (Options QA, QB2, QC)
Characteristic | QAM Annex A | QAM Annex B | QAM Annex C |
---|---|---|---|
Input Frequency Range | 51 MHz to 858 MHz, 62.5 kHz steps | 88 MHz to 858 MHz, 62.5 kHz steps | |
Modulation Format | 16QAM, 64QAM, 256QAM compliant with ITU J-83 and DVB-C ETS 300 429 | 64QAM, 256QAM compliant with ITU J-83*8 SCTE07 compliant | 16QAM, 64QAM, 256QAM compliant with ITU J-83 |
Modulation Baud Rate | 5 Mbaud/s min 6.952 Mbaud/s max | 5.057 Mbaud/s and 5.360 Mbaud/s | 5 Mbaud/s min 5.5 Mbaud/s max |
Input Signal Level | -59 dBm to -19 dBm (50 dBuV to 90 dBuV relative to 75 Ω), with a 16, 64, and 256 QAM input typical | -64 dBm to -19 dBm (45 dBuV to 90 dBuV relative to 75 Ω) with a 64 and 256 QAM input typical | -59 dBm to -19 dBm (50 dBuV to 90 dBuV relative to 75 Ω), with a 16, 64, and 256 QAM input typical |
Ultimate Modulation Error Ratio | 37 dB typical | ||
Receiver Bandwidth | 8 MHz nominal | 6 MHz nominal | |
Input Termination Impedance | 75 Ω nominal | ||
Input Return Loss | -6 dB min, -10 dB typical, 51 MHz to 858 MHz | ||
Loopthrough Power Gain | 1.5 dB to 4 dB typical, 51 MHz to 858 MHz | N/A | N/A |
Loopthrough Noise Figure | 8 dB typical | N/A | N/A |
Loopthrough Output Return Loss | >10 dB typical | N/A | N/A |
*8 Level 1 and Level 2 interleaving support compliant with all ITU J-83 Annex B, excluding I, J = 128,7 and 128,8.
QAM Annex A/C Measurements (Option QA or QC)
Characteristic | Description |
---|---|
RF Lock | RF lock is indicated by a LED on the rear panel and a status icon on UI |
EVM (Error Vector Magnitude) | Display Range for 64 QAM: ≤1% to ≥5% RMS Display Range for 256 QAM: ≤1% to ≥2.5% RMS Resolution: 0.1% Accuracy: Within 20% of reading for S/N >25 dB typical |
Ultimate MER (Modulation Error Ratio) | 38 dB typical |
Post RS BER and TEF (Transport Error Flag) | Post Reed Solomon indicative BER (uncorrectable error count) and number of Transport Error Flags are displayed on the UI |
Constellation | The RF constellation is displayed on the UI |
QAM Annex B Measurements (Option QB2)
Characteristic | Description |
---|---|
RF Lock | RF lock is indicated by a LED on the rear panel and a status icon on UI |
Input Level (Signal strength) | Range: -64 dBm to -19 dBm Resolution: 1 dBm Accuracy: ±3 dBm typical |
EVM (Error Vector Magnitude) | Display Range for 64 QAM: ≤1% to ≥5% RMS Display Range for 256 QAM: ≤1% to ≥2.5% RMS Resolution: 0.1% Accuracy: Within 20% of reading for S/N >25 dB typical |
MER (Modulation Error Ratio) with Equalizer | Display Range for 64 QAM: 22 dB to 37 dB Display Range for 256 QAM: 28 dB to 37 dB Resolution: 0.1 dB Accuracy: ±1 dB for MER <25 dB ±3 dB for MER 25 dB to 34 dB typical |
SNR | Display Range for 64 QAM: 22 dB to 37 dB Display Range for 256 QAM: 28 dB to 37 dB Resolution: 1 dB Accuracy: ±1 dB for MER <25 dB ±3 dB for MER 25 dB to 34 dB typical |
BER | Pre FEC, SER, and Error Sec BER values are displayed |
Post RS BER and TEF (Transport Error Flag) | Post Reed Solomon BER (uncorrectable error count) and number of Transport Error Flags are displayed on the UI |
Constellation | The RF constellation is displayed on the UI |
Environmental
Characteristic | Description |
---|---|
Temperature | |
Operating | +5 °C to +40 °C |
Nonoperating | -10 °C to +60 °C |
Humidity | |
Operating | Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C |
Nonoperating | 10% to 95% relative humidity, noncondensing |
Altitude | |
Operating | 0 m to 3000 m (9800 ft.) |
Nonoperating | 0 m to 12000 m (40000 ft.) |
Random Vibration | |
Operating | 5 to 500 Hz, GRMS = 2.28 |
Nonoperating | .5 to 500 Hz, GRMS = 0.27 |
Functional Shock | |
Operating | 30 G, half sine, 11 ms duration |
Electromagnetic Compatibility | |
EC Declaration of Conformity | Meets EN55103. Electromagnetic environment E4 |
Australia / New Zealand Declaration of Conformity | Meets AS/NZS 2064 |
FCC | Emissions are within FCC CFR 47, Part 15, Subpart B, Class A limits |
Safety | Meets 73/23/EEC, EN61010-1, UL3111-1 and CAN/CSA 22.2 No. 1010.1-92, IEC61010-1 |
Physical Characteristics
Dimension | mm | in. |
---|---|---|
Height | 44 | 1.73 |
Width | 430 | 17.13 |
Depth | 600 | 23.62 |
Weight*9 | kg | lb. |
Net | 6.0 | 13.3 |
Shipping | 9.0 | 19.7 |
Required Clearance | mm | in. |
Top | 0 | 0 |
Bottom | 0 | 0 |
Left Side | Standard 19 in. rackmount | |
Right Side | Standard 19 in. rackmount | |
Front | Clearance for handles required | |
Rear | Clearance for connectors required |
*9 Weight does not include optional interface cards.
Ordering Information
MTM400
Single-stream extended confidence monitor packaged in 1RU chassis.
Includes: 1RU chassis fitted with Transport Stream processor card, manual, rack slides, power cord, and license key certificate.
Options
Opt. 01 - Triggered recording capability up to 160 MB.
Opt. 02 - Transport Stream service information analysis (PSI/SI/PSIP/ARIB view).
Opt. 03 - Template testing (for user-defined service plan testing).
Opt. 04 - In-depth PCR analysis with graphical result views.
Opt. 05 - Bit rate testing functionality.
Opt. 06 - Service logging.
Opt. 07 - IP/RF polling functionality.
Opt. CF - COFDM Interface.
Opt. QB2 - QAM Annex B Level 1 and Level 2 Interface.
Opt. EP - 8PSK/QPSK Interface.
Opt. VS - 8VSB Interface.
Opt. QA - QAM Annex A Interface.
Opt. QC - QAM Annex C Interface.
Opt. QP - QPSK Interface.
Opt. GE - Gigabit Ethernet Interface with 10/100/1000Base-T RJ45 electrical port.
Opt. SX - 1000Base-SX Short-wavelength optical port with LC connector for MTM400 Gigabit Ethernet Interface (Multi Mode 850 nm).
Opt. LX - 1000Base-LX Long-wavelength optical port with LC connector for MTM400 Gigabit Ethernet Interface (Single Mode 1310 nm).
Opt. ZX - 1000Base-ZX Optical port with LC connector for MTM400 Gigabit Ethernet Interface (Single Mode 1550 nm).
International Language Options
Opt. L0 - English User Guide.
Opt. L5 - Japanese User Guide.
Complementary Products
MTS4SA - Standalone Deferred Time Software package.
Opt. TSCL - DVB/ATSC/ARIB TS Compliance Analyzer Software (TS file size limited to 192 MB). For full details see separate data sheet.
Service
Opt. R3 - Repair Service 3 Years.
Opt. R5 - Repair Service 5 Years.
Power Connections
Opt. A0 - North America power plug.
Opt. A1 - Universal EURO power plug.
Opt. A2 - United Kingdom power plug.
Opt. A3 - Australia power plug.
Opt. A4 - 240 V North America power plug.
Opt. A5 - Switzerland power plug.
Opt. A6 - Japan power plug.
Opt. A10 - China power plug.
Opt. A99 - No power cord or AC adapter.
Field Upgrade Kits
MTM4FQA - Field upgrade kit to add QAM Annex A Interface to an existing probe.
MTM4FQC - Field upgrade kit to add QAM Annex C Interface to an existing probe.
MTM4FQP - Field upgrade kit to add QPSK Interface to an existing probe.
MTM4FCF - Field upgrade kit to add COFDM Interface.
MTM4FQB2 - Field upgrade kit to add QAM Annex B Interface.
MTM4FEP - Field upgrade kit to add 8PSK/QPSK Interface.
MTM4FVS - Field upgrade kit to add 8VSB Interface.
MTM4UP Opt. 01 - Field upgrade kit to add triggered recording capability up to 160 MB.
MTM4UP Opt. 02 - Field upgrade kit to add Transport Stream service information analysis (PSI/SI/PSIP/ARIB view).
MTM4UP Opt. 03 - Field upgrade kit to add template testing (for user-defined service plan testing).
MTM4UP Opt. 04 - Field upgrade kit to add in-depth PCR analysis with graphical result views.
MTM4UP Opt. 05 - Field upgrade kit to add bit rate testing functionality.
MTM4UP Opt. 06 - Field upgrade kit to add service logging.
MTM4UP Opt. 07 - Field upgrade kit to add IP/RF polling functionality
MTM4FGE - Gigabit Ethernet upgrade kit for MTM400. Requires appropriate options.
Note 1: At least one option must be ordered.
Note 2: Opt. GE is required if MTM400 does not already have GigE capability.
MTM4FGE Opt. GE - Upgrade kit to add Gigabit Ethernet Interface with 10/100/1000Base-T RJ45 electrical port to MTM400.
MTM4FGE Opt. SX - Upgrade kit to add 1000Base-SX Short-wavelength optical port with LC connector (Multi Mode 850 nm) for MTM400 Gigabit Ethernet Interface.
MTM4FGE Opt. LX - Upgrade kit to add 1000Base-LX Long-wavelength optical port with LC connector (Single Mode 1310 nm) for MTM400 Gigabit Ethernet Interface.
MTM4FGE Opt. ZX - Upgrade kit to add 1000Base-ZX optical port with LC connector (Single Mode 1550 nm) for MTM400 Gigabit Ethernet Interface.
MTM4FGE Opt. IFC - One-time install of all selected options and calibration for one product.
