MDO4000C Capabilities Not Available on Keysight N9322C

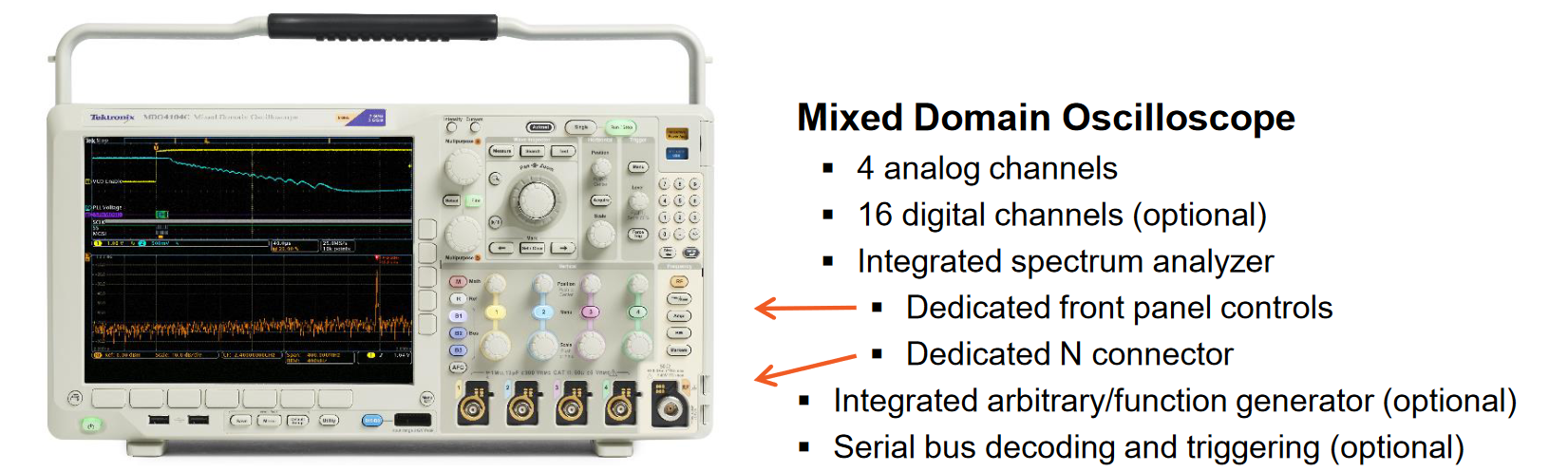

- 4 analog channels and 16 digital channels
- Function generator and DVM
- Serial / Parallel bus decode
- Capture bandwidth wide enough for modern RF signals

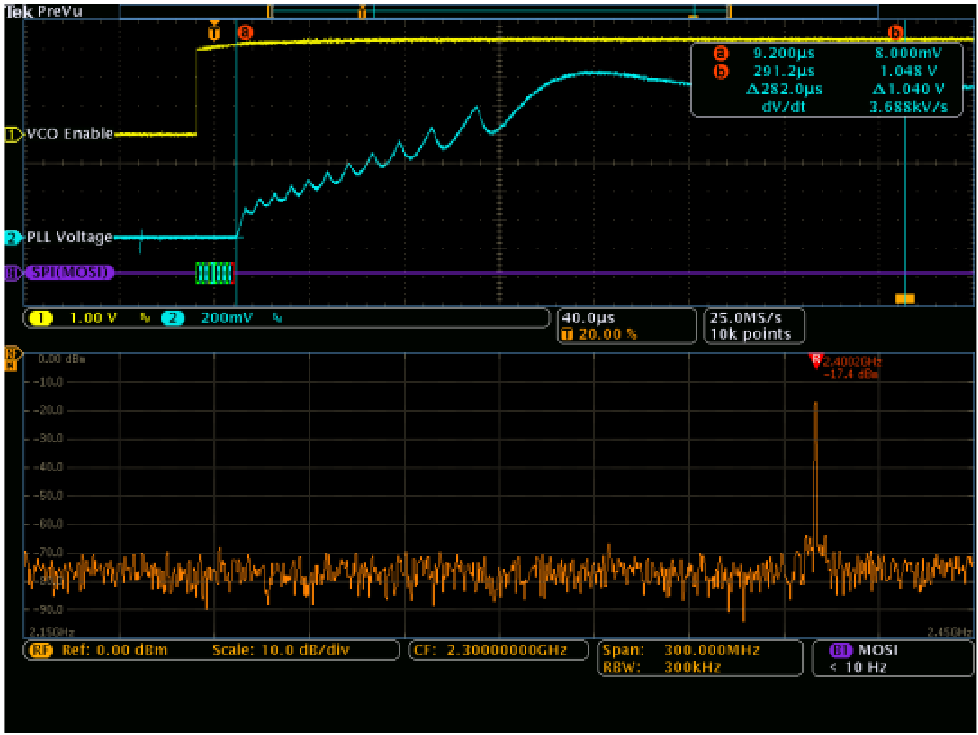

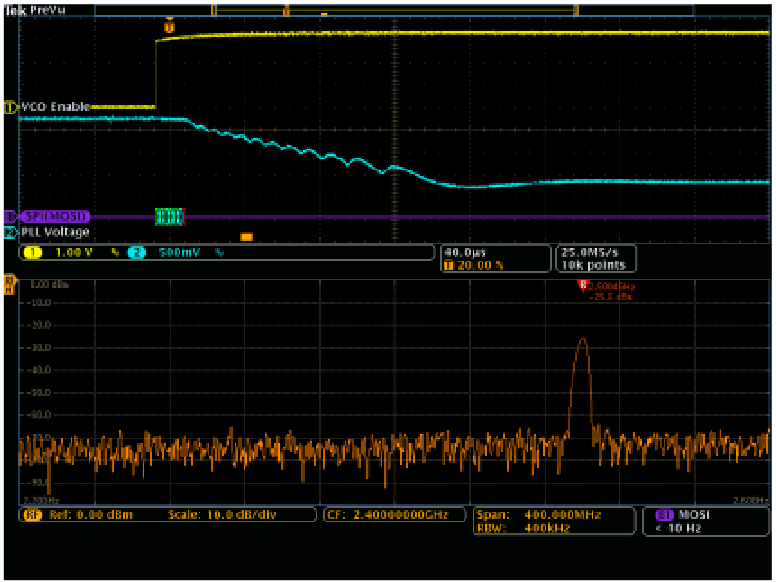

- Time-correlated views of analog, digital, serial / parallel buses and RF signals for complete system visibility. RF signals include:

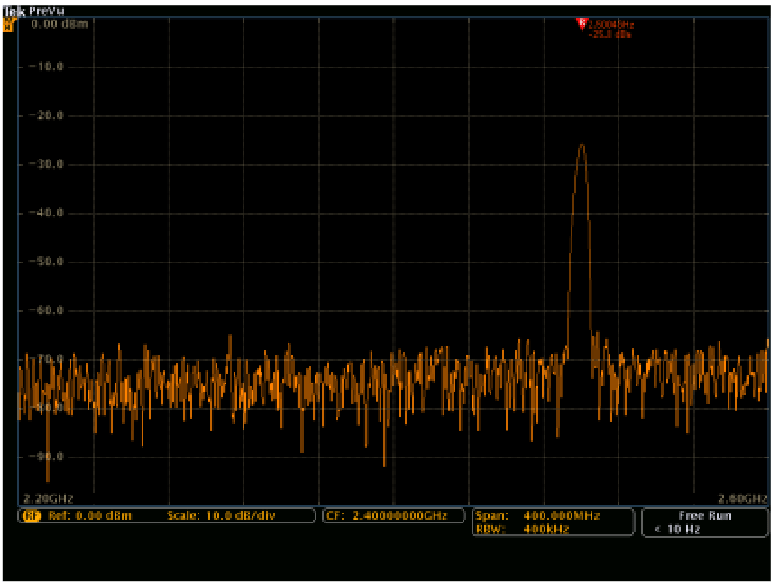

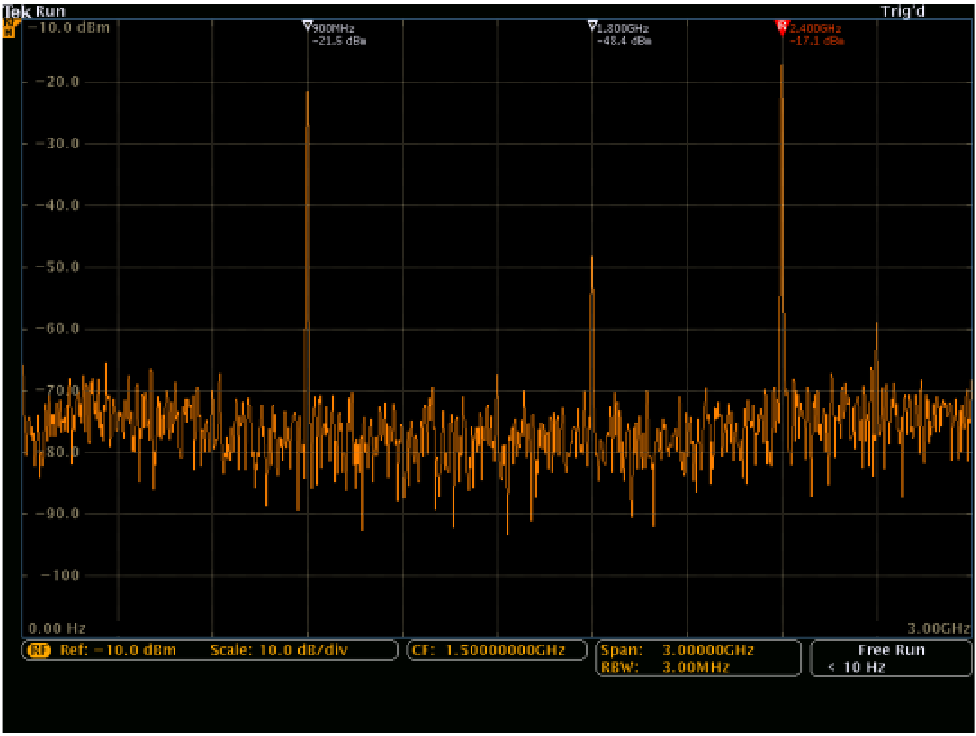

- Spectrum shown in Frequency Domain
- Amplitude, Frequency, and Phase vs. Time traces shown in Time Domain

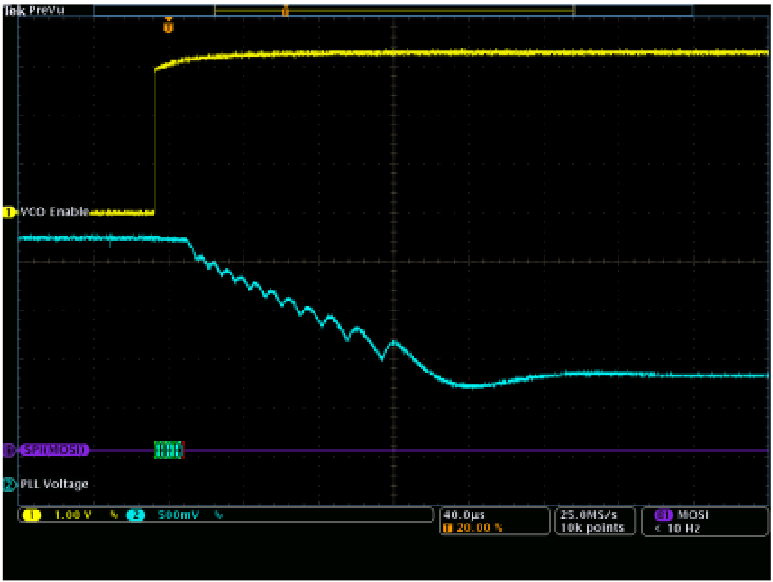

The most common application is making timing measurements from control logic (often serial or parallel bus commands) to when the RF output changes take effect.
