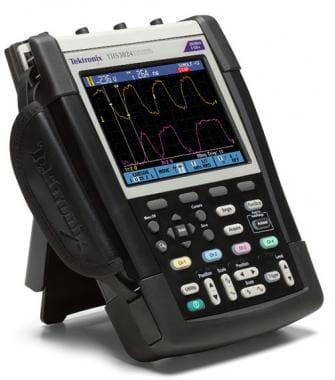

THS3014

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

Input coupling

AC, DC

Input impedance

1 MΩ ±1%, 14 pF ±2 pF

Input sensitivity range

2 mV/div to 100 v/div

Vertical resolution

8 bits

DC gain accuracy

±2.1% of reading + 0.04 × range/div for 5 mV/div to 100 V/div

Max BNC input voltage

(1 MΩ) 300 V_rms CAT III from BNC signal to BNC shell

Max probe voltage (with standard THP0301-X probe)

300 V_rms CAT III from 10:1 probe tip signal to BNC and reference lead

Trace positioning

±4 divisions

Horizontal system

Delay time range

1 full screen (12 divisions) of pre-trigger or up to 100 screens (1,200 divisions) of post-trigger

Timing accuracy

±100 ppm + 0.04 div

Zoom

Horizontally expand or compress a live or stopped waveform

Trigger system

Input source

Oscilloscope channels 1, 2, 3, or 4. All input references isolated from each other and earth ground

Main trigger modes

Auto-level, Auto, Normal, and Single

Trigger coupling

DC, HF reject, Noise reject (reduces sensitivity)

Trigger sensitivity, internal DC coupled

0.5 divisions from DC to 5 MHz at >5 mV/div

THS3024

1 division >5 MHz to 200 MHz

THS3014

1 division >5 MHz to 100 MHz

Trigger level range

Any channel

±4.0 divisions

Trigger modes

Edge

Positive, negative, or dual slope on any input channel. Coupling includes DC, HF reject, and Noise reject

Pulse width

Trigger on channel 1, width of positive or negative pulses (glitches) that are >, <, =, or ≠ a specified period of time (resolution of 0.01 div with minimum time of 50 ns)

Event

Trigger on n-th occurrence of trigger (N selectable from 2 to 99)

Video

Trigger on channel 1, line number, all lines, odd, even, or all fields on NTSC, PAL, PAL plus, and SECAM signals

Non-interlaced

Trigger on channel 1, high-res non-interlaced video with line frequencies from 14 kHz to 65 kHz

Acquisition modes

Sample (default)

Acquire sampled values

Glitch detect

Captures high frequency or glitches as narrow as 8 ns from 5 μs to 120 s/div

Averaging

Selectable from 2, 4, 8, or 64 waveforms

Roll

Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 4 ms/div

Data recorder

Automatic data logging of 100 triggered records (screens) with date and time stamp. store internally or to a USB device

Waveform compare

Visually compare against user-definable reference waveforms or perform automatic pass or fail testing of 1 to 4 oscilloscope channels with data logging of test results

Automatic setup

Autoset

Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems

Autorange

Continuous auto-setup of vertical, horizontal, and trigger systems that track signal changes

Waveform measurements

Cursors

Time, freq (1/T), volts, watts, Rise/Fall time from any input channel or math waveform

Automatic measurements

21. Up to 4 can be displayed on-screen at any one time. Measurements include:

V DC, V AC_RMS, V AC+DC, V_PeakMax, V_PeakMin, Peak to Peak, A DC, A AC, A AC+DC, Frequency, Rise time (using cursors), Fall time (using cursors), Phase (between any 2 inputs), Positive pulse width, Negative pulse width, Positive duty cycle, Negative duty cycle, dBV, dBm into 50 Ω and 600 Ω

TrendPlot™

Records and graphically displays any 4 automatic measurements. store internally or to USB flash drive for recall and analysis

Waveform math

Arithmetic

Add, subtract, and multiply waveforms

FFT

Spectral magnitude. Set FFT vertical scale to Linear or Logarithmic, and FFT window to Automatic, Hamming, Hanning, or None

Display system

Display type

6 in. (153 mm) liquid-crystal color display

Display resolution

320 horizontal × 240 vertical pixels

Waveform style

Vectors (dot-join), Dots, Envelope, Variable persistence, Infinite persistence

Display format

YT and XY

Storage memory

Reference

4 user-definable reference traces

Waveform

Stores 30 internal oscilloscope records (4 traces each) with screen image and corresponding setup

Recording

Store 10 internal recordings that can be a 100-screen replay sequence, a roll-mode recording, or a TrendPlot™ measurement recording

Screen image

Store up to 9 internally or 256 .bmp images to an external USB storage drive ¹

¹Maximum USB memory size supported is 2 GB

Real-time clock

Time and date stamp of all stored data

Input/Output ports

USB host port

Supports USB mass storage devices

USB device port

Mini USB-B connector allows for communication/control of oscilloscope

Probe compensator output

Side-panel output

Amplitude

1.225 V_p-p

Frequency

500 Hz

Kensington-style lock

Side-panel security slot connects to standard Kensington-style lock

Software

OpenChoice® Desktop

Enables fast and easy communication between a Windows PC and the THS3000 Series. Transfer and save settings, waveforms, and screen images.

Power source

Battery

7 hour, 10.8 V rechargeable Li-Ion battery

Battery charging time

5 hours

Line power

AC power adapter/charger

Power source voltage

100 V to 240 V AC ±10%

Power source frequency

50 Hz to 60 Hz

Physical characteristics

Dimensions

Height

265 mm (10.5 in.)

Width

190 mm (7.5 in.)

Depth

70 mm (2.8 in.)

Weight

Net

2.2 kg (4.8 lb.)

Shipping (base model)

4.7 kg (10.4 lb.)

Shipping (TK model)

7.8 kg (17.1 lb.)

Environmental

Enclosure

IP 41 according to IEC60529S

Temperature

Operating

0 °C to +45 °C (with battery)

0 °C to +50 °C (without battery)

Nonoperating

–20 °C to +60 °C

Humidity

Operating

0 °C to 10 °C, noncondensing

10 °C to 30 °C, up to 95% relative humidity

30 °C to 40 °C, up to 75% relative humidity

40 °C to 50 °C, up to 45% relative humidity

Nonoperating

–20 °C to 60 °C, relative humidity, noncondensing

Altitude

Operating

Up to 3,000 m (9,843 ft.)

Nonoperating

Up to 12,000 m (39,370 ft.)

Vibration/Shock

Operating

Vibration (Sinusoidal): 3 g max, according to MIL-PRF-28800F, class 2

Shock: 30 g max, according to MIL-PRF-28800F, class 2

Nonoperating

Vibration (Random): 0.03 g2/Hz, according to MIL-PRF-28800F, class 2

Regulatory

Electromagnetic compatibility

EN 61326-1:2006, EN 61326-2-1:2006 for emission and immunity

Safety

UL61010-1:2004; CAN/CSA C22.2 No. 61010.1-04; EN61010-1:2001, Pollution degree 2; ANSI/ISA-82.02.01
