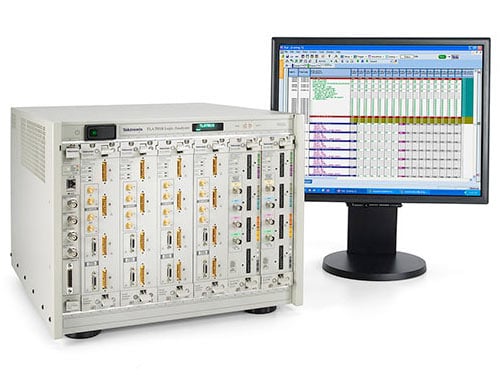

TLA7016

tla7000

索取报价

概述

技术指标

此产品已经停止销售，请与我们联系获得更多帮助。

TLA7012 and TLA7016 Mainframe specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

General characteristics

Instrument slots

TLA7012: Holds two TLA modules
TLA7016: Holds six TLA modules

Expansion capability

The TLA7000 Series mainframes can be used as either master or expansion mainframes (TL708EX 8-port Instrument Hub and Expander is required for 3-8 mainframes connected together using TekLink™ cable)

TLA7012: Up to eight TLA7012 mainframes can be used, providing support for up to 16 TLA modules (2,176 channels)
TLA7016: Up to eight TLA7016 mainframes can be used, providing support for up to 48 TLA modules (6,528 channels)

TLA7012 PC specifications

Operating system: Microsoft^® Windows^® 7 64-bit Ultimate

Processor: 2.7 GHz i5 Processor

Chipset: Intel^® QM77

Memory: Two (2) 4 GB DDR3 1600 MHz SODIMMs

Sound: Line In and Mic Out connectors

Removable hard drive: 500 GB, 3.5 in, SATA II, 7200 RPM

Optical drive: Internal 4.7 GB DVD±R/RW

External display: One DVI (2048 x 1536); one HDMI (1920 x 1200); one VGA (2048 x 1200)

Network port: Two (2) 10/100/1000 LAN with RJ-45 connector (Dual Gigabit Ethernet)

USB port: Seven (7); three (3) USB2 in front and four (4) USB3 in rear

TLA7012 integral controls

Front panel display

Size: 15 in. (38.1 cm) diagonal

Type: Active-matrix color TFT LCD with backlight

ion: 1024×768

Front panel: General-purpose knob with dedicated hotkeys and knobs for horizontal and vertical scaling and scrolling

Touchscreen: Available with Option 18

Integrated View (iView™) capability

TLA mainframe configuration requirements: GPIB-iView™ (Opt. 1C)
USB-iView™ (Opt. 2C)

Number of Tektronix oscilloscopes that can be connected to a TLA system: 1

External oscilloscopes supported: More than 100. For a complete listing of current supported oscilloscopes, please visit our website http://www.tek.com/iview.

TLA connections: USB, Trigger In, Trigger Out, Clock Out

Oscilloscope connections

GPIB-iView™ (Opt. 1C): GPIB, Trigger In, Trigger Out, Clock In (when available)
USB-iView™ (Opt. 2C): USB Device Port, Trigger In, Trigger Out

Setup: iView™ external oscilloscope wizard automates setup.

Data correlation: After oscilloscope acquisition is complete, the data is automatically transferred to the TLA and time correlated with the TLA acquisition data.

Deskew: The oscilloscope and TLA data is automatically deskewed and time correlated when using the iView™ external oscilloscope cable.

GPIB-iView™ (Opt. 1C) External oscilloscope cable length: 2 m (6.6 ft.)

USB-iView™ (Opt. 2C) External oscilloscope cable length: 2 m (6 ft.)

Symbolic support

Number of symbols/ranges: Unlimited (limited only by amount of virtual memory available on TLA)

Object file formats supported: IEEE695, OMF 51, OMF 86, OMF 166, OMF 286, OMF 386, COFF, Elf/Dwarf 1 and 2, Elf/Stabs, TSF (If your software development tools do not generate output in one of the above formats, TSF, or the Tektronix symbol file, a generic ASCII file format is supported. The generic ASCII file format is documented in the TLA online help). If a format is not listed, please contact your local Tektronix representative.

External instrumentation interface

System Trigger output: Asserted whenever a system trigger occurs (TTL-compatible output, back-terminated into 50 Ω)

System Trigger input: Forces a system trigger when asserted (adjustable threshold between 0.5 V and 1.5 V, edge sensitive, falling-edge latched)

External Signal output: Can be used to drive external circuitry from a module's trigger mechanism (TTL-compatible output, back-terminated into 50 Ω)

External Signal input: Can be used to provide an external signal to arm or trigger any or all modules (adjustable threshold between 0.5 V and 1.5 V, level sensitive)

Power

Power

Voltage range/frequency: 90-250 V AC at 45-66 Hz
100-132 V AC at 360-440 Hz
Input current: 7 A maximum at 90 V AC (70 A surge)
Power consumption: 750 W maximum

TLA7016 Voltage range/frequency

Ratings apply to mainframes with serial numbers B020000 and higher.

Configuration A, Maximum load 1000 W: 100 V_rmsto 120 V_rms, 50 Hz to 60 Hz and 115_rms, 400 Hz, 1450 W maximum
Configuration B, Maximum load 1000 W: 120 V_rms to 240 V_rms, 50 Hz to 60 Hz, 1900 W maximum

TL708EX

Voltage range/frequency: 100-240 V AC at 50-60 Hz
Input current: 2 A maximum at 100 V AC
Power consumption: 200 W maximum

Environmental

Temperature

Operating: +5 °C to +45 °C
Nonoperating: -20 °C to +60 °C

Humidity

20% to 80%

Operating: ≤30 °C; 80% relative humidity (29 °C maximum wet-bulb temperature)
Nonoperating: 8% to 80% (29 °C maximum wet-bulb temperature)

Altitude: Operating: -1,000 ft. to 10,000 ft. (-305 meters to 3,050 meters)

Safety: UL3111-1, CSA1010.1, EN61010-1, IEC61010-1

TLA7012 Portable Mainframe physical specifications

Dimensions

Height: 295 mm (11.6 in.)
Width: 451 mm (17.75 in.)
Depth: 460 mm (18.1 in.)

Weight

Net (without modules): 14 kg (30 lb.)
Shipping (typical): 27 kg (59 lb.)

TLA7016 Benchtop Mainframe physical specifications

Dimensions

Height: 350 mm (13.7 in.)
Width: 425 mm (16.7 in.)
Depth: 673 mm (26.5 in.)

Weight

Net (without modules): 25 kg (55 lb.)
Shipping (typical: 51.8 kg (115 lb.)

TLA708EX 8-port instrument Hub and expander physical specifications

Dimensions

Height: 51 mm (2.0 in.)
Width: 455 mm (17.5 in.)
Depth: 305 mm (12.0 in.)

Weight

Net: 3 kg (6 lb.)
Shipping: 5 kg (11 lb.)

TLA7BBx logic analyzer module specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all TLA7BBx models unless noted otherwise.

General specifications

Number of channels

All channels are acquired including clocks

TLA7BB2: 68 channels (4 are clock channels)
TLA7BB3: 102 channels (4 are clock and 2 are qualifier channels)
TLA7BB4: 136 channels (4 are clock and 4 are qualifier channels)
Channel grouping: No limit to number of groups or number of channels per group (all channels can be reused in multiple groups)

Module merging: Up to five 68-channel, 102-channel, or 136-channel modules can be "merged" to make up to a 680-channel module. Merged modules exhibit the same depth as the lesser of the five individual modules.
Word/setup-and-hold/glitch/transition recognizers span all five modules. Range recognizers limited to three-module merge. Only one set of clock connections is required.

Time stamp: 54 bits at 20 ps resolution (>4 days duration)

Clocking/Acquisition modes: Asynchronous and synchronous. 20 ps (50 GHz) MagniVu high-speed timing is available simultaneous with all modes

Number of mainframe instrument slots required per TLA series module: 2

Data input with P6800 or P6900 series probes

Capacitive loading

P6900 series: 0.5 pF clock/data
P6800 series: <0.7 pF clock/data
P6810 (In group configuration): 1.0 pF

Threshold selection range: From -2.0 V to +4.5 V in 5 mV increments
Threshold presets include TTL (1.5 V), CMOS (1.65 V), ECL (-1.3 V), PECL (3.7 V), LVPECL (2.0 V), LVCMOS 1.5 V (0.75 V), LVCMOS 1.8 V (0.9 V), LVCMOS 2.5 V (1.25 V), LVCMOS 3.3 V (1.65 V), LVDS (0 V), and user defined.

Threshold selection channel granularity: Separate selection for each of the clock/qualifier and individual channels.

Threshold accuracy (including probe): ±(35 mV + 1%)

Input voltage range

Operating: 2.5 V to 5.0 V
Nondestructive: ±15 V

Minimum Input Signal Swing

Single-ended: 200 mV
Differential: V_MAX – V_MIN > 100 mV

Input signal minimum slew rate: 200 mV/ns typical

State acquisition with P6800 or P6900 series probes

Channel configurations

Configuration	Full channel	Half channel
750 MHz Standard	750 MHz / 750 Mb/s (1 sample/clock) 750 MHz / 1.5 Gb/s (2 samples/clock)	750 MHz / 3 Gb/s (4 samples/clock)
1.4 GHz Optional	1.4 GHz / 1.4 Gb/s (1 sample/clock)	1.4 GHz / 2.8 Gb/s (2 samples/clock)

State record length with Time stamps: (Quarter/Half/Full channels) 4/2 Mb, 8/4 Mb, 16/8 Mb, 32/16 Mb, 64/32 Mb, 128/64 Mb per channel

Setup and Hold time selection range: From 15 ns before, to 7.5 ns after clock edge in 20 ps increments. Range may be shifted towards the setup region by 0 ns [+7.5, -7.5] ns, 2.5 ns [+10, -5] ns, or 7.5 ns [+15, 0] ns.

Setup and Hold window, single channel: 180 ps typical

Minimum clock pulse width: 200 ps (P6960, P6962, P6964, P6980, P6982, P6860), 250 ps (P6910)

Demux channel selection: Channels can be demultiplexed to other channels through user interface with 8-channel granularity.

Timing acquisition (with P6800 or P6900 probes)

MagniVu™ timing: 20 ps max, adjustments to 40 ps, 80 ps, 160 ps, 320 ps, and 640 ps

MagniVu timing record length: 128 Kb per channel, with adjustable trigger position

Deep timing resolution: (Quarter/Half/Full channels)
1.25 ps / 312.5 ps / 625 ps to 50 ms

Deep timing resolution with glitch storage enabled: 1.25 ns to 50 ms

Deep timing record length: (Quarter/Half/Full channels)
8/4/2 Mb, 16/8/4 Mb, 32/16/8 Mb, 64/32/16 Mb, 128/64/32 Mb, 256/128/64 Mb per channel

Deep timing record length with glitch storage enabled: Half of default main memory depth

Channel-to-channel skew

(Module + probe)

Before customer deskew: ±80 ps typical
After customer deskew: ±20 ps typical

Minimum recognizable pulse/glitch width (single channel): 200 ps (P6960, P6962, P6964, P6980, P6982, P6860)
250 ps (P6910)

Minimum detectable Setup/Hold violation: 40 ps

Minimum recognizable multichannel Trigger event: Sample period + channel-to-channel skew

Analog acquisition (with P6800 or P6900 probes)

Bandwidth: 3 HGz typical

Attenuation: 10X, ±1%

Offset and gain (Accuracy): ±50 mV, ±2% of signal amplitude

Channels demultiplexed: 4

Run/Stop requirements: None, analog outputs are always active

iCapture™ Analog outputs: Compatible with any supported Tektronix oscilloscope

iCapture Analog output BNC cables: Four (4) low loss, 10X, 36 in.

Trigger system

Independent Trigger states: 16

Maximum idependent If/Then clauses per state: 16

Maximum numger of events per If/Then clause: 8

Maximum number of actions per If/Then clause: 8

Maximum number of Trigger events: 26 (2 counters/timers plus any 24 other resources)

Number of word recognizers: 24

Number of transition recognizers: 24

Number of range recognizers: 8

Number of counters/timers

Trigger event types: Word, Group, Channel, Transition, Range, Anything, Counter Value, Timer Value, Signal, Glitch, Setup-and-Hold Violation, Snapshot

Trigger action types: Trigger Module, Trigger All Modules, Trigger Main, Trigger MagniVu, Store, Don't Store, Store Sample, Increment Counter, Decrement Counter, Reset Counter, Start Timer, Stop Timer, Reset Timer, Snapshot Current Sample, Goto State, Set/Clear Signal, Do Nothing

Maximum triggerable data rate: 3.0 Gb/s

Trigger machine sequence rate: DC to 800 MHz (1.25 ns)

Counter/timer range: 48 bits each (~4 days at 1.25 ns)

Counter rate: DC to 800 MHz (1.25 ns)

Timer clock rate: 800 MHz (1.25 ns)

Counter/timer test latency: 0 ns

Range recognizers: Double bounded (408 channel maximum). Can be as wide as any group, must be grouped according to specified order of significance.

Setup-and-hold violation recognizer setup time range: From 7.5 ns before, to 7.5 ns after clock edge in 20 ps increments. This range may be shifted toward the positive region by 0 ns, 2.5 ns, 5 ns, or 7.5 ns.

Setup-and-hold violation recognizer hold time range: From 7.5 ns before, to 7.5 ns after clock edge in 20 ps increments. This range may be shifted toward the positive region by 0 ns, 2.5 ns, 5 ns, or 7.5 ns.

Trigger position: Any data sample

MagniVu trigger postion: MagniVu position can be set from 0% to 60% centered around the MagniVu trigger

Storage control (data qualification): Global (conditional), by state (start/stop), block, by trigger action, or transitional. Also force main prefill selection available.

Physical characteristics

Dimensions

Height: 262 mm (10.3 in.)
Width: 61 mm (2.4 in.)
Depth: 381 mm (15.0 in.)

Weight

Net: 3.1 kg (6.7 lb.)
Shipping: 6.3 kg (13.7 lb.)
