直流电源

A 直流电源是一种将市电交流（AC）转换为稳定直流（DC）输出的设备。根据具体应用，它可以是稳压型（保持恒定输出电压）或非稳压型。

进一步了解：

• 如何使用直流电源
• 台式直流电源基础知识



直流电源被广泛应用于多个行业，包括：

• 电子及半导体测试——用于电路验证、元件特性分析及故障诊断。
• 汽车及电动汽车（EV）——关键于电池测试、动力系统验证及逆变器测试。
• 航空航天及国防——用于航空电子设备、雷达及卫星系统的高精度测试。
• 医疗设备——支持植入式及便携式医疗电子产品的开发与测试。
• 可再生能源——关键于太阳能电池板、燃料电池及储能系统的测试。

Selecting a DC power supply can be overwhelming with the range of options available, but breaking it down by application and essential features makes the decision much easier. Here’s what to consider when choosing the right power supply for your needs.

Step 1: Define Your Application

Before looking at specifications, start with the intended use case.

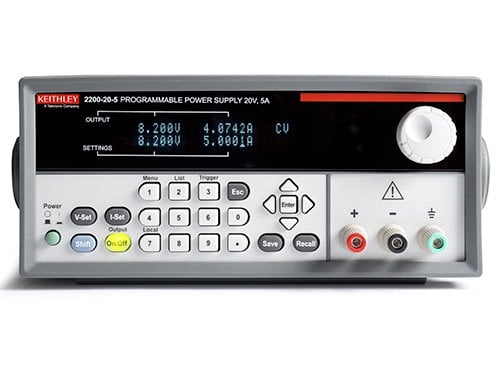

• General electronics testing – A standard benchtop power supply will work.
• Battery testing or simulation – A supply with bidirectional capabilities or a built-in battery emulator is necessary.

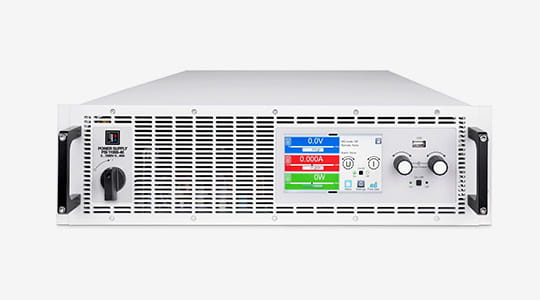

• High-power applications – If testing EV components or industrial equipment, a high-voltage, high-current, or autoranging supply is a better fit.

Step 2: Key Selection Criteria

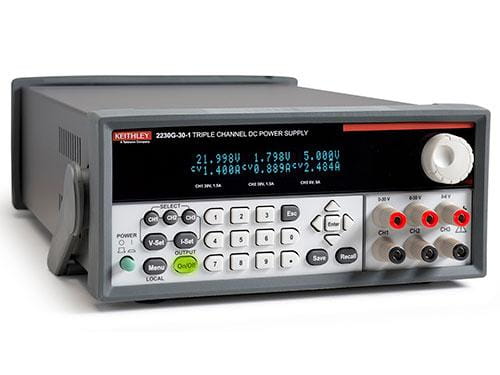

Single vs. Multi-Output

• Single-output supplies are sufficient for straightforward applications requiring a single power source.
• Multi-output supplies are ideal for testing circuits with multiple voltage levels, reducing the need for additional equipment.

Voltage, Current, and Power Capacity

• Ensure the supply can meet both maximum and minimum voltage and current needs.
• Autoranging power supplies provide greater flexibility by adjusting voltage and current dynamically while maintaining full power output.

Precision and Stability

• Resolution and accuracy determine how finely voltage and current can be adjusted—critical for precision testing.
• Ripple and noise impact signal integrity, especially in sensitive analog or RF applications.

Programmability and Automation

• Basic control interfaces (USB, LAN, or GPIB) are sufficient for automated testing setups.
• Advanced features like sequencing, arbitrary waveform generation, and programmable load profiles allow for more complex testing.
• Analog and digital I/O enable integration with external control systems.

Step 3: Specialized Features for Specific Applications

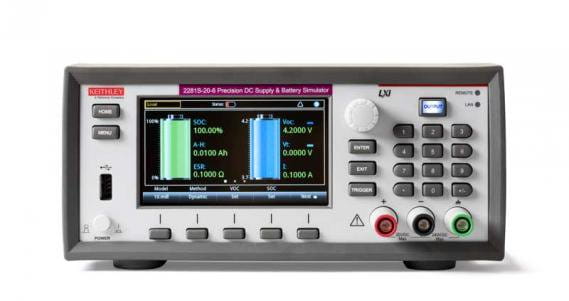

• Battery Simulation and Testing – Power supplies that can simulate battery behavior allow for more accurate testing of power consumption and efficiency.
• Bidirectional Power Supplies – These can both source and sink power, making them ideal for energy storage systems and applications such as EV battery cycling.

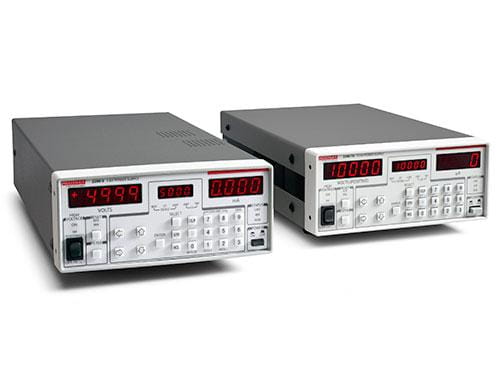

• High-Voltage Power Supplies – For applications like semiconductor testing and insulation breakdown analysis, supplies capable of 1 kV or higher are required.

Step 4: Consider Long-Term Usability

Selecting a power supply is not just about meeting immediate requirements—it’s about ensuring flexibility and longevity.

• Scalability – Can it accommodate future testing needs?
• Versatility – Will it work across multiple applications, or is it too specialized?
• Durability – Is it built for long-term precision and reliability?

Need help finding the perfect DC power supply for your application?
