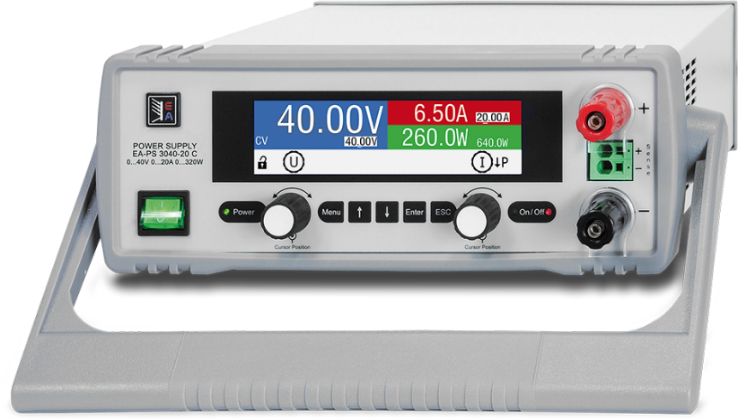

EA Elektro-Automatik 自动量程台式电源

EA Elektro-Automatik 台式可编程直流电源系列有台式和机柜式两种外形，功率范围为 100W 至 1500W。部分型号具有自动量程和内置函数发生器等高级功能。自动量程功能可在电压较低时自动调整为高电流，反之亦然，在各种电压/电流水平下都能保持全输出功率。函数发生器可提供正弦波、三角波、矩形波和梯形波等多种波形，还可输出自定义的任意波形。

所有台式电源均配有 TFT 触摸屏，便于直观的控制和测试设置。其界面简单易用，可快速配置测试并直观地操作仪器。EA 台式和机柜式系列直流电源和负载结构紧凑，节省空间又经济实惠，并且具有市场上大多数台式设备所不具备的先进功能。

基本价格
US $446 +
选择要配置/报价的型号
产品概述 下载
功率

高达 30 千瓦

电压

高达 2000 伏

电流

高达 1000 安

自动量程台式电源

自动量程实现灵活性

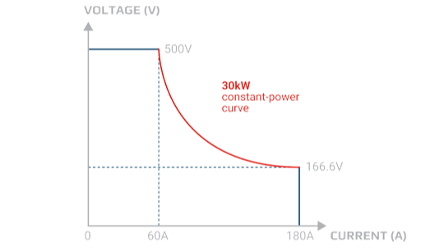

EA Elektro-Automatik 产品具有自动量程功能，可使电源或负载在一定电压和电流范围内以最大功率运行，最低可达到最大额定输出的33％。

相比之下，传统电源只能在最大电压和最大电流下输出额定功率。然而，对被测设备 (DUT) 施加最大电压的情况很少见，这意味着在大多数情况下，电源并未充分发挥其潜力。

工作原理是什么？EA 电源可在较低电压下自动提供更大电流（或在较低电流下提供更大电压），从而使电源能够持续输出额定功率。因此，只需一个电源就能提供多种电压和电流组合，否则将需要多个电源。
系列 功率 电压 电流 产品技术资料

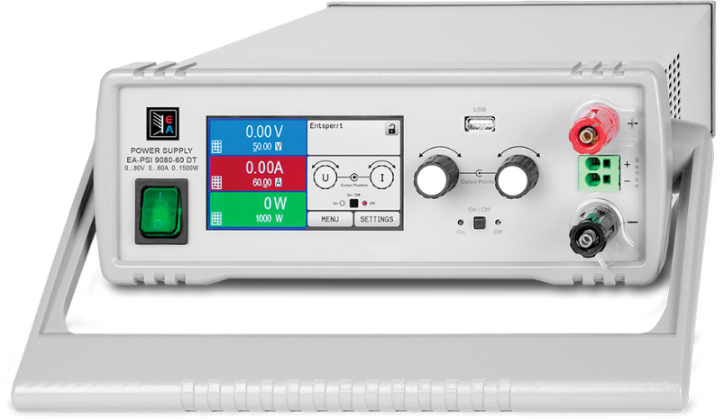

EA-PSI 9000 DT 0–320 W /0–1.5 kW 0–40 V up to 0–750 V 0–4 A up to 0–60 A 查看产品技术资料
型号 功率 电压 电流
EA PSI 9200 04 DT 0–320 W 0–200 V 0–4 A per channel Get a quote
EA PSI 9360 15 DT 0–1.5 kW 0–360 V 0–15 A per channel Get a quote
EA PSI 9500 06 DT 0–1 kW 0–500 V 0–6 A per channel Get a quote
EA PSI 9750 06 DT 0–1.5 kW 0–750 V 0–6 A per channel Get a quote
EA PSI 9750 04 DT 0–1 kW 0–750 V 0–4 A per channel Get a quote
EA PSI 9040 40 DT 0–1 kW 0–40 V 0–40 A per channel Get a quote
EA PSI 9360 10 DT 0–1 kW 0–360 V 0–10 A per channel Get a quote
EA PSI 9080 60 DT 0–1.5 kW 0–80 V 0–60 A per channel Get a quote
EA PSI 9080 10 DT 0–320 W 0–80 V 0–10 A Get a quote
EA PSI 9040 60 DT 0–1.5 kW 0–40 V 0–60 A per channel Get a quote
EA PSI 9200 10 DT 0–640 W 0–200 V 0–10 A per channel Get a quote
EA PSI 9080 20 DT 0–640 W 0–80 V 0–20 A per channel Get a quote
EA PSI 9040 20 DT 0–320 W 0–40 V 0–20 A Get a quote
EA PSI 9200 25 DT 0–1.5 kW 0–200 V 0–25 A per channel Get a quote
EA PSI 9500 10 DT 0–1.5 kW 0–500 V 0–10 A per channel Get a quote
EA PSI 9080 40 DT 0–1 kW 0–80 V 0–40 A per channel Get a quote
EA PSI 9200 15 DT 0–1 kW 0–200 V 0–15 A per channel Get a quote
EA-PS 2300 B 2 channels up to 0–160 W & 1 channel up to 0–12 W 2 channels up to 0–84 V & 1 channel 3–6 V 2 channels up to 0–10 A & 1 channel 0–4 A 查看产品技术资料
型号 功率 电压 电流
EA PS 2384 05B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–5 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 10B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–10 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2384 03B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–3 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 06B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–6 A
Channel 3: at 0–4 A		 Get a quote
EA-PS 2000 B 0–100 W /0–320 W 0–42 V up to 0–84 V 0–6A up to 0–20 A
型号 功率 电压 电流
EA PS 2042 10B 0–160 W 0–42 V 0–10 A per channel Get a quote
EA PS 2084 03B 0–100 W 0–84 V 0–3 A per channel Get a quote
EA PS 2084 05B 0–160 W 0–84 V 0–5 A per channel Get a quote
EA PS 2042 20B 0–320 W 0–42 V 0–20 A per channel Get a quote
EA PS 2042 06B 0–100 W 0–42 V 0–6 A per channel Get a quote
EA PS 2084 10B 0–320 W 0–84 V 0–10 A per channel Get a quote
系列 功率 电压 电流 产品技术资料
EA-PSI 9000 DT 0–320 W /0–1.5 kW 0–40 V up to 0–750 V 0–4 A up to 0–60 A 查看产品技术资料
型号 功率 电压 电流
EA PSI 9200 04 DT 0–320 W 0–200 V 0–4 A per channel Get a quote
EA PSI 9360 15 DT 0–1.5 kW 0–360 V 0–15 A per channel Get a quote
EA PSI 9500 06 DT 0–1 kW 0–500 V 0–6 A per channel Get a quote
EA PSI 9750 06 DT 0–1.5 kW 0–750 V 0–6 A per channel Get a quote
EA PSI 9750 04 DT 0–1 kW 0–750 V 0–4 A per channel Get a quote
EA PSI 9040 40 DT 0–1 kW 0–40 V 0–40 A per channel Get a quote
EA PSI 9360 10 DT 0–1 kW 0–360 V 0–10 A per channel Get a quote
EA PSI 9080 60 DT 0–1.5 kW 0–80 V 0–60 A per channel Get a quote
EA PSI 9080 10 DT 0–320 W 0–80 V 0–10 A Get a quote
EA PSI 9040 60 DT 0–1.5 kW 0–40 V 0–60 A per channel Get a quote
EA PSI 9200 10 DT 0–640 W 0–200 V 0–10 A per channel Get a quote
EA PSI 9080 20 DT 0–640 W 0–80 V 0–20 A per channel Get a quote
EA PSI 9040 20 DT 0–320 W 0–40 V 0–20 A Get a quote
EA PSI 9200 25 DT 0–1.5 kW 0–200 V 0–25 A per channel Get a quote
EA PSI 9500 10 DT 0–1.5 kW 0–500 V 0–10 A per channel Get a quote
EA PSI 9080 40 DT 0–1 kW 0–80 V 0–40 A per channel Get a quote
EA PSI 9200 15 DT 0–1 kW 0–200 V 0–15 A per channel Get a quote
EA-PS 2300 B 2 channels up to 0–160 W & 1 channel up to 0–12 W 2 channels up to 0–84 V & 1 channel 3–6 V 2 channels up to 0–10 A & 1 channel 0–4 A 查看产品技术资料
型号 功率 电压 电流
EA PS 2384 05B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–5 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 10B Channels 1 & 2: 0–160 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–10 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2384 03B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–84 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–3 A
Channel 3: at 0–4 A		 Get a quote
EA PS 2342 06B Channels 1 & 2: 0–100 W
Channel 3: 0–12 W		 Channels 1 & 2: 0–42 V
Channel 3: 3–6 V		 Channels 1 & 2: 0–6 A
Channel 3: at 0–4 A		 Get a quote
EA-PS 2000 B 0–100 W /0–320 W 0–42 V up to 0–84 V 0–6A up to 0–20 A
型号 功率 电压 电流
EA PS 2042 10B 0–160 W 0–42 V 0–10 A per channel Get a quote
EA PS 2084 03B 0–100 W 0–84 V 0–3 A per channel Get a quote
EA PS 2084 05B 0–160 W 0–84 V 0–5 A per channel Get a quote
EA PS 2042 20B 0–320 W 0–42 V 0–20 A per channel Get a quote
EA PS 2042 06B 0–100 W 0–42 V 0–6 A per channel Get a quote
EA PS 2084 10B 0–320 W 0–84 V 0–10 A per channel Get a quote
