MSO/DPO70000

通过业内最高的波形捕获能力发现真实信号,捕获更多信号细节。 工具套件的设计能自动执行高速串行数据信号的设置、采集和分析,加快设计调试和一致性测试。

带宽

4 GHz -
33 GHz

记录长度

多达 1G

通道数

4 条模拟通道
16 条数字通道 (MSO)

采样率

高达 100 Gs/s

查看您的真实信号

MSO/DPO70000系列,查看真实的信号

业界领先的信号保真度、最低噪声和最高有效位数 (ENOB),让您自信查看真实信号并对其进行精确测量。 高信噪比和内部低噪音本底,让您可以执行精确的设计检定。

特点

  • 带宽增强功能可以消除探头端部的频率响应不完整
  • 低抖动噪音本底和高垂直精度,为测量提供了更多的余量
  • 各种探头简化了复杂的测量设置并保持了信号完整性
  • 使用经过校准的光探头在一个屏幕上比较光信号和电气信号时序

缩短调试时间

MSO/DPO70000系列,缩短调试时间

从第一次开机一直到操作检查,MSO/DPO70000 系列可提供快速查找问题所需的功能。 业界领先的波形捕获速率和 Pinpoint® 触发可让您高效追踪和捕获间歇性故障。

特点

  • FastAcq 追踪不断变化的信号,显示真实的系统行为,包括难检故障
  • 利用并行/串行总线解码/触发,快速查找无效状态或总线序列
  • iCapture™ 无需更改连接即可轻松验证数字信号的模拟特征
  • 可视触发可节省捕获和人工搜索采集数据以查找关键事件和完成调试的时间

可让您追踪信号的测量和分析工具

MSO/DPO70000系列,可追踪信号的测量和分析工具

应用支持包可提供验证和证明您的最新设计所需的自动一致性测试、富有洞察力的调试工具和广泛的信号连接选项。

特点

  • DPOJET:最全面灵活的测量工具
  • SDLA:最强大全面的工具,用于分析和补偿串行数据链路中的信号影响
  • 最广泛的标准支持,包括 I2C、SPI、RS-232、FlexRay、MIPI、DisplayPort、HDMI、PCIe Gen3/Gen4、SATA/SAS、USB3.1、Type-C、10/100BaseT 至 10G/100G 以太网
  • 功能强大的调试工具可迅速发现/解决设计挑战
  • 光测量,例如消光比 (ER)、平均光功率 (AOP)、光调制幅度 (OMA)、光高值/光低值 — 兼容 DPO7OE1/DPO7OE2 光探头

是否需要在维修过程中使用相同的备用仪器?

在仪器维修期间时保持高效。 金牌服务选项将提供免费备用装置,使您的团队保持工作状态。 备用装置在服务开始后 48 小时内发货,并且金牌服务客户的仪器到达我们的服务中心时将受到优先处理。

了解详情

型号 模拟带宽 采样率 记录长度 模拟通道 数字通道数 报价
DPO70404C 4 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
DPO72504DX 25 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO70804C 8 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
DPO71604C 16 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
DPO72004C 20 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
MSO71254C 12.5 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70604C 6 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO72004C 20 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70804C 8 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO73304DX 33 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
MSO71604C 16 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70404C 4 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO72304DX 23 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
MSO72504DX 25 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
DPO71254C 12.5 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
DPO72304DX 23 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO73304DX 33 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO70604C 6 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
价格:价格如有变更,恕不另行通知。
型号 模拟带宽 采样率 记录长度 模拟通道 数字通道数 报价
DPO70404C 4 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
DPO72504DX 25 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO70804C 8 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
DPO71604C 16 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
DPO72004C 20 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
MSO71254C 12.5 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70604C 6 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO72004C 20 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70804C 8 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO73304DX 33 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
MSO71604C 16 GHz 50 GS/s - 100 GS/s 62.5M 点 - 250M 点 4 16 配置和报价
MSO70404C 4 GHz 25 GS/s 62.5M 点 - 125M 点 4 16 配置和报价
MSO72304DX 23 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
MSO72504DX 25 GHz 50 GS/s - 100 GS/s 62.5M 点 - 1G 点 4 16 配置和报价
DPO71254C 12.5 GHz 50 GS/s - 100 GS/s 31.25M 点 - 250M 点 4 - 配置和报价
DPO72304DX 23 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO73304DX 33 GHz 50 GS/s - 100 GS/s 31.25M 点 - 1G 点 4 - 配置和报价
DPO70604C 6 GHz 25 GS/s 31.25M 点 - 125M 点 4 - 配置和报价
价格:价格如有变更,恕不另行通知。

模拟/数字设计和调试

MSO/DPO70000系列,模拟/数字设计和调试

调试下一代设计时,您需要快速查找和分析广泛的混合信号问题,从信号完整性问题(如串扰或抖动)到总线故障(如建立时间和保持时间违例或丢包)。 这就是您需要具有功能强大的工具和可靠性能的示波器的时候了。 工作台上有 MSO/DPO70000 时,您将能确保按时完成工作。

特点

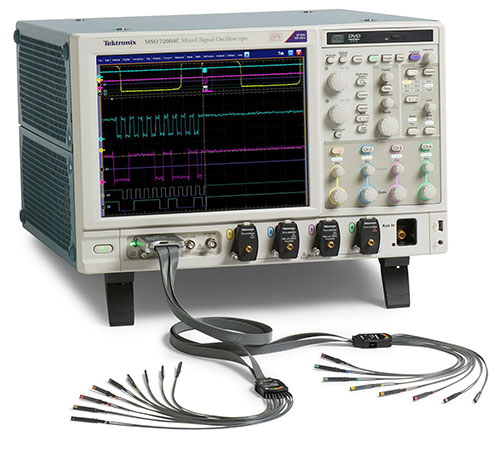

  • 轻松查看输入信号的模拟特征,使用 iCapture™ 在 4 条模拟通道和 16 条逻辑通道上验证系统定时
  • 在时间量程上分析系统操作,您需要在所有通道上都安装深度存储器
  • 使用全套触发、解码和测量工具,快速查找并解决问题

数据通信

MSO/DPO70000系列,数据通信

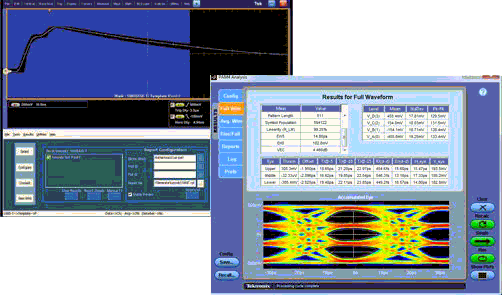

如今的数据通信网络在不断发展,并且建立在许多不同的标准之上。 MSO/DPO70000 提供全面的集成工具系列用于以太网设备物理层的验证,还可用于从 10BASE-T 直到 40/100GB 基于以太网系统的调试。 MSO/DPO70000 还提供适用于其他数据通信标准的高级一致性和调试工具。

特点

  • 特定标准的自动一致性测试和调试工具
  • 广泛的抖动分析和调试工具集
  • 检定 PAM4 和 NRZ 信号

高速串行通信

MSO/DPO70000系列,高速串行通信

下一代数字接口标准会突破如今的一致性和调试工具的极限。MSO/DPO70000 系列的自动测量套件可加快 PHY 验证周期,并保证一致性。当一致性测量未通过时,可使用协议解码、可视化触发等强大工具来缩短调试时间。在串扰或其他多通道噪声耦合中确定抖动和噪声。

特点

  • 加快 PCIe、SATA 或 SAS 设计的分析、验证和预一致性测试
  • 测试 SuperSpeed USB 3.1 Type-C 设计时快速查找问题的根本原因
  • 减少 DisplayPort 一致性测试和 HDMI 物理层验证的时间
  • SDLA 与 DPOJET 提供计算机、通信和内存总线的全面模拟和测量

雷达和射频

MSO/DPO70000系列,雷达和射频

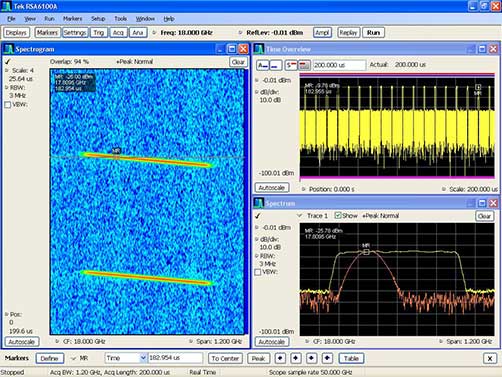

配有 SignalVu 矢量信号分析软件的 MSO/DPO70000 系列可为您提供所需的分析功能,让您满怀信心地克服最具有挑战性的射频、无线和微波设计问题。 您可以使用泰克实时频谱分析仪上使用的工具分析达 33GHz 的信号。

特点

  • 轻松检验宽带雷达、高数据速率卫星链路、WLAN 802.11 或跳频无线电设计
  • 同时测量频率、时间、相位、调制域



产品技术资料 软件包 / 软件选件 描述 配置和报价
附件 TCA-1MEG
产品技术资料 描述
放大器;高阻抗缓冲器;1 兆欧/10PF;TEKPROBE BNC 至 TEKCONNECT;带 P6139B,可追溯校准标准证明
附件 TCA292D
产品技术资料 描述
视图 产品技术资料 2.92 MM TEKCONNECT 适配器
附件 TCA-292MM
产品技术资料 描述
视图 产品技术资料 TEKCONNECT 2.92MM;TEKCONNECT 适配器,带 2.92MM 输入连接器
附件 TCA75
产品技术资料 描述
视图 产品技术资料 TEKCONNECT 适配器;75 欧姆至 50 欧姆,带 75 欧姆输入连接器
附件 TCA-BNC
产品技术资料 描述
视图 产品技术资料 TEKCONNECT BNC;TEKCONNECT 适配器,带 BNC 输入连接器
附件 TCA-N
产品技术资料 描述
视图 产品技术资料 TEKCONNECT N;TEKCONNECT 适配器,带 N 连接器输入
附件 TCA-SMA
产品技术资料 描述
视图 产品技术资料 TEKCONNECT SMA;TEKCONNECT 适配器,带 SMA 输入连接器
附件 TCA-VPI50
产品技术资料 描述
TekVPI 至 TekConnect 适配器,用于 50 欧姆终端附件
附件 TPA-BNC
产品技术资料 描述
探头适配器,从 TekProbe-BNC 至 TekVPI
产品技术资料 附件 描述
视图 产品技术资料 TCA-1MEG 放大器;高阻抗缓冲器;1 兆欧/10PF;TEKPROBE BNC 至 TEKCONNECT;带 P6139B,可追溯校准标准证明
TCA292D 2.92 MM TEKCONNECT 适配器
TCA-292MM TEKCONNECT 2.92MM;TEKCONNECT 适配器,带 2.92MM 输入连接器
TCA75 TEKCONNECT 适配器;75 欧姆至 50 欧姆,带 75 欧姆输入连接器
TCA-BNC TEKCONNECT BNC;TEKCONNECT 适配器,带 BNC 输入连接器
TCA-N TEKCONNECT N;TEKCONNECT 适配器,带 N 连接器输入
TCA-SMA TEKCONNECT SMA;TEKCONNECT 适配器,带 SMA 输入连接器
视图 产品技术资料 TCA-VPI50 TekVPI 至 TekConnect 适配器,用于 50 欧姆终端附件
视图 产品技术资料 TPA-BNC 探头适配器,从 TekProbe-BNC 至 TekVPI
