频谱分析仪软件
使用 SignalVu-PC 分析射频和矢量信号
SignalVu-PC 频谱分析仪软件允许工程师分析射频和矢量信号，以便轻松地验证射频设计。不管您的设计验证中涉及的是 EMI/EMC 一致性预测试、宽带雷达、无线局域网还是跳频通信，SignalVu-PC 的出色工具和应用软件都能显示这些信号随时间变化的特点，让您可以更快地获得所需信息。
免费试用我们的频谱分析仪软件
下载 SignalVu-PC 频谱分析仪软件的 30 天免费试用版，通过以下插件选项获得 17 种信号分析和实时频谱分析测量方法：
- EMI/EMC 一致性预测试和调试
- VectorSignalAnalysis
- 脉冲式信号分析
- 商用无线信号分析
泰克频谱分析仪软件的重要特性
基本价格
US $1,390
-
US $64,700
SignalVu-PC
Spectrum analyzer software for Windows, tablets, or oscilloscopes

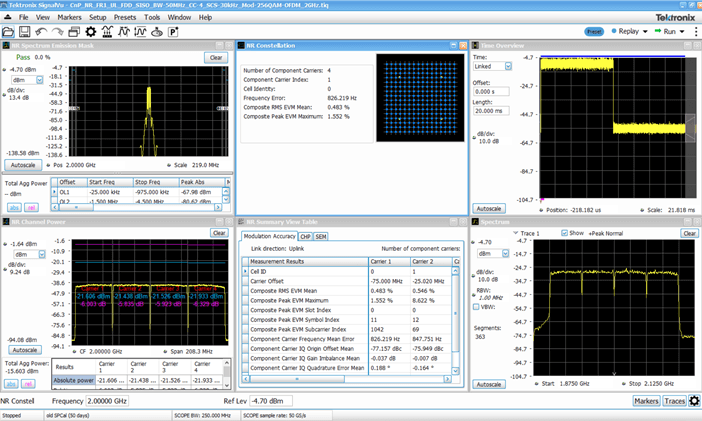

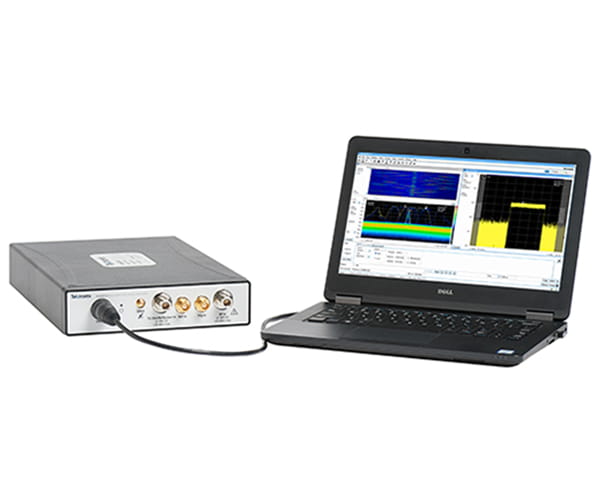

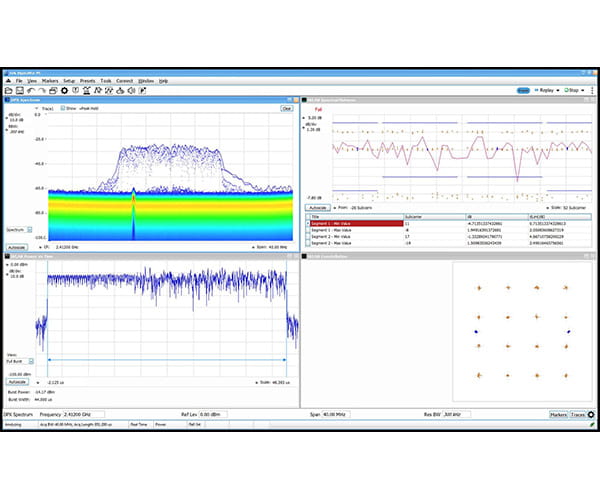

SignalVu-PC spectrum analyzer software uses the same signal analysis capabilities found in the RSA5000 Series real-time signal analyzers but runs on your computer, tablet, or MSO/DPO Oscilloscope with Windows 7/8/10 Intel i5 or i7 64-bit operating system.

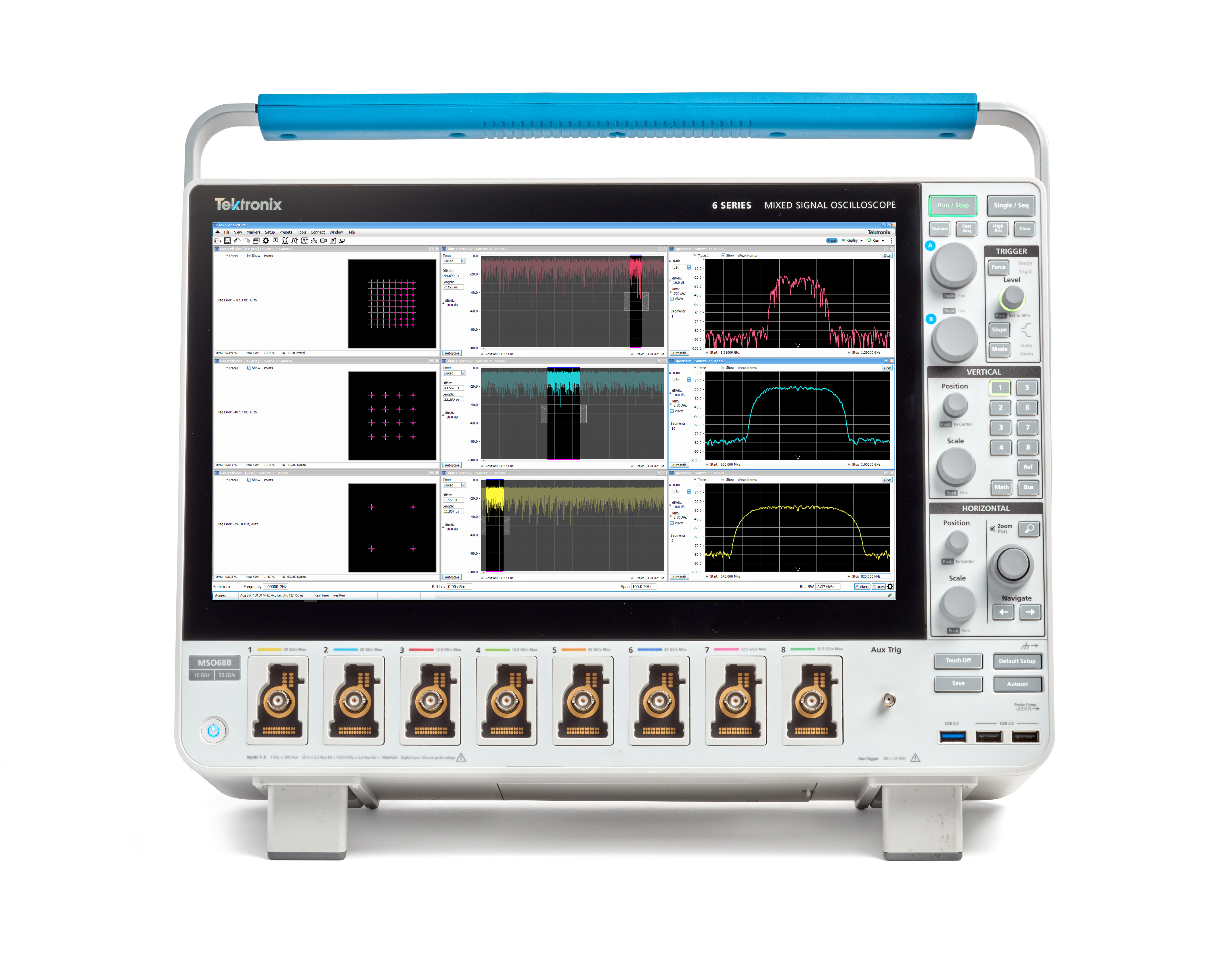

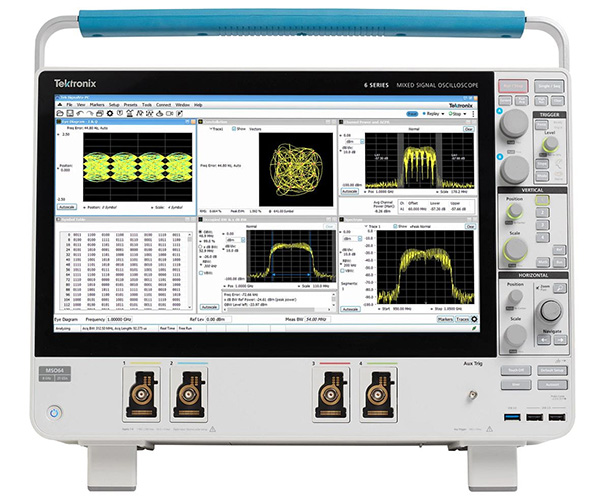

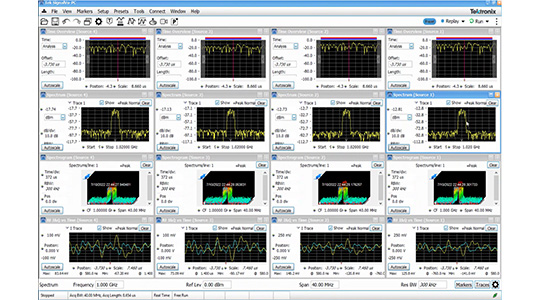

With the 5 Series/6 Series/6 Series B MSO, you may choose to install SignalVu-PC directly on the Windows 10 SSD of the oscilloscope (opt. 5/6-WIN required).Live acquisitions from Tektronix real-time spectrum analyzers and Tektronix MDO/MSO/DPO Oscilloscopes, can be recalled and analyzed with SignalVu-PC, adding deep analysis capabilities to these broadband acquisition systems.

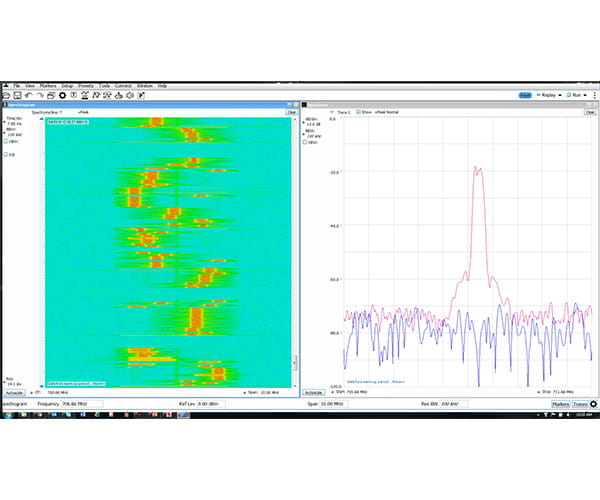

Once captured into memory, SignalVu-PC spectrum analyzer software provides detailed analysis in multiple domains. The spectrogram display (bottom left panel) shows the frequency of an LFM Pulse changing over time. By selecting the point in time in the spectrogram during the On time of the pulse, the chirp behavior can be seen as it sweeps from low to high (upper right panel).
With SignalVu-PC
Connect (CON-SVPC), you can connect and analyze signals online (live) with
SignalVu-PC using the 5 Series/6 Series/6 Series B MSO (with option SV-RFVT),
or MDO4000 Oscilloscope.
Spectrum analyzer software for EMI/EMC pre-compliance testing

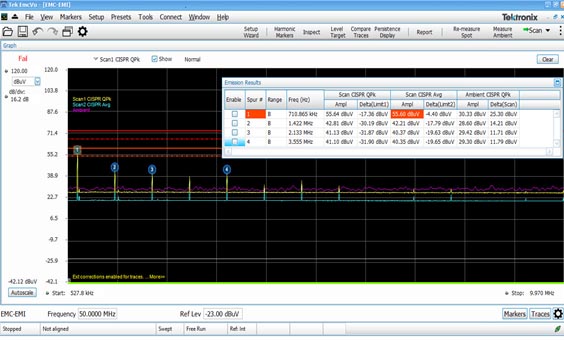

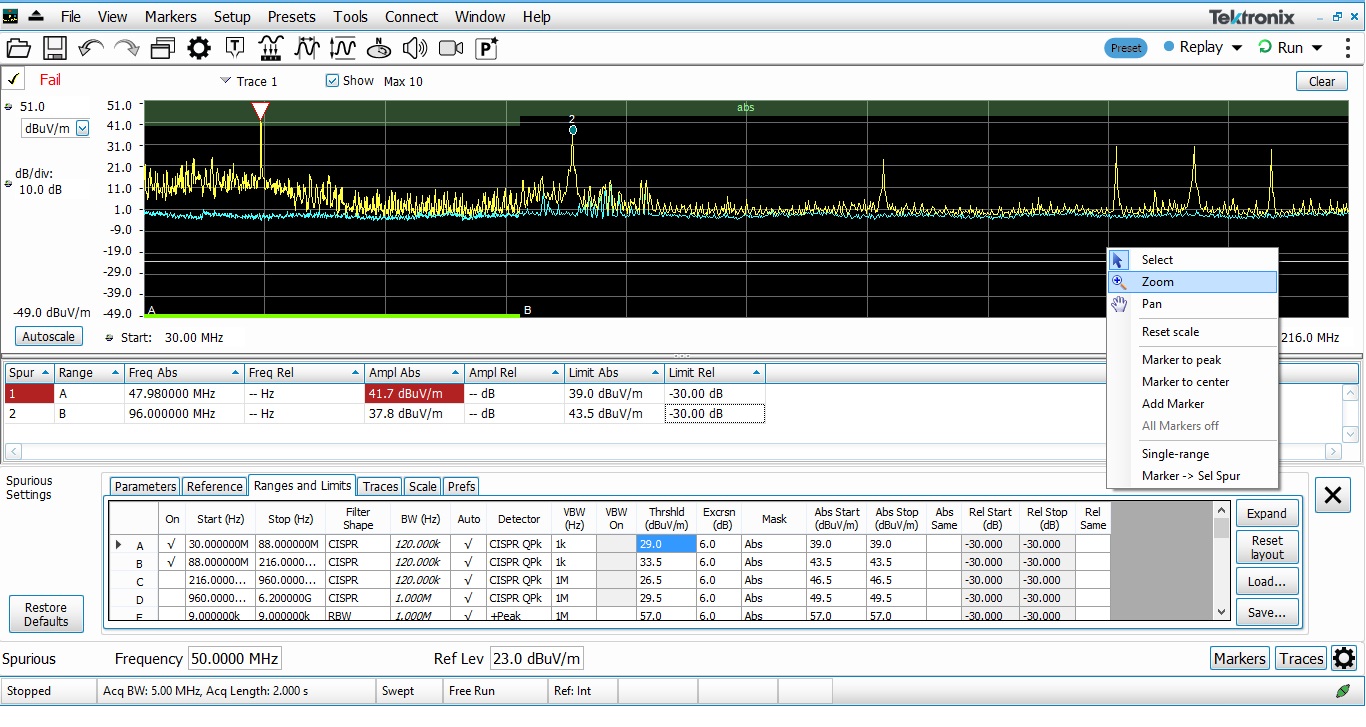

SignalVu-PC spectrum analyzer software now supports EMC pre-compliance testing with EMCVu. EMCVu is an all-in-one software solution for EMC/EMI pre-compliance testing and troubleshooting that runs on your own PC. This gives you an easy, fast, accurate and affordable way to determine if your product designs are ready to submit to the test house for EMI/EMC radiation emission compliance testing. This is done through push button support for multiple standards, automated multiple measurement/multiple format reporting, ambient noise calibration and comparison, harmonic markers and faster scans using peak detector and spot measurements with quasi-peak and average detector failures.
Optional applications tailored for your RF applications
The basic SignalVu-PC free spectrum analyzer software enables spectrum analysis, RF power and statistics, spectrograms, amplitude, frequency and phase vs. time, and analog modulation measurements. Applications are available for P25, Bluetooth, LTE, Mapping, Playback of recorded files, WLAN, settling time, audio, modulation, pulse, and OFDM analysis. Wideband satellite and point-to-point microwave links can be directly observed with SignalVu-PC spectrum analyzer software. Settling time measurements (SVT) are easy and automated. The user can select measurement bandwidth, tolerance bands, reference frequency (auto or manual), and establish up to 3 tolerance bands vs. time for Pass/Fail testing. Settling time may be referenced to external or internal trigger, and from the last settled frequency or phase.
Spectrum analyzer software FAQs
What is a spectrum analyzer used for?
A spectrum analyzer is used to measure the power of the spectrum of known and unknown signals. These test instruments measure the amplitude of an input signal versus frequency within the full frequency range of the instrument.
What is spectrum analyzer software?
Software for spectrum analyzers is a
common tool used by radio frequency (RF) engineers. It allows you to control
the acquisition, processing, and display of the spectral content of acquired
signals (RF waveforms), and to facilitate further analysis and measurements.
What is spectrum analyzer software used for?
Regardless of the instrument used for the signal data acquisition (signal or spectrum analyzers or oscilloscopes input channels), spectrum analyzers software enables the analysis and validation of signals involved in RF design circuits. After transforming the time signal into the frequency domain, the software allows you to represent it in several ways to make accurate measurements. Modern instruments are often used for advanced mmWave applications analysis, including 5G New Radio signal analysis, Wideband radar and pulsed RF signals, Wireless LAN, Bluetooth, Commercial Wireless, EMC/EMI pre-compliance testing and debugging, and many more.
What is the difference between a spectrum analyzer and an oscilloscope?
Oscilloscopes and spectrum analyzers are two of the most important instruments on any bench. While a spectrum analyzer is used to gather frequency information, oscilloscopes are used to measure how signals change over time. The combination of the two instruments allows engineers to characterize a signal.
Is a spectrum analyzer the same as FFT?
Spectrum analyzers are specifically designed for viewing signals in the frequency domain, but because they are not always readily available, oscilloscopes have traditionally used the FFT (Fast Fourier Transform) algorithm to view the frequency spectrum of a signal. However, FFTs are notoriously difficult to use and difficult to view accurately. While our oscilloscopes and spectrum analyzers support standard FFT, they utilize a new, more advanced architecture for spectrum analysis.
获得频谱分析仪软件的 30 天免费试用
SignalVu-PC 基础版可免费下载 和用于离线分析信号或用于通信和控制 Tektronix RSA306、RSA500、RSA600 和 RSA7100 系列实时频谱 （信号）分析仪。此款免费频谱分析仪软件支持 离线分析由 Tektronix RTSA（实时频谱 分析仪）和示波器采集的文件，并且随附 17 种标准测量方法。此外，还可以升级到 15 种以上的高级测量方法。这些附加的测量方法可用于 SignalVu-PC 或 SignalVu 支持的任意平台。任何应用升级均免费试用 30 天。 只需购买您所需要的应用。
首先下载免费的 SignalVu-PC 频谱分析仪软件，然后启用您选择的应用程序试用版。升级以节点锁定或浮动版本形式提供。节点锁定许可证让您可以应用到新 PC 三次。浮动许可证允许选定用户管理各个许可证。所有试用均为浮动许可证。
EMCVu：一致性预测试和故障排除 |
||
|---|---|---|
|
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 支持 EMCVU 30 天试用 | |
| 3 | 索取 EMCVUFL-SVPC 报价（浮动许可证） | |
| 索取 EMCVUNL-SVPC 报价（节点锁定许可证） | ||
|
SVP：高级信号分析（包括脉冲测量）
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVP 30 天试用 | |
| 3 | 索取 SVPFL-SVPC 报价（浮动许可证） | |
| 索取 SVPNL-SVPC 报价（节点锁定许可证） | ||
|
5GNR: 5G New Radio 5GNR 上行链路/下行链路测量
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 5GNR 30 天试用 | |
| 3 | 索取 5GNR 报价（节点锁定许可证） | |
|

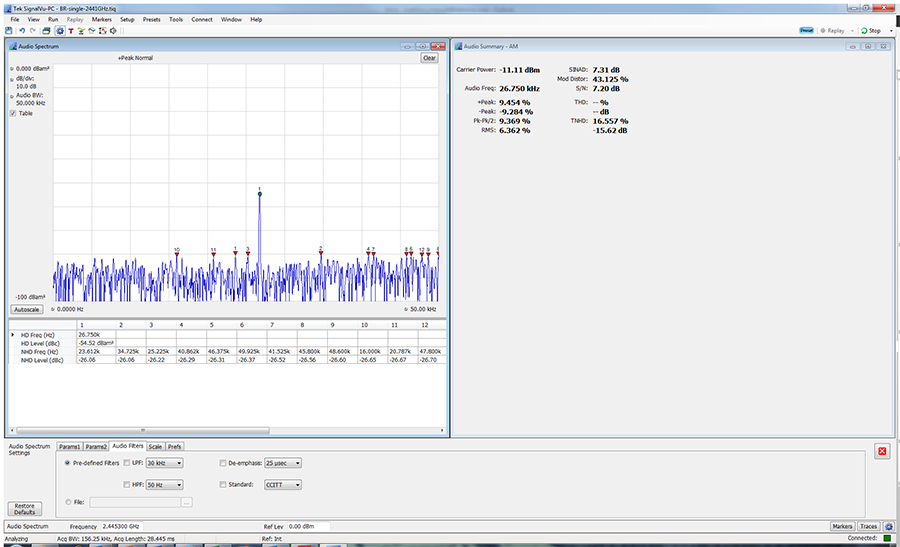

SVA：AM/FM/PM/直接音频分析
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVA 30 天试用 | |
| 3 | 索取 SVAFL-SVPC 报价（浮动许可证） | |
| 索取 SVANL-SVPC 报价（节点锁定许可证） | ||
|

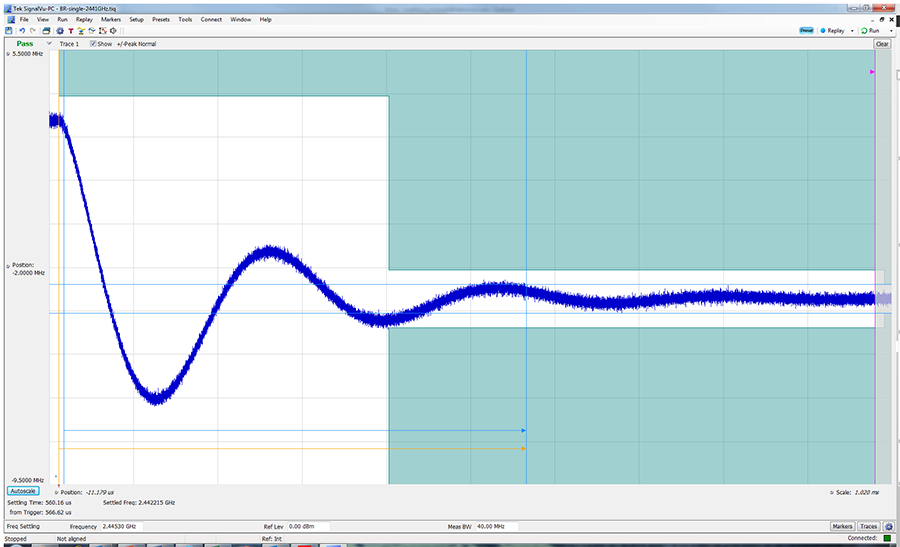

SVT：稳定时间（频率和相位）测量
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVT 30 天试用 | |
| 3 | 索取 SVTFL-SVPC 报价（浮动许可证） | |
| 索取 SVTNL-SVPC 报价（节点锁定许可证） | ||
|
SVM：通用调制分析
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVM 30 天试用 | |
| 3 | 索取 SVMFL-SVPC 报价（浮动许可证） | |
| 索取 SVMNL-SVPC 报价（节点锁定许可证） | ||
|

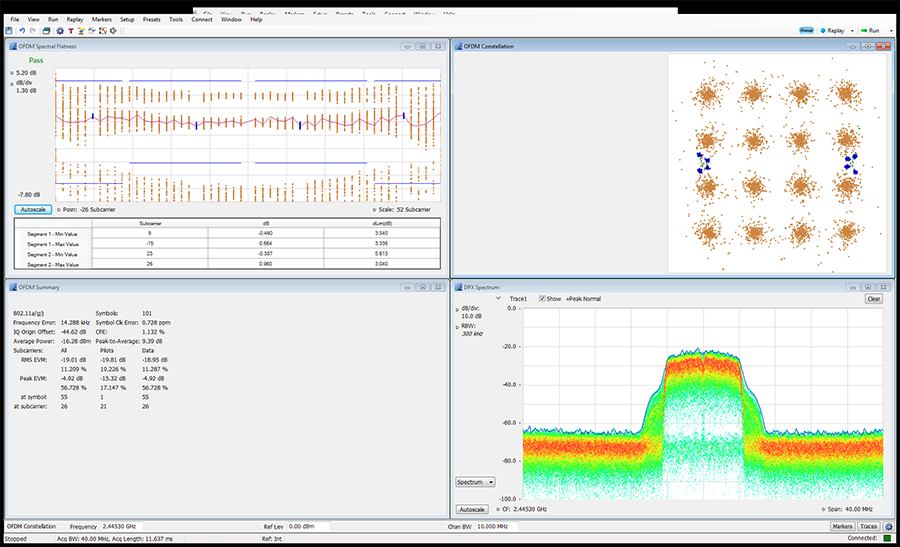

SVO：自定义 OFDM 分析
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVO 30 天试用 | |
| 3 | 索取 SVOFL-SVPC 报价（浮动许可证） | |
| 索取 SVONL-SVPC 报价（节点锁定许可证） | ||
|
CON：SignalVu-PC 实时链接到 5/6 系列 MSO 或 MDO4000B/C 系列
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 CON 30 天试用 | |
| 3 | 索取 CONFL-SVPC 报价（浮动许可证） | |
| 索取 CONNL-SVPC 报价（节点锁定许可证） | ||
|

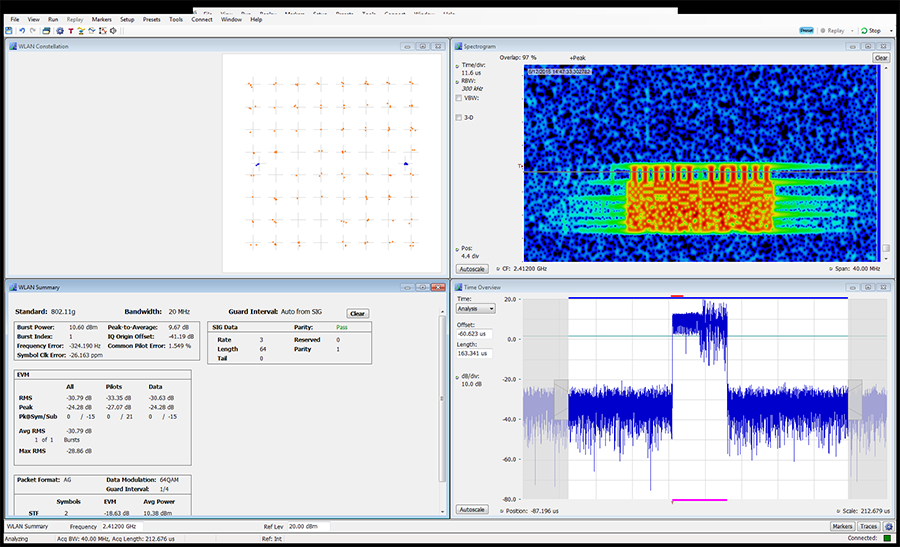

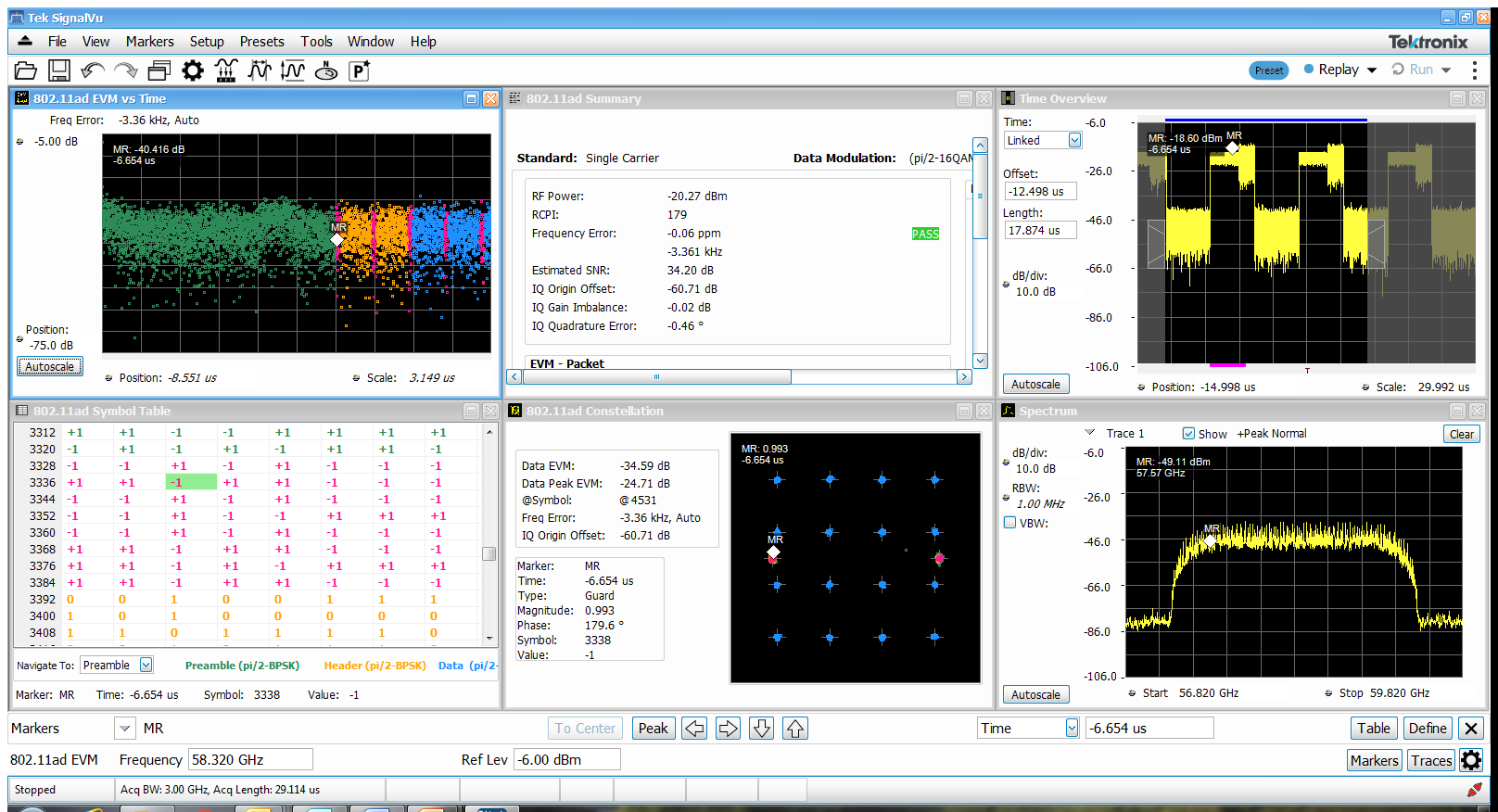

SV23：WLAN 802.11a/b/g/j/p 测量应用
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV23 30 天试用 | |
| 3 | 索取 SV23FL-SVPC 报价（浮动许可证） | |
| 索取 SV23NL-SVPC 报价（节点锁定许可证） | ||
|
SV24：WLAN 802.11n 测量应用（需要应用 SV23）
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV24 30 天试用 | |
| 3 | 索取 SV24FL-SVPC 报价（浮动许可证） | |
| 索取 SV24NL-SVPC 报价（节点锁定许可证） | ||
|
SV25：WLAN 802.11ac 测量应用（需要应用 SV24）
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV25 30 天试用 | |
| 3 | 索取 SV25FL-SVPC 报价（浮动许可证） | |
| 索取 SV25NL-SVPC 报价（节点锁定许可证） | ||
|
SV2C：捆绑实时链接到 MDO4000B/C 和 WLAN 802.11a/b/g/j/p/n/ac 测量（包括应用 CON、SV23、SV24 和 SV25）
请参见应用 SV23、SV24、SV25 |
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV2C 30 天试用 | |
| 3 | 索取 SV2CFL-SVPC 报价（浮动许可证） | |
| 索取 SV2CNL-SVPC 报价（节点锁定许可证） | ||
|
MAP：绘制地图
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 MAP 30 天试用 | |
| 3 | 索取 MAPFL-SVPC 报价（浮动许可证） | |
| 索取 MAPNL-SVPC 报价（节点锁定许可证） | ||
|

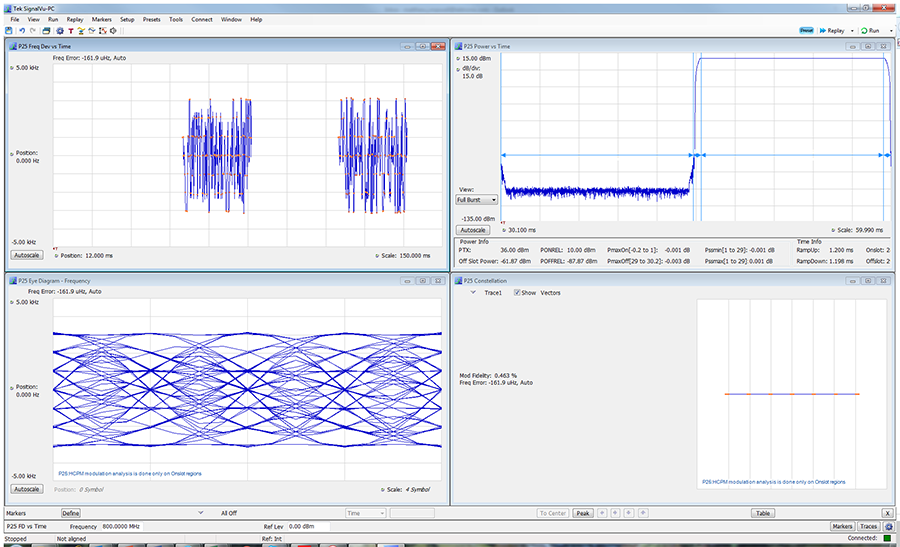

SV26：APCO P25 测量应用
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV26 30 天试用 | |
| 3 | 索取 SV26FL-SVPC 报价（浮动许可证） | |
| 索取 SV26NL-SVPC 报价（节点锁定许可证） | ||
|

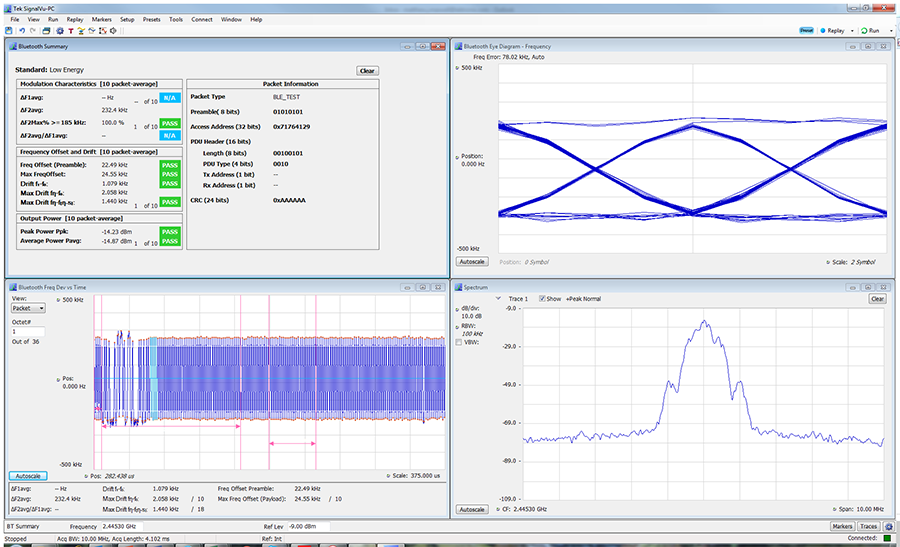

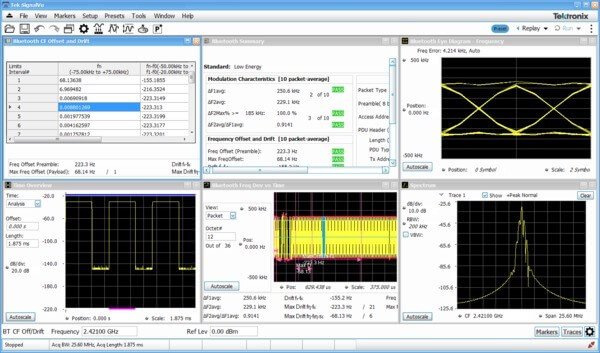

SV27：蓝牙基本 LE TX SIG 测量
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV27 30 天试用 | |
| 3 | 索取 SV27FL-SVPC 报价（浮动许可证） | |
| 索取 SV27NL-SVPC 报价（节点锁定许可证） | ||
|

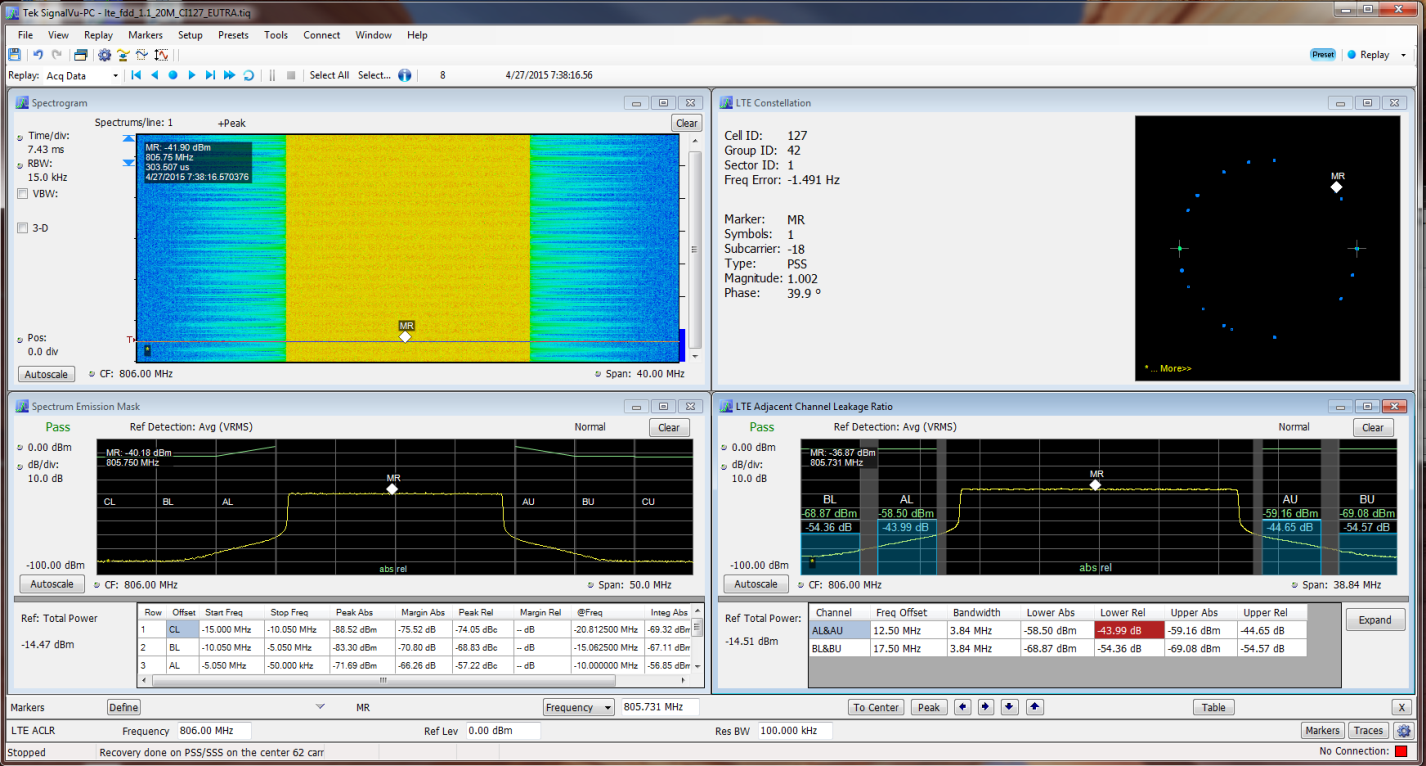

SV28：LTE 下行链路 (eNB) RF 测量
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV28 30 天试用 | |
| 3 | 索取 SV28FL-SVPC 报价（浮动许可证） | |
| 索取 SV28NL-SVPC 报价（节点锁定许可证） | ||
|
SV56：记录文件回放
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV56 30 天试用 | |
| 3 | 索取 SV56FL-SVPC 报价（浮动许可证） | |
| 索取 SV56NL-SVPC 报价（节点锁定许可证） | ||
|
SV54：信号测量和分类
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV54 30 天试用 | |
| 3 | 索取 SV54FL-SVPC 报价（浮动许可证） | |
| 索取 SV54NL-SVPC 报价（节点锁定许可证） | ||
|
SV60：电缆和天线测试
在配备 04 跟踪发生器选件时，RSA500A/600A 系列可以在电缆、器件和天线上进行单端口测量，并不再需要昂贵的外部基准源。 测量包括：
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV60 30 天试用 | |
| 3 | 索取 SV60FL-SVPC 报价（浮动许可证） | |
| 索取 SV60NL-SVPC 报价（节点锁定许可证） | ||
|
B800：对于 RSA7100B：采集带宽为 800 MHz
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 B800 30 天试用 | |
| 3 | 索取 B800FL-SVPC 报价（浮动许可证） | |
| 索取 B800NL-SVPC 报价（节点锁定许可证） | ||
|
STREAM：适用于 RSA7100B：流式数据（对于 RAID 存储为必需的）
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 STREAM 30 天试用版 | |
| 3 | 索取 STREAMFL-SVPC 报价（浮动许可证） | |
| 索取 STREAMNL-SVPC 报价（节点锁定许可证） | ||
|
SV25H：适用于 RSA7100B：WLAN 802.11ac 测量应用
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SV25H 30 天试用 | |
| 3 | 索取 SV25HFL-SVPC 报价（浮动许可证） | |
| 索取 SV25HNL-SVPC 报价（节点锁定许可证） | ||
|
SVMH：适用于 RSA7100B：通用调制分析，适用于采集带宽小于或等于 1 GHz 的分析仪
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVMH 30 天试用 | |
| 3 | 索取 SVMHFL-SVPC 报价（浮动许可证） | |
| 索取 SVMHNL-SVPC 报价（节点锁定许可证） | ||
|
SVPH：适用于 RSA7100B：脉冲分析，适用于采集带宽小于或等于 1 GHz 的分析仪
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 SVPH 30 天试用 | |
| 3 | 索取 SVPHFL-SVPC 报价（浮动许可证） | |
| 索取 SVPHNL-SVPC 报价（节点锁定许可证） | ||
|
TRIG：适用于 RSA7100B：高级触发，适用于采集带宽小于或等于 1 GHz 的分析仪
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 TRIG 30 天试用 | |
| 3 | 索取 TRIGFL-SVPC 报价（浮动许可证） | |
| 索取 TRIGNL-SVPC 报价（节点锁定许可证） | ||
|

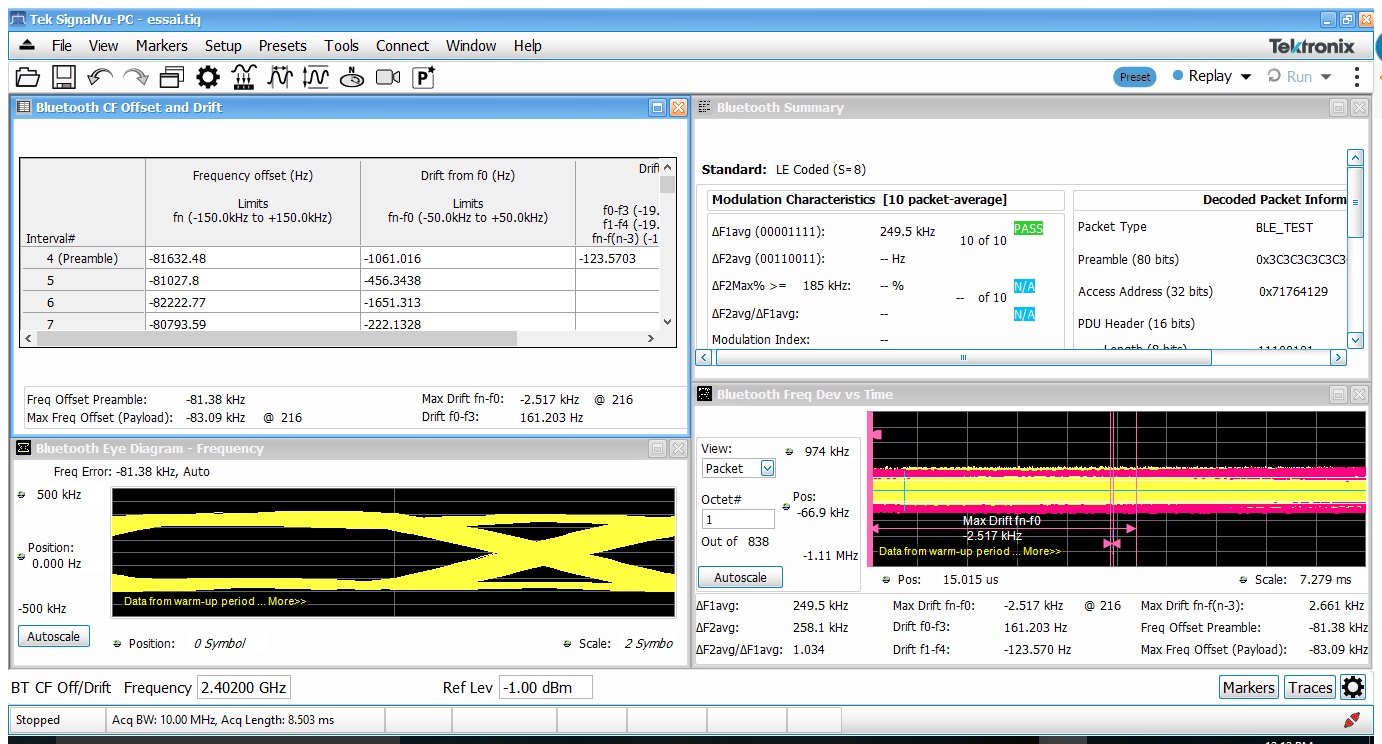

SV31：蓝牙 5 测量（要求应用 SV27）
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 支持 SV31NL-SVPC 30 天试用 | |
| 3 | 索取 SV31FL-SVPC 报价（浮动许可证） | |
| 索取 SV31NL-SVPC 报价（节点锁定许可证） | ||
|
SVQP：CISPR 检波器
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 支持 SVQPNL-SVPC 30 天试用 | |
| 3 | 索取 SVQPFL-SVPC 报价（浮动许可证） | |
| 索取 SVQPNL-SVPC 报价（节点锁定许可证） | ||
|

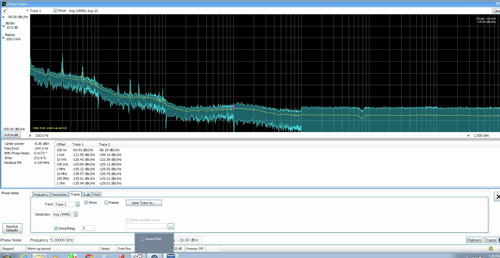

PHASxx-SVPC：对于 RSA7100B：相位噪声/抖动测量
|
1 | 下载 SignalVu-PC 软件 |
| 2 | 启用 PHASNL-SVPC 30 天试用 | |
| 3 | 索取 PHASFL-SVPC 报价（浮动许可证） | |
| 索取 PHASNL-SVPC 报价（节点锁定许可证） | ||
Spectrum analyzer software for multiple instruments
SignalVu-PC spectrum analyzer software uses the same feature set and user interface that is found in the RSA5000, SPECMON, and RSA6000 Real-Time Spectrum and Signal Analyzers. Also, SignalVu-PC has the same feature set and user interface as the SignalVu options that are available on the MSO/DPO5000, DPO7000, MSO/DPO70000, and DPO70000SX Series Oscilloscopes.
| Instrument Series | Instrument Type | Connection & Use | Software License | Max Acquisition Bandwidth |
|---|---|---|---|---|
| RSA306, RSA306B, RSA500 and RSA600 | USB Real-Time Signal Analyzers (RSA) | USB 3.0 to a Windows PC with SignalVu-PC installed. | Free | 40 MHz |
| RSA5100B | Performance Real-Time Signal Analyzer (RTSA) | SignalVu runs directly on the RTSA operating system | Free | 165 MHz |
| RSA7100B | Performance Real-Time Signal Analyzer (RTSA) | 2x PCIe USB 3.0 on front panel to a high-speed RAID controller with SignalVu-PC installed | Free | 800 MHz |
| MDO4000B/C | Mixed Domain Oscilloscope (MDO) | USB 2.0 to a PC with SignalVu-PC installed | Requires Connect (CON or SV2C) | 1 GHz |
| 5 Series MSO or 6 Series MSO | Touch screen Mixed Signal Oscilloscope (MSO) | SignalVu-PC runs directly on the MSO5/6 Series operating system (Option 5/6-Win required) or USB2.0 to a separate Windows PC with SignalVu-PC installed | Requires Connect (CON or SV2C) and Opt. SV-RFVT, Option 5/6-Win to run on scope OS | 2 GHz |
| MSO/DPO70000SX/DX
MSO/DPO70KC MSO/DPO5000 DPO7000 |
Performance Digital, Mixed Signal, and Mixed Domain Oscilloscopes | SignalVu runs directly on the performance oscilloscope operating system | Requires option SVE running on the oscilloscope | 70 GHz |
