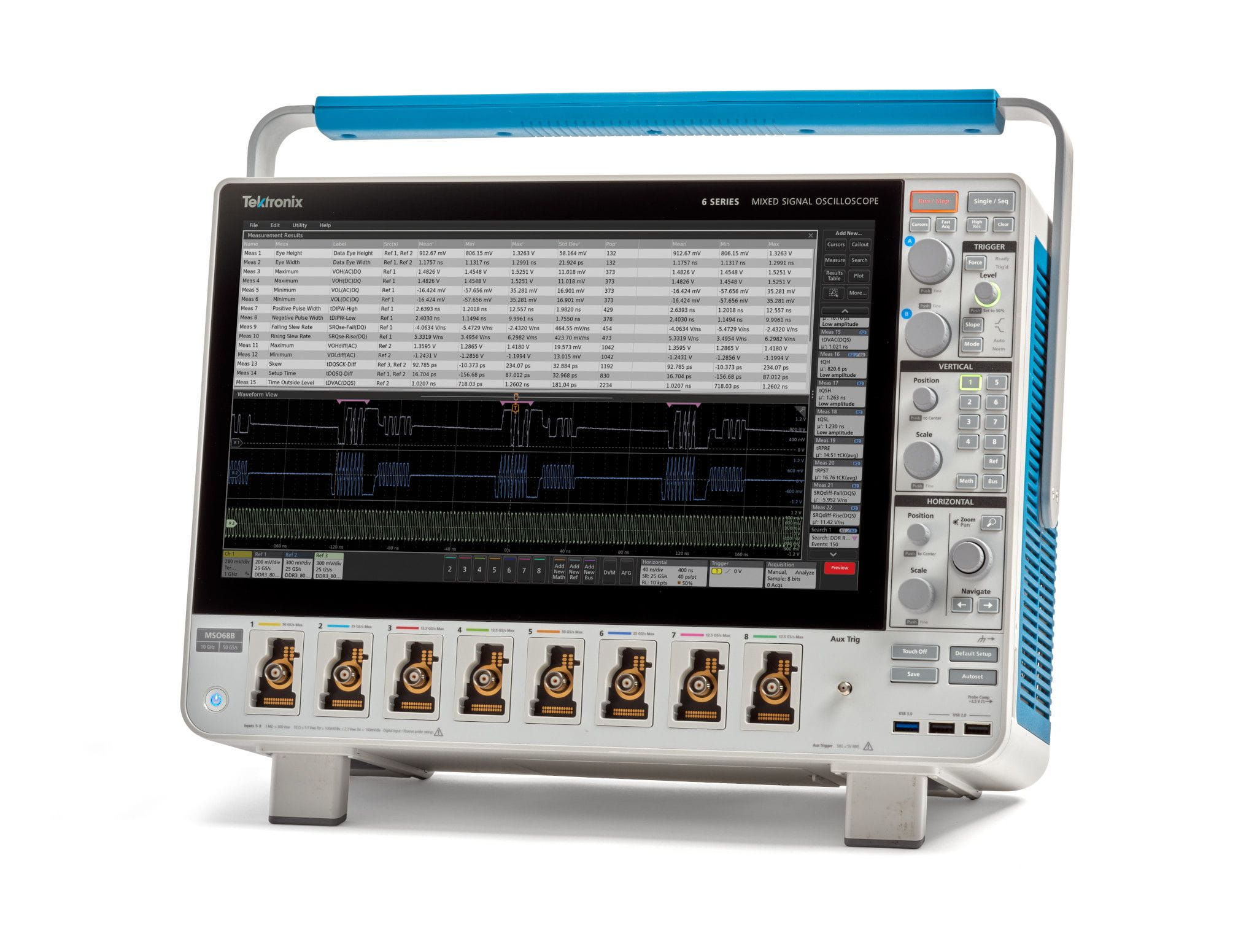

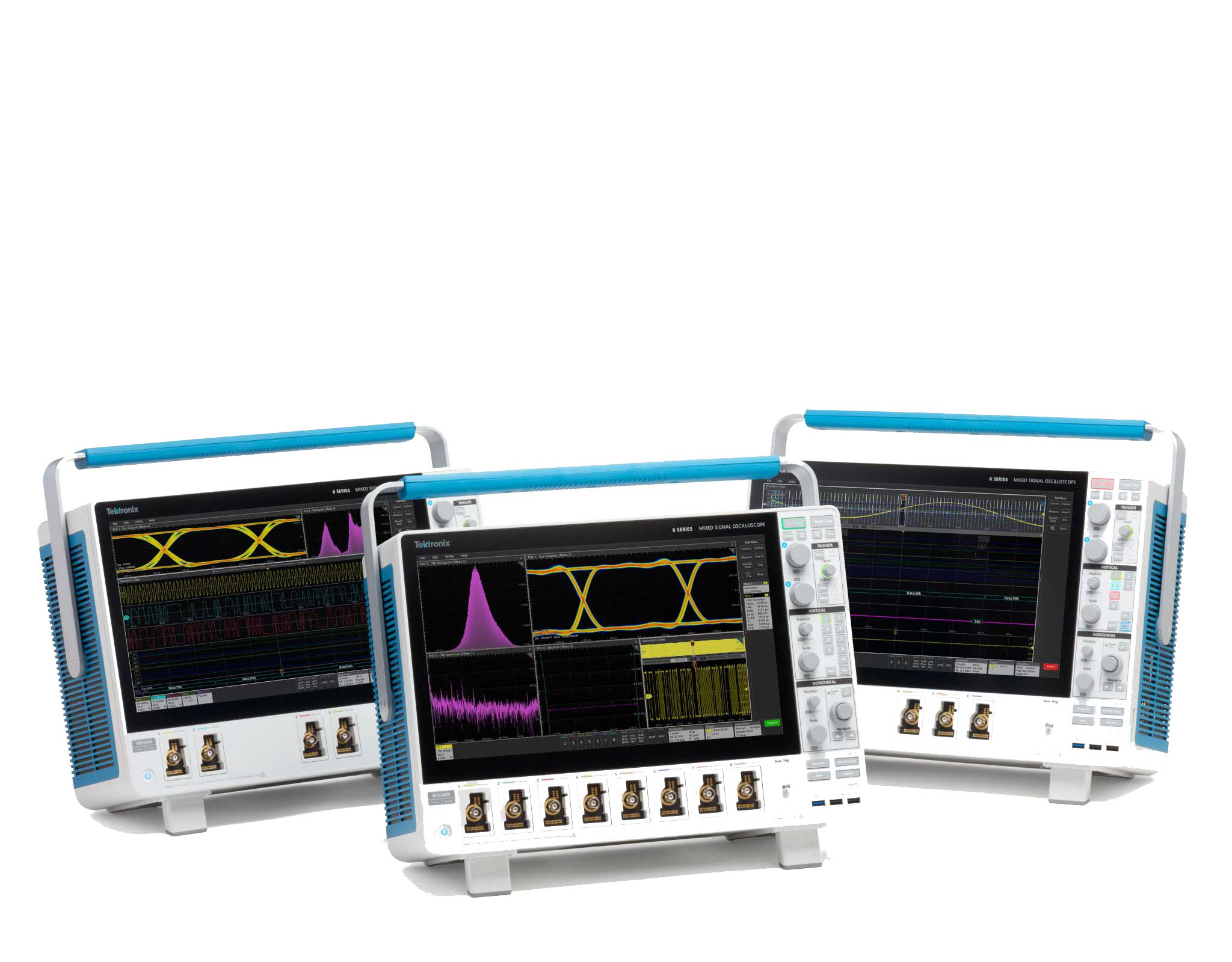

6 系列 MSO 混合信号示波器

使用 1 GHz 至 8 GHz 的可升级带宽对现有和未来高速设计进行故障排除和验证。通过低噪声和每条通道 25 GS/s 的采样率进行准确测量,在同时打开多个通道时采样率也不会下降。

基本价格
US $26,500
购买/报价 有问题?现在就聊
带宽

高达 8 GHz

采样率

每条通道 25 GS/s

记录长度

高达 250 M 样点

垂直分辨率

12

高分辨率时噪声最低

在 1mV/div 时,与传统示波器相比,噪声降低超过 75%

看到从未见过的信号。

  • 示波器前端 ASIC 芯片 TEK061 实现超低的本底噪声。
  • 4 GHz 时为 12 位分辨率,200 MHz 时高达 16 位分辨率
缩略图 观看低噪声背后的科学原理

轻松进行高级测量与分析

6 系列 - 抖动分析配置
6 系列 - 电源质量
6 系列 - 高速串行
6 系列 - 四通道

在 GHz 时钟与串行总线上轻松检定抖动。 通过综合高级测量,可轻松地将统计资料纳入日常工具包。 例如,对于抖动或高级功率分析,使用与例行上升时间和 rms 测量相同的拖放操作。

  • 高级抖动分析
  • 高级功率分析
  • 低噪声纹波测量
  • 内存分析和调试
  • 高速串行一致性
  • 自动化测量与趋势分析
  • 频谱视图频域显示

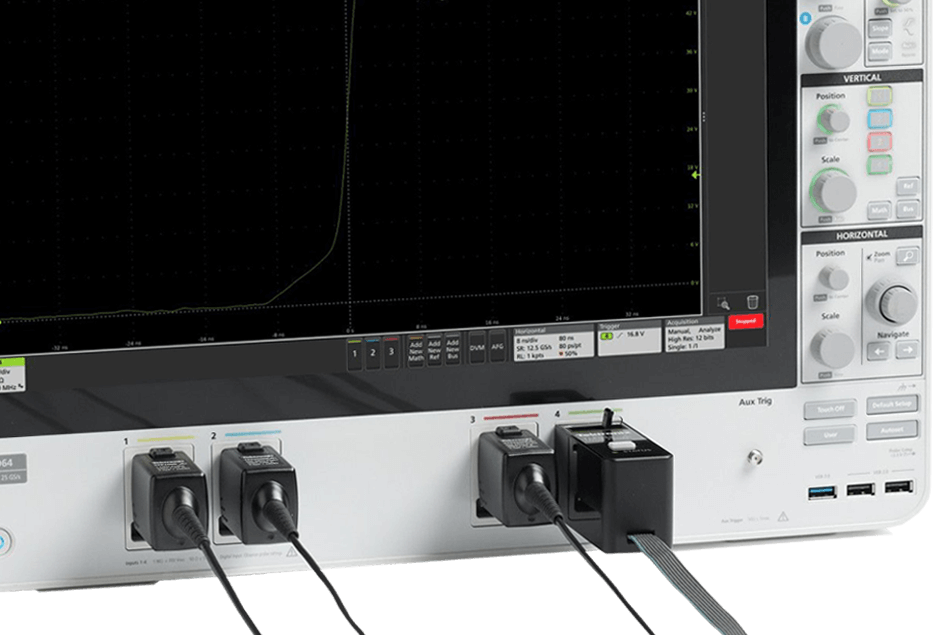

使用探头确保信号保真度


通过四个 FlexChannel® 输入实现多种功能。 使用标配的 1 GHz、10x 探头探测电路。 可以连接高性能单端探头或者差分探头,或者通过新的 TriMode 探头实现一个探头同时进行单端和差分量测。 将 TLP058 探头连接至任意通道实现 8 路数字通道 – 最多达 32 条数字通道。

  • 1 MΩ 至 50 Ω 输入阻抗
  • 附带四个 1 GHz 低负载无源探头
  • TDP7700 系列 4、6 和 8 GHz TriMode 探头
  • TAP4000TDP4000 4 GHz 单端和差分探头

FlexChannel 输入

1 个高分辨率模拟输入

每条通道 8 个数字逻辑输入

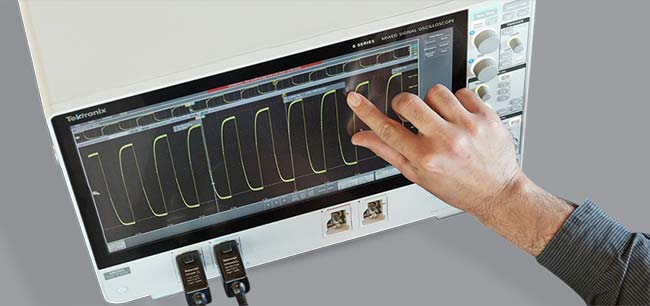

所用触摸屏

  • 15.6 英寸响应超快的触摸屏
  • 开合/缩放/滑动
  • 按钮和鼠标操作

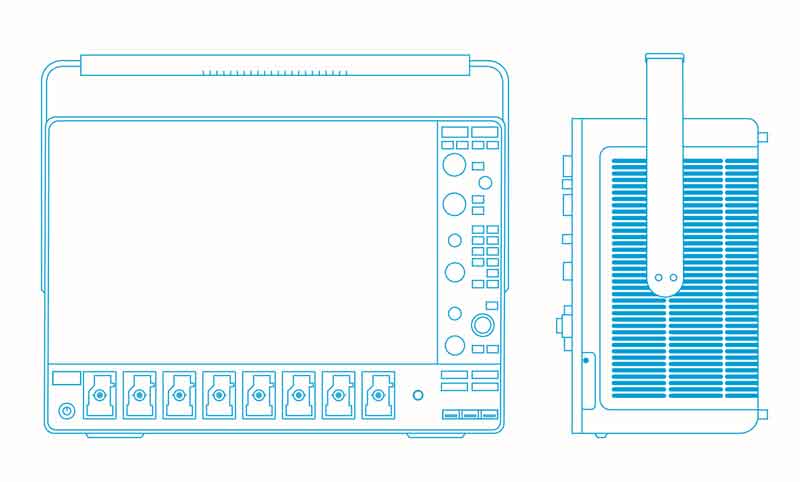

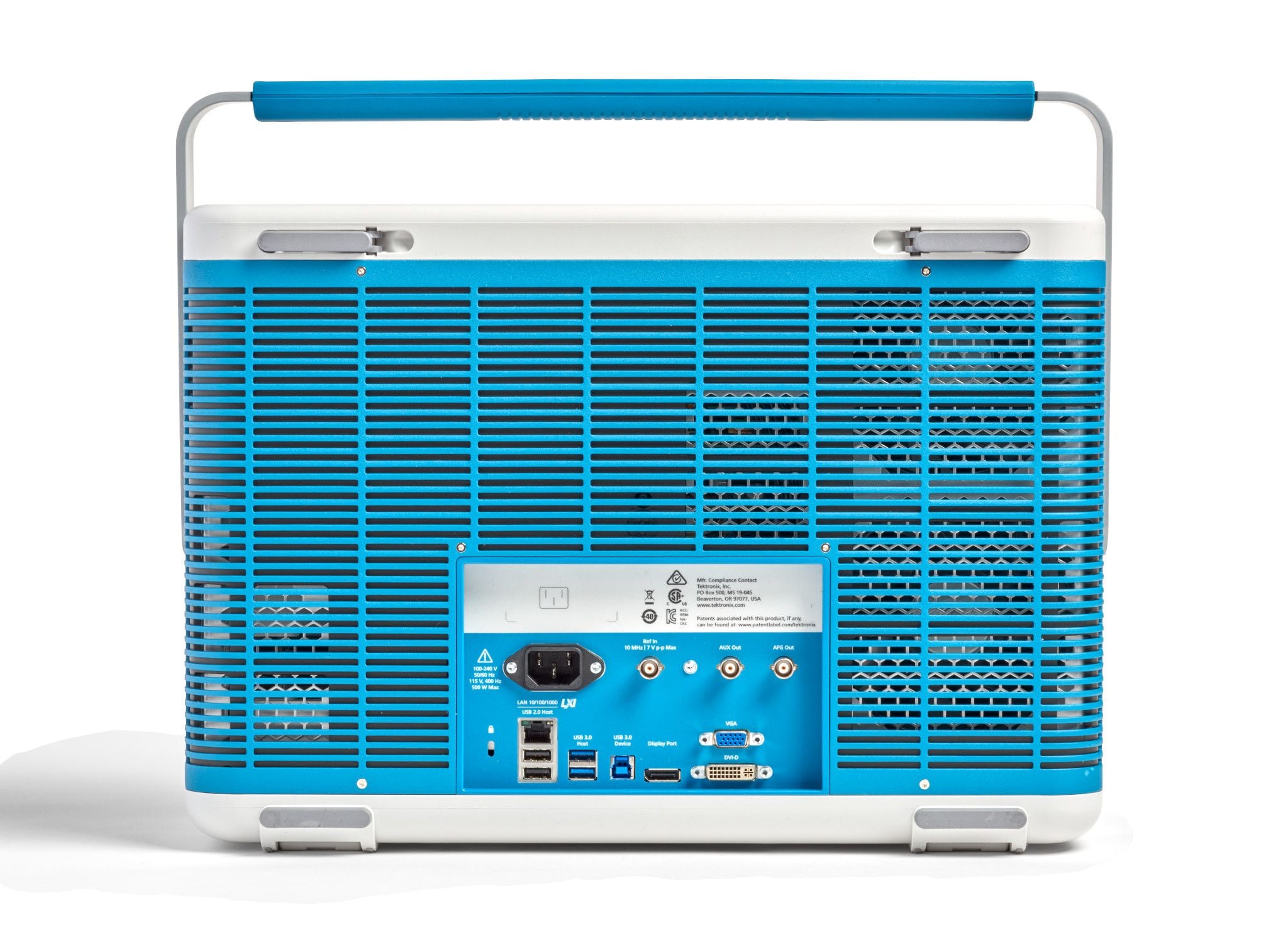

数字置信度

输入通道
4 FlexChannel 输入。
每个 FlexChannel 提供一个模拟信号输入或者通过 TLP058 探头实现 8 路数字通道输入

带宽1
1、2.5、4、6 或 8 GHz

采样率
在所有模拟/数字通道上为 25 GS/s

记录长度1
在所有模拟/数字通道上最高为 250 M 样点

信号发生器1
任意、正弦、方波、脉冲、锯齿波、三角形、DC 电平、高斯、洛伦兹、指数上升/下降、 Sin(x)/x、随机噪声、半正弦、心电图

数字电压表2
4 位

触发频率计数器2
8 位

显示器
15.6 英寸 (385 mm)
TFT 彩色 HD (1,920 x 1,080) 分辨率电容式(多点触摸)触摸屏

1 - 可选且可升级
2 - 产品注册后免费

在需求改变时,添加功能或性能

  • 将带宽升级至 8 GHz
  • 将每条通道上的记录长度增至 250  M 样点
  • 增加逻辑探头,最多时实现 32 路数字通道
  • 添加 Windows 10 操作系统
  • 添加任意波形/函数发生器
  • 添加高级分析:串行解码/触发、电源、抖动、
    存储器分析和调试以及自动一致性测试

新功能和选项让这款优秀的示波器表现更佳

新选项

使用高级分析选项在仪器上免费升级

  • 配备模板测试选件的仪器将获得极限测试功能

在所有仪器上免费升级

  • 标注/书签让您可以对波形上的特定点或显示器上的任何位置进行注释
  • 频谱视图中的频率轴现在可能是对数形式
  • 相位噪声图现在可用于相位噪声测量

已经有 6 系列?获取您的更新。

下载新固件。

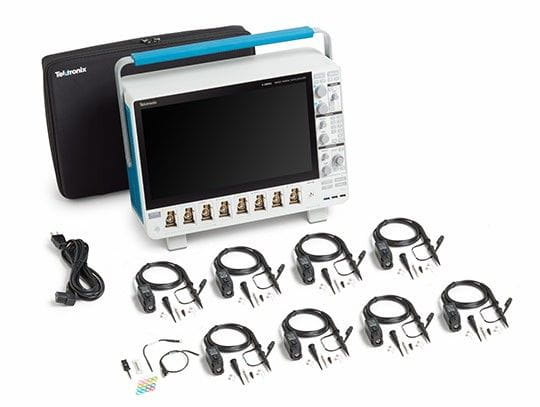

包装箱里有什么物品?

  • 4 TPP1000 1 GHz、低电容无源探头
  • 针对随附探头的 1 年保修
  • 针对仪器的 3 年保修
  • 鼠标、电源线和附有附件袋的前盖
  • 印刷的安装手册涵盖安全和基本操作
  • 全面的集成在线帮助
  • 追溯证明
配置和报价
型号 模拟带宽 采样率 记录长度 模拟通道 数字通道数 函数发生器输出 报价
MSO64

1 GHz - 8 GHz

25 GS/s

62.5 - 250 M 样点

4

可达 32 条(可选)

1 (optional)

US $26,500
配置和报价
价格:价格如有变更,恕不另行通知。
型号 模拟带宽 采样率 记录长度 模拟通道 数字通道数 函数发生器输出 报价
MSO64

1 GHz - 8 GHz

25 GS/s

62.5 - 250 M 样点

4

可达 32 条(可选)

1 (optional)

US $26,500
配置和报价
价格:价格如有变更,恕不另行通知。
  泰克
6 系列 MSO
泰克
5 系列 MSO
Keysight
S 系列
Rohde 与 Schwarz
RTP 系列
Rohde 与 Schwarz
RTO 系列
LeCroy
WavePro HD
详细比较 -- -- 速查资料 速查资料 速查资料 速查资料
带宽范围 1 GHz - 8 GHz 350 MHz 至 2 GHz 500 MHz 至 8 GHz 4 GHz - 8 GHz 600 MHz 至 6 GHz 2.5 GHz - 8 GHz
带宽(四条通道上) 8 GHz 2 GHz 4 GHz 8 GHz 4 GHz 4 GHz
可升级带宽
模拟通道数目 4 4、6 或 8 4 4 2 或 4 4
通道输入阻抗 50 Ω,1 MΩ 50 Ω,1 MΩ 50 Ω,1 MΩ 50 Ω 50 Ω,1 MΩ 50 Ω,1 MΩ
模拟采样率(四条通道上) 高达 25 Gs/s 高达 6.25 GS/s 高达 10 GS/s 高达 20 GS/s 高达 20 GS/s 高达 10 GS/s
标配记录长度(四条通道上) 62.5 M 点 62.5 M 点 100 M 点 50 M 点 50 M 点 50 M 点
集成任意波形/函数发生器 50 MHz(可选) 50 MHz(可选) 100 MHz(可选)
数字/逻辑分析通道 (MSO) 多达 32 条(选配) 可达 64(可选) 16 条(可选) 16 条(可选) 16 条(可选) 16 条(可选)
波形捕获率(波形/秒) >500,000 >500,000 >1,100 950,000 >1,000,000 不适用
1 GHz、4GHz、8GHz 条件下 1mV/div 时的 RMS 噪声 60 µV、97 µV、169 µV 254 µV、不适用、不适用 90 µV、153 µV、260 µV NA、270 µV、430 µV 100 µV、240 µV、不适用 NA、228 µV、315 µV
ADC 分辨率 12 位 12 位 10 位 8 位 8 位 12 位
操作系统 嵌入式操作系统
Windows 10(选配)
嵌入式操作系统
Windows 10(选配)
Windows 10 Windows 10 Windows 7 Windows 10
标准探头 1 GHz 无源探头
3.9 pF 负载
最高 1 GHz 无源探头
3.9 pF 负载
500 MHz Passive
9.5 pF loading
500 MHz 无源
10 pF 负载
500 MHz 无源
10 pF 负载
标准保修 3 年 3 年 1 年 3 年 3 年 3 年

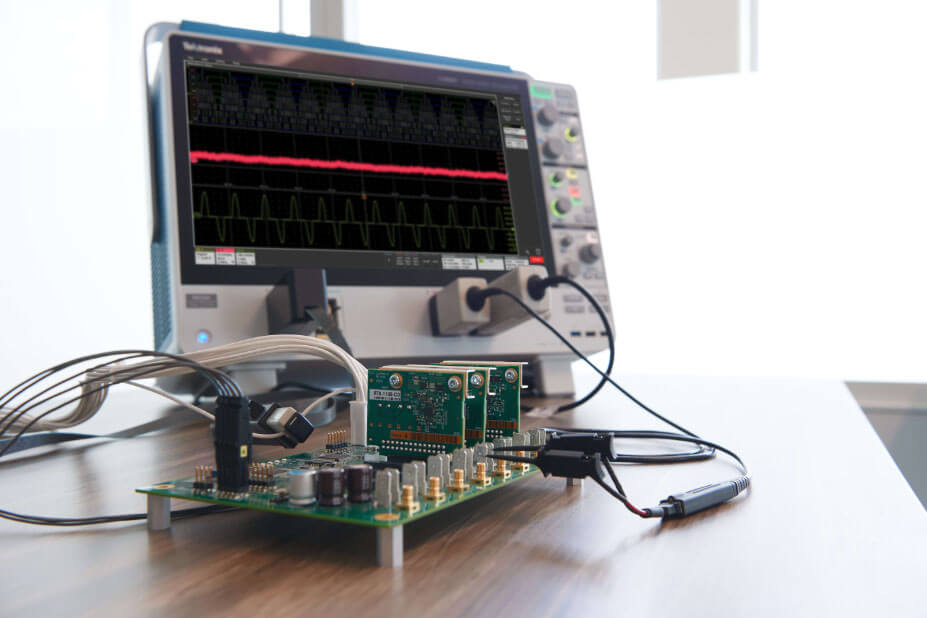

电源分析

MSO64-前端应用

通过自动化功率测量与分析确保电源质量、谐波、开关损耗、安全操作区测量等可靠且可重复。 通过 SPMI 解码和触发来节省时间。 依靠 6 系列 MSO 低噪声性能准确评估电源噪声。

特点

  • 电源质量和谐波
  • 开关损耗和安全作业区
  • 电路内电感器和变压器分析
  • SPMI 电源管理总线解码和触发

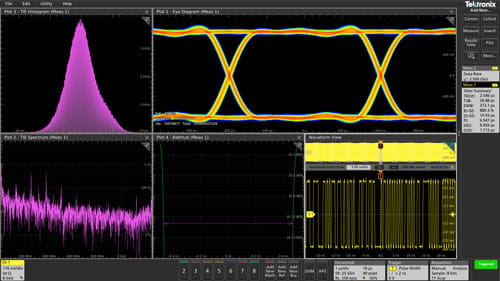

抖动分析

6 系列 - 抖动分析配置

时钟在每个嵌入式系统和数字通信链路的中间位置。 抖动和其他时钟失真可能会影响系统运行,而不使用正确的分析工具将很难了解其根源。

特点

  • 标准相位噪声、时钟抖动和定时以及波形直方图
  • 选配高级分析、抖动分解和时钟恢复

串行标准一致性测试

MSO64 配监视器

系统依赖快速、可靠的数据传输。 高速数字标准依赖严格的测试程序来确保可靠性。 自动化一致性测试软件与 6 系列 MSO 共同管理整个测试过程 - 设置、测量、按照标准极限检查并生成全面报告。

特点

  • 以太网 10/100/1000BASE-T
  • 以太网 XGBT 一致性
  • 以太网 NBASE-T 一致性
  • USB 2.0
  • MIPI D-PHY 1.2

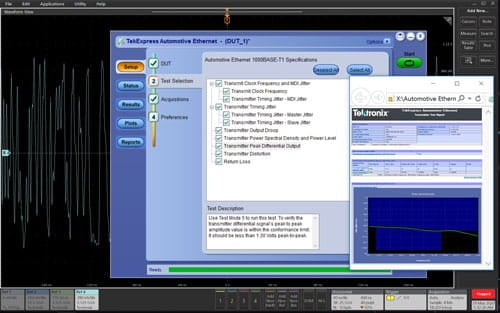

  • 汽车以太网 100/1000BASE-T1

电源完整性

6 系列 - 电源完整性

如今的电路板可以有 20 个或更多的电源轨。其中有许多只有几伏,且有严格的噪音限制。需要特别注意准确测量。

特点

  • 数字电源管理选件可自动执行纹波和开/关测量

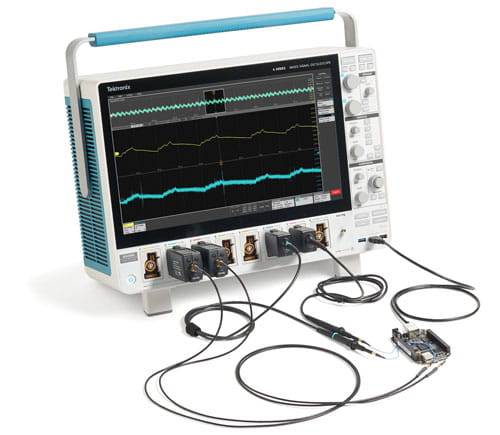

  • 兼容低噪音 TPR 系列电源轨探头
  • 低测量系统噪音
产品技术资料 软件包 / 软件选件 描述 配置和报价

访问数字通道

升级 描述 采购详情
TLP058 逻辑探头 各探头访问任何 FlexChannel 上的 8 条数字通道,在任意 FlexChannel 上均可接入逻辑探头实现 8 路数字通道 索取此探头的报价

增加仪器功能

升级 描述 采购详情
SUP6-AFG 增加任意函数发生器 申请试用许可证

索取报价
SUP6-DVM 增加数字电压表/触发频率计数器 注册时提供的软件升级许可文件。
立即注册。
SUP6-RL-1 将记录长度增至 125 M 点/通道 申请试用许可证

索取报价
SUP6-RL-1T2 将记录长度从 125 M 点/通道扩展到 250 M 点/通道 申请试用许可证

索取报价
SUP6-RL-2 将记录长度增至 250 M 点/通道 申请试用许可证

索取报价
SUP6-WIN 增加安装 Windows 10 系统许可的可移除固态硬盘。 无法试用

索取报价

增加协议分析

升级 描述 采购详情
SUP6-SR8B10B 8b10b 协议解码器和搜索 申请试用许可证

索取报价
SUP6-SRAERO 航空串行触发和分析(MIL-STD-1553、ARINC429) 申请试用许可证

索取报价
SUP6-SRAUDIO 音频串行触发和分析(I2S、LJ、RJ、TDM) 申请试用许可证

索取报价
SUP6-SRAUTO 汽车串行触发和分析(CAN、CAN FD、LIN 和 FlexRay) 申请试用许可证

索取报价
SUP6-SRAUTOEN1 100BASE-T1 汽车以太网协议解码软件 申请试用许可证

索取报价
SUP6-SRAUTOSEN 汽车传感器串行触发和分析 (SENT) 申请试用许可证

索取报价
SUP6-SRCOMP 计算机串行触发和分析 (RS-232/422/485/UART) 申请试用许可证

索取报价

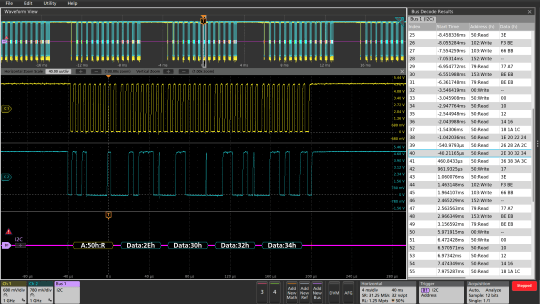

SUP6-SREMBD 嵌入式串行触发和分析模块(I2C、SPI) 申请试用许可证

索取报价
SUP6-SRENET 以太网串行触发和分析(10Base-T、100Base-TX) 申请试用许可证

索取报价
SUP6-SRI3C MIPI I3C 解码和分析 申请试用许可证

索取报价
SUP6-SRNRZ NRZ 协议解码器和搜索 申请试用许可证

索取报价
SUP6-SRPM 电源管理串行触发和分析 (SPMI) 申请试用许可证

索取报价
SUP6-SRPSI5 PSI5 串行解码和分析 申请试用许可证

索取报价
SUP6-SRSPACEWIRE SpaceWire 协议解码和分析 申请试用许可证

索取报价
SUP6-SRUSB2 USB 2.0 串行总线触发和分析(LS、FS、HS)(HS 的 ≥ 1 GHz 建议模型) 申请试用许可证

索取报价

增加串行一致性分析

升级 描述 采购详情
SUP6-AUTOEN-BND 汽车以太网一致性、信号分离、PAM3 分析、100BASE-T1 解码软件 申请试用许可证

索取报价
SUP6-AUTOEN-SS 使用 TekExpress 自动化平台的信号分离解决方案(最小带宽 1 GHz) 申请试用许可证

索取报价
SUP6-CMINDUEN10 工业以太网(10Base-T1L 长距离)自动化一致性测试解决方案 申请试用许可证

索取报价
SUP6-PAM3 使用 TekExpress 自动化平台的 PAM3 自动化一致性解决方案(最小带宽 1 GHz) 申请试用许可证

索取报价
SUP6-CMAUTOEN 汽车以太网(100Base-T1 和 1000BASE-T1)自动化一致性测试解决方案 申请试用许可证

索取报价
SUP6-CMUSB2 USB 2.0 自动化一致性预测试解决方案 申请试用许可证

索取报价
SUP6-CMENET 以太网 (10/100/1000BASE-T) 一致性测试解决方案 申请试用许可证

索取报价
SUP6-CMDPHY MIPI D-PHY 1.2 合规性测试解决方案 申请试用许可证

索取报价
SUP6-CMNBASET 以太网 (2.5/5GBASE-T) 一致性测试解决方案 申请试用许可证

索取报价
SUP6-CMXGBT 以太网 (10GBASE-T) 一致性测试解决方案 申请试用许可证

索取报价
SUP6-DBLVDS 适用于 6 系列 MSO 示波器的自动化 LVDS 测试解决方案 申请试用许可证

索取报价

增加高级分析

升级 描述 采购详情
SUP6-DPM 完整的数字电源管理分析和调试解决方案(包括 DPMBAS 中的所有测量 + 抖动分析和眼图分析) 申请试用许可证

索取报价
SUP6-DJA 高级抖动和眼图分析 申请试用许可证

索取报价
SUP6-MTM 模板和极限测试 申请试用许可证

索取报价
SUP6-PWR 功率分析 申请试用许可证

索取报价
SUP6-SV-BW-1 将频谱视图捕获带宽增加至 2 GHz 申请试用许可证

索取报价
SUP6-SV-RFVT 频谱视图射频与时间分析 申请试用许可证

索取报价
SUP6-VID 模拟视频触发(NTSC、PAL、SECAM) 申请试用许可证

索取报价

升级带宽

升级 描述 采购详情
SUP6-BWxTy4 MSO64 带宽从 x 升级为 y,其中,x 和 y 均为几百 MHz

添加内存调试和一致性

升级 描述 采购详情
SUP6-DBDDR3 DDR3 内存调试解决方案 申请试用许可证

索取报价
SUP6-CMDDR3 DDR3/LPDDR3 一致性测试 申请试用许可证

索取报价
附件 HC5
产品技术资料 描述
视图 产品技术资料 适用于 5 系列 MSO 的硬手提箱
附件 RM5
产品技术资料 描述
视图 产品技术资料 适用于 5 系列 MSO 的机架安装套件
附件 SUP6-WIN
产品技术资料 描述
视图 产品技术资料 Removable SSD with Windows license on 6 Series oscilloscopes
产品技术资料 附件 描述
HC5 适用于 5 系列 MSO 的硬手提箱
RM5 适用于 5 系列 MSO 的机架安装套件
SUP6-WIN Removable SSD with Windows license on 6 Series oscilloscopes
What's the big deal with low noise? We talked to our engineers about how they achieved ground-breaking noise performance in the 6 Series Mixed Signal Oscilloscope.
Test automation may be used to check automotive Ethernet transmitters for compliance with the BroadR-Reach, 100BASE-T1 (P802.3bw), and 1000BASE-T1 (802.3bp) standards. This demonstration shows the …
0h 4m 52s
Make extremely accurate power rail measurements using two Tektronix power rail probes, a Keithley DMM6500 touchscreen Digital Multimeter, and ultra-low-noise 6 Series mixed signal oscilloscope …
0h 1m 46s
See the ultra-low noise performance of the TPR4000 Power Rail Probe, and how it can be used for measuring DC power rail noise in microvolts, especially when paired with the 6 Series MSO …
0h 6m 15s
If you're doing mixed frequency/time domain work, Spectrum View makes it easy. Learn how to set up 5 and 6 Series MSOs to display synchronized time and frequency domain views on multiple channels …
Are you seeing ALL the noise from your power rails? Lee Morgan, Technical Marketing Manager in EMEA, demos one of our power integrity setups with a 6 Series MSO, our new Power Rail Probes, and an …
0h 1m 27s
Learn how to get optimal results from your power supply design by checking the power supply rejection ratio. This video covers how DC-DC  converters or low voltage drop-out regulators (LDOs) …
0h 8m 55s
How independent time and frequency controls beat traditional FFTs.
0h 6m 19s
Automotive Ethernet with PAM3 introduces new test challenges. Tektronix' new, innovative, non-intrusive Signal Separation simplifies Automotive Ethernet testing and set-up, providing advanced …
0h 8m 3s
Learn how 5 and 6 Series MSO Mixed-Signal Oscilloscopes and the optional embedded serial bus analysis software provide unparalleled system visibility by decoding MIL-STD 1553 messages, triggering …
0h 3m 14s
Learn how to quickly capture bursts just by drawing a couple of boxes, and how to apply logic and add more shapes to capture increasingly complex waveforms. See how visual triggers work on the 5 …
4m 5s

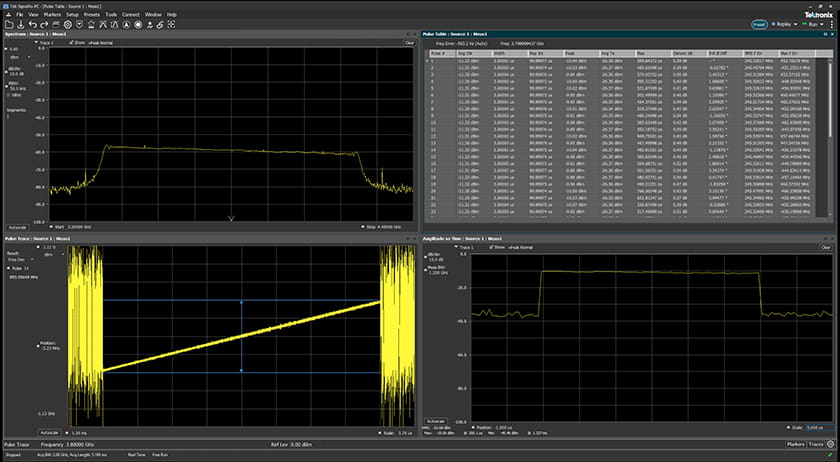

An AWG70002B was used to create a pair of 20us wide RF pulse trains at 3.85GHz. One pulse train has a constant/unchanging phase – this is our reference and is applied to Ch1. The other pulse …
3m 29s
Learn how to use the eScope function to remotely control a Tektronix oscilloscope over a network without any special software. This video shows how to find the IP address of the scope and use a …
2:14
Decoding and Searching MIPI I3C Bus Activity with an Oscilloscope
The MIPI I3C standard defines a two-wire interface with a bidirectional data bus for connecting sensors to an application processor. This application note gives a brief orientation on the physical layer and packet structures of the I3C protocol. It …

文献编号: 48W-61676-0
应用指南 Marketing Document
6 系列 MSO

文献编号: 48C-61353-8
Datasheet

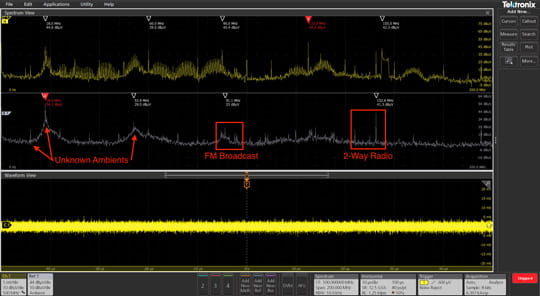

EMI Troubleshooting with the Latest-Generation Oscilloscopes
This application note describes techniques using an oscilloscope that can help you determine the source of unwanted radiated emissions (EMI), especially after an out-of-limits condition has been identified through formal testing or pre-compliance …

文献编号: 48W-61644-0
应用指南 Marketing Document
5/6 Series MSO with Option 5-SEC or 6-SEC Enhanced Security
Instrument Declassification and Security Instructions

This document describes how to clear or sanitize 5 Series and 6 Series MSO instruments that have option 5-SEC or 6-SEC installed, to allow removal from a secured area, or returning the instrument for repair.
部件号: 077140802
解密 Manual
TekExpress Automotive Ethernet (10Base-T1S) Compliance Analysis Solution
TekExpress Automotive Ethernet (10Base-T1S) Compliance Analysis Solution for 5/6 Series Mixed Signal Oscilloscope (MSO)

This document contains operation information for the TekExpress Automotive Ethernet (10Base-T1S) Compliance Analysis Solution. It is a PDF version of the help system accessible in the TekExpress software.
部件号: 077167900
主要用户 Manual
4/5/6 Series MSO
MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64 Printable Application Help

This is a printable version of the 4/5/6 Series MSO (MSO44. MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64) on-instrument help system. Supports firmware version 1.22.x.
部件号: 077130310
主要用户 Manual
6 Series MSO
Specifications and Performance Verification

Revision B. For firmware version 1.0 and above. This document contains the specifications and performance verification procedures for the 6 Series MSO instruments.
部件号: 077146103
性能验证 Manual
4, 5, 6 Series MSO (MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64)
Programmer Manual

This document describes the remote access programming commands for the MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, and LPD64 instruments. Supports firmware version 1.22.x.


部件号: 077130509
程序员 Manual
TekExpress Ethernet Compliance Solution for DPO5000/7000/70000 oscilloscopes
TekExpress Ethernet Compliance Solution for DPO5000/7000/70000 oscilloscopes

The application provides more visibility into your Ethernet designs with 1000BASE-T/100BASE-TX/10BASE-T PHY measurements as outlined in IEEE 802.3 Section 40, ANSI X3.263, and IEEE 802.3 Section 14 specific measurements for different Ethernet standards to the already existing rich tool set of generic jitter, timing, and signal quality measurements in Tektronix Oscilloscope.


部件号: 077163501
用户 Manual
TekExpress Ethernet Compliance Solution
TekExpress Ethernet Compliance Solution

This document contains operation information for the TekExpress Ethernet Tx Compliance Solution. It is a PDF version of the help system accessible in the TekExpress software.


部件号: 077150403
主要用户 Manual
4, 5, 6 Series MSO (MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64)
Programmer Manual

This document describes the remote access programming commands for the MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, and LPD64 instruments. Supports firmware version 1.20.x.


部件号: 077130508
程序员 Manual
4, 5, 6 Series MSO (MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64)
Programmer Manual

Revision A: This document describes the remote access programming commands for the MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP and MSO64 instruments. Supports firmware version 1.16.x.


部件号: 077130507
程序员 Manual
TekExpress Industrial Ethernet Compliance Solution
TekExpress Industrial Ethernet Compliance Solution

This document contains operation information for the TekExpress Industrial Ethernet Compliance Solution. It is a PDF version of the help system accessible in the TekExpress software.


部件号: 077162400
主要用户 Manual
4/5/6 Series MSO
MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64 Printable Application Help

This is a printable version of the 4/5/6 Series MSO (MSO44. MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64, LPD64) on-instrument help system. Supports firmware version 1.20.x.


部件号: 077130308
主要用户 Manual
TekExpress Automotive PAM3 Analysis Application
TekExpress Automotive PAM3 Analysis Application

Automotive Ethernet operates as a full-duplexcommunication link over a twisted-pair cable. The Full-Duplex communication, along with PAM3 signaling, adds complexity invalidating the Electronic Control Units (ECU) in real-world conditions. The TekExpress Automotive PAM3 Analysis applicationincludes unique Signal Separation capability and Electrical analysis.


部件号: 077160600
用户 Manual
TekExpress D-PHY Automated Solution for MSO6 oscilloscopes
TekExpress D-PHY Automated Solution for MSO6 oscilloscope Printable Online Help

TekExpress is the Tektronix Test Automation Framework, developed to support your current and future test automation needs. TekExpress uses a highly modular architecture that lets you deploy automated test solutions for various standards in a relativelyshort time.


部件号: 077151501
用户 Manual
6 Series MSO
Revision B: Specifications and Performance Verification

Revision A: For firmware version 1.0 and above. This document contains the specifications and performance verification procedures for the 6 Series MSO instruments.


部件号: 077146102
性能验证 Manual
4/5/6 Series MSO Option License
Install Instructions

This document describes how to install optional upgrade licenses to add new functions or features to 4/5/6 Series MSO instruments (MSO44, MSO46, MSO54, MSO56, MSO58, MSO58LP, MSO64).


部件号: 071351902
现场安装说明 Manual
5/6 Series MSO (MSO54, MSO56, MSO58, MSO58LP, MSO64)
Programmer Manual

This document describes the remote access programming commands for the MSO54, MSO56, MSO58, MSO58LP and MSO64 instruments. Supports firmware version 1.14.


部件号: 077130506
程序员 Manual
TekExpress Ethernet NBASE-T Compliance Solution
TekExpress Ethernet NBASE-T Compliance Solution

This document contains operation information for the TekExpress Ethernet NBASE-T Compliance Solution. It is a PDF version of the help system accessible in the TekExpress software.


部件号: 077152000
主要用户 Manual
TekExpress D-PHY Automated Solution for MSO6 oscilloscopes
TekExpress D-PHY Automated Solution for MSO6 oscilloscope Printable Online Help

TekExpress is the Tektronix Test Automation Framework, developed to support your current and future test automation needs. TekExpress uses a highly modular architecture that lets you deploy automated test solutions for various standards in a relatively
short time.


部件号: 077151500
用户 Manual
5/6 Series MSO (MSO54, MSO56, MSO58, MSO58LP, MSO64)
Programmer Manual

This document describes the remote access programming commands for the MSO54, MSO56, MSO58, MSO58LP and MSO64 instruments. Supports firmware version 1.12.


部件号: 077130505
程序员 Manual
Reference Waveform File Format
DPO70000SX, TDS5000, TDS6000/B, TDS7000/B, CSA7000/B, DPO7000/C, DPO70000/B/C/D/DX, DSA70000/B/C/D, MSO70000/C/DX, MSO5000/B, DPO5000/B Series, 5 Series MSO, and 6 Series MSO

This document specifies the reference waveform file format for the instrument.


部件号: 077022011
程序员 Manual
6 Series MSO
MSO64

This manual provides theory of operation, service instructions, and a list of replaceable parts for the 6 Series MSO instruments.


部件号: 077146200
维修 Manual
6 Series Mixed Signal Oscilloscope
MSO64 Installation and Safety

This manual describes installing and setting up the 6 Series oscilloscope, and introduces the User Interface and basic oscilloscope operations.

Learn the XYZ's of Oscilloscopes »


部件号: 071357900
用户 Manual
RM5
Rackmount Kit for 5/6 Series MSO

This document supports installing Tektronix 5/6 Series instruments in a rackmount kit to fit in a standard 19-inch equipment rack.


部件号: 071352302
现场安装说明 Manual
5/6 Series MSO With Option 5-SEC Enhanced Security
Instrument Declassification and Security Instructions

This document describes how to clear or sanitize 5 Series MSO instruments (MSO54, MSO56, MSO58) that have option 5-SEC installed, to allow removal from a secured area, or returning the instrument for repair.


部件号: 077140801
解密 Manual
Read This First
Update your 5/6 Series MSO with the latest firmware

This is a reminder to update your instrument with the latest firmware.


部件号: 061442001
现场安装说明 Manual
5/6 Series MSO Option SUP5-WIN, SUP6-WIN
SSD with Microsoft Windows 10 Upgrade Kit

This document describes how to install the Microsoft Windows 10 environment SSD option on the 5/6 Series MSO instruments (MSO54, MSO56, MSO58, MSO64), and how to activate Windows after installation.


部件号: 071352401
现场安装说明 Manual
5/6 Series MSO MSO5, MSO56, MSO58, MSO58LP, MSO64
Install Upgrade Options

This document describes how to install optional upgrade licenses to add new functions or features to 5/6 Series MSO instruments (MSO54, MSO56, MSO58, MSO58LP, MSO64).


部件号: 071351901
现场安装说明 Manual
TekExpress Automotive Ethernet (10BASE-T1S/100BASE-T1/1000BASE-T1) Automated Compliance Solution - MSO5 and MSO6 series - V1.3.0
Tektronix TekExpress Automotive Ethernet solution provides automated compliance test support for 10BASE-T1S (IEEE Std 802.3cg) standard, 100BASE-T1 (IEEE Std.802.3bw) and 1000BASE-T1 (IEEE Std 802.3bp™-2016) standard for Transmitter electrical test …

部件号: 066208900
应用
6 Series MSO (Windows OS) Firmware - V1.24.9
Download this firmware to install the latest updates for the 6 Series MSO oscilloscopes. This firmware only applies to oscilloscopes that have option 6-WIN (Windows 10) installed.

部件号: 066198606
固件
6 Series MSO (non-Windows) Firmware - V1.24.9
Download this firmware to install the latest updates for 6 Series MSO and 6 Series Low Profile Digitizer. This firmware only applies to instruments that do not have option 6-WIN (Windows 10) installed.

部件号: 066198506
固件
6 Series MSO (Windows OS) Firmware - V1.22.5
Download this firmware to install the latest updates for the 6 Series MSO oscilloscopes. This firmware only applies to oscilloscopes that have option 6-WIN (Windows 10) installed.

部件号: 066198604
固件
6 Series MSO (non-Windows) Firmware - V1.22.5
Download this firmware to install the latest updates for 6 Series MSO and 6 Series Low Profile Digitizer. This firmware only applies to instruments that do not have option 6-WIN (Windows 10) installed.

部件号: 066198504
固件
TekExpress Automotive Ethernet (100BASE-T1/1000BASE-T1) Automated Compliance Solution - MSO5 and MSO6 series - V1.2.9
Tektronix TekExpress Automotive Ethernet solution provides automated compliance test support for 100Base-T1 (IEEE Std.802.3bw) and 1000Base-T1 (IEEE Std 802.3bp™-2016) standard for Transmitter electrical test specification as per Open Alliance. The …

部件号: 066186014
应用
TekExpress Ethernet (1000BASE-T,100BASE-TX and 10BASE-T) Compliance Solution - 5 and 6 Series MSO - V1.2.1
With TekExpress Ethernet Compliance Test Software, engineers validating an Ethernet physical layer can perform reliable compliance tests of 10Base-T, 100Base-TX and 1000Base-T technologies in their labs. This application enhances efficiency with …

部件号: 066196755
应用
4, 5 and 6 Series MSO, 5 and 6 Series Low Profile Digitizers IVI-COM Driver - V1.6.0
TekSeriesScope IVI-COM Driver for 4, 5 and 6 Series Mixed Signal Oscilloscopes; 5 and 6 Series Low Profile Digitizers IVI Scope class-compliant driver. It complies with Scope Class specifications (IVI-4.1) as defined by the IVI foundation. An IVI …

部件号: 066192807
驱动程序
Tektronix TekExpress LVDS Automated test solution on the 5/6 Series MSO V1.0.0.
The Tektronix TekExpress LVDS transmitter test application offers a physical layer test solution for transmitter parameter measurements and characterization.

部件号: 066170911
应用
TEKVISA Connectivity Software - V4.2.0
TekVISA is the Tektronix implementation of VISA (Virtual Instrument Software Architecture), an industry-standard communication protocol.When installed on a PC, TekVISA provides communication with instruments that are connected to the PC via various …

部件号: 066093812
驱动程序
TekExpress Industrial Ethernet (10BASE-T1L) Automated Compliance Solution - MSO5 and MSO6 series - V1.0.0
TekExpress Industrial Ethernet Compliance Solution - MSO 5000 and 6000The TekExpress Industrial Ethernet application (10Base-T1L) is a compliance test solution for performing transmitter electrical specification measurements and MDI return loss …

部件号: 066203600
应用
6 Series MSO (non-Windows) Firmware - V1.20.7
Download this firmware to install the latest updates for the 6 series MSO oscilloscopes. This firmware only applies to oscilloscopes that do not have option 6-WIN (Windows 10) installed.

部件号: 066198503
固件
6 Series MSO (Windows OS) Firmware - V1.20.7
Download this firmware to install the latest updates for the 6 series MSO oscilloscopes. This firmware only applies to oscilloscopes that have option 6-WIN (Windows 10) installed.

部件号: 066198603
固件
TekExpress Automotive PAM3 Analysis Solution - MSO5 and MSO6 series - V1.0.0
The Tektronix TekExpress Automotive PAM3 Analysis is an automated test solution for performing Signal Separation on a Full duplex 100BASE-T1 Automotive Ethernet signals at system level. User can perform measurements like eye height and eye width can …

部件号: 066203300
应用
6-CMDPHY - 6 Series MSO - V1.1.0
TekExpress D-PHY Tx software with Option 6-CMDPHY provides unmatched automation for each test with auto-cursor setting or automatic identification of gating areas. This solution supports the D-PHY base specification v1.2 and the D-PHY conformance …

部件号: 066170812
应用
4, 5 and 6 Series Mixed Signal Oscilloscope IVI-COM Driver - V1.5.0
The TekSeriesScope IVI-COM Driver for 4, 5 and 6 Series Mixed Signal Oscilloscopes is an IVI Scope class-compliant driver. It complies with Scope Class specifications (IVI-4.1) as defined by the IVI foundation. An IVI class-compliant specific driver …

部件号: 066192806
驱动程序
6 Series MSO (Windows OS) Firmware - V1.16.6
Download this firmware to install the latest updates for the 6 series MSO oscilloscopes. This firmware only applies to oscilloscopes that have option 6-WIN (Windows 10) installed.

部件号: 066198602
固件
6 Series MSO (non-Windows) Firmware - V1.16.6
Download this firmware to install the latest updates for the 6 series MSO oscilloscopes. This firmware only applies to oscilloscopes that do not have option 6-WIN (Windows 10) installed.

部件号: 066198502
固件
TekExpress DDR (DDR3 and LPDDR3) - v1.0.0
DDR (Dual Data Rate) is a dominant and fast-growing memory technology. It offers high data transfer rates needed for all computing applications, from the consumer products to the most powerful servers. The high speeds of these signals require a high …

部件号: 066196770
应用
TekExpress Automotive Ethernet (100BASE-T1/1000BASE-T1) Automated Compliance Solution - MSO5 and MSO6 series - V1.2.8
Tektronix TekExpress Automotive Ethernet solution provides automated compliance test support for 100Base-T1 (IEEE Std.802.3bw) and 1000Base-T1 (IEEE Std 802.3bp?-2016) standard for Transmitter electrical test specification as per Open Alliance. The …

部件号: 066186013
应用
6 Series MSO (Windows OS) Firmware - V1.14.13
Download this firmware to install the latest updates for the 6 series MSO oscilloscopes. This firmware only applies to oscilloscopes that have option 6-WIN (Windows 10) installed.

部件号: 066198601
固件
TekExpress Ethernet Nbase-T Automated Compliance Solution - MSO 6 - V1.0.0.70
TekExpress Ethernet NBASE-T Conformance Solution provides turnkey testing & characterization solution for 10GBASE-T measurements as outlined in IEEE 802.3 Section 55, and for 5GBASE-T and 2.5GBASE-T as outlined in IEEE P802.3bz, Section 16; NBASE-T …

部件号: 066200100
应用
TekExpress Automotive Ethernet (100BASE-T1/1000BASE-T1) Automated Compliance Solution - MSO5 and MSO6 series - V1.2.5
The Tektronix TekExpress Automotive Ethernet solution provides automated compliance test support for 100Base-T1 (IEEE Std.802.3bw) and 1000Base-T1 (IEEE Std 802.3bp™-2016) standard for Transmitter electrical test specification as per Open Alliance …

部件号: 066186012
应用
5-CMUSB2, 6-CMUSB2 - 5 Series MSO, 6 Series MSO - V1.2.3
The Tektronix USB2.0 compliance test application (Opt. 5-CMUSB2, Opt. 6-CMUSB2) running on a 5 Series MSO and 6 Series MSO oscilloscope provides a one-button compliance testing for USB2.0 devices, hosts, and hubs. The USB software automates the …

部件号: 066166808
应用
Debugging SPMI Power Management Buses with an Oscilloscope
Designers of mobile devices and other portable systems rely on the System Power Management Interface (SPMI) protocol to monitor and dynamically control supply voltages based on real-time system demands. Enabling them to achieve lower power usage at …

文献编号: 48W-61436-0
应用指南 Marketing Document
Debugging SENT Automotive Buses with an Oscilloscope
The SENT bus is used in automotive sensors to transmit high-resolution measurements to electronic control units (ECUs), usually in the powertrain. Decoding the Single Edge Nibble Transmissions (SENT) by looking at the signals can be very difficult …

文献编号: 55W-61326-1
应用指南 Marketing Document
Rohde & Schwarz RTO2000 Series vs. 6 Series MSO Mixed Signal Oscilloscope Comparison
This fact sheet compares important specifications and features of the Tektronix 6 Series MSO Mixed Signal Oscilloscope to those of the Rohde & Schwarz RTO2000 Series.

文献编号: 48W-61425-0
竞争 Marketing Document
Rohde & Schwarz RTP Series vs. 6 Series MSO Mixed Signal Oscilloscope Comparison
This fact sheet compares important specifications and features of the Tektronix 6 Series MSO Mixed Signal Oscilloscope to those of the Rohde & Schwarz RTP Series.

文献编号: 48W-61426-1
竞争 Marketing Document
Control Loop Analysis Kit for Power Design Stability Measurements
This document describes how the Tektronix Control Loop Analysis Kit provides a simple test setup for validating and debugging feedback loop stability.  This setup also enables engineers to test power supply rejection ratio (PSRR) on the regulator …

文献编号: 55W-61596-0
应用程序概述 Marketing Document
Characterizing and Troubleshooting Jitter with Your Oscilloscope
Gives examples of jitter analysis, from basic analysis using frequency and Time Interval Error (TIE) measurements, to more advanced jitter decomposition techniques to help isolate the sources of jitter.  Shows examples of jitter measurements using …

文献编号: 55Z-61099-1
应用指南 Marketing Document
In-circuit Measurement of Inductors and Transformers with an Oscilloscope
An oscilloscope can be used to measure the performance of inductors and transformers under operating conditions.  This application note: Provides a quick review of practical inductor and transformer theory, especially related to power supply …

文献编号: 55W-61401-2
应用指南 Marketing Document
Getting Started with Power Rail Measurements Application Note
No matter the industry, power integrity requirements are becoming more and more strict and the number of critical power rails in a single design is only growing. Traditional power integrity applications typically use passive probes with AC coupling …

文献编号: 51W-61562-0
应用指南 Marketing Document
Using FastFrame Segmented Memory on the 4/5/6 Series MSO
Communications systems, RADAR, and ultrasonic sensors all rely on signals that transfer information in bursts followed by dead time. Processor interrupt pulses can occur intermittently and infrequently. Conventional signal-shot acquisitions on …

文献编号: 55W-61299-2
技术简介 Marketing Document
LeCroy WavePro HD Series vs. 6 Series MSO Mixed Signal Oscilloscope Comparison
This fact sheet compares important specifications and features of the Tektronix 6 Series MSO Mixed Signal Oscilloscope to those of the LeCroy WavePro HD Series.

文献编号: 48W-61427-0
竞争 Marketing Document
Probing Techniques for Accurate Voltage Measurements on Power Supplies with Oscilloscopes
Making oscilloscope voltage measurements on power supplies is fundamental, but not without challenges. Much is  written on oscilloscopes, but probing techniques are often taken for granted. This application note focuses on probing and …

文献编号: 51W-60161-3
应用指南 Marketing Document
Making Higher Accuracy Oscilloscope Measurements
12-bit analog-to-digital converters deliver higher resolution on the 4, 5 and 6 Series MSO oscilloscopes Higher resolution oscilloscope measurements are becoming more important given today’s signal levels. Scopes are available with 12-bit analog-to …
技术简介 Marketing Document
Automated Compliance Testing of MIPI D-PHY Physical Layer
The MIPI Alliance has defined tests to ensure that MIPI D-PHY transmitter designs conform to MIPI standards.  D-PHY compliance testing is usually performed using an oscilloscope and may be automated to speed up testing, reduce errors and simplify …

文献编号: 48W-61638-0
应用指南 Marketing Document
Keysight S-Series vs. 6 Series MSO Mixed Signal Oscilloscope Comparison
This fact sheet compares important specifications and features of the Tektronix 6 Series MSO Mixed Signal Oscilloscope to those of the Keysight S-Series.

文献编号: 48W-61424-2
竞争 Marketing Document
Physical Layer Compliance Testing for 1000BASE-T Ethernet
Ethernet compliance testing requires precise test setups and evaluation against limits dictated by IEEE 802.3 standards.  Automated testing software for oscilloscopes greatly simplifies and speeds testing.  This application note summarizes key tests …

文献编号: 48W-61620-0
应用指南 Marketing Document
Visual Triggers: Graphical Methods for Capturing Bursts and Other Complex Signals on Oscilloscopes
Visual triggers allow you to build triggers by thinking in terms of wave shapes. This technical brief starts by explaining how to quickly capture bursts of specific length by drawing boxes on an oscilloscope display. It then describes how to apply …

文献编号: 48W-61452-0
技术简介 Marketing Document
Making Accurate Current Measurements on Power Supplies with Oscilloscopes
Accurately measuring current with oscilloscopes is essential for power supply design and general electronics. Learn how to measure current using shunt resistors and voltage probes, and how to use clamp-on current probes with your oscilloscope. Get …

文献编号: 51W-60171-2
应用指南 Marketing Document
Next-Generation Oscilloscopes Brochure - 3 Series MDO, 4 Series MSO, 5 Series MSO, 6 Series MSO
The 3 Series MDO and 4, 5 and 6 Series MSOs offer the largest displays and the greatest user experience of any oscilloscope.  This brochure gives an overview of the platforms, with the similarities and differences between the four series.

文献编号: 48W-61573-0
手册 Marketing Document
Achieve Higher Vertical Resolution for More Precise Measurements
This white paper describes an approach in which new oscilloscope ADC technology, combined with digital signal processing and a low-noise front end; can provide even higher resolution than found in conventional high bit-rate ADC implementations.
白皮书 Marketing Document
Automated Low Voltage Differential Signaling (LVDS) Measurements
Low Voltage Differential Signaling (LVDS) is a popular signaling system for applications requiring high speed data transfers using low power. This application note explains the basic elements of LVDS signaling, details measurements based on an …

文献编号: 48W-61639-0
应用指南 Marketing Document
Measuring Digital Clock Stability and Jitter with an Oscilloscope
This application note explains how to use oscilloscope measurements to quantify the performance of any digital clock, including processor clocks and communications clocks. It briefly covers amplitude measurements and focuses on clock frequency …

文献编号: 48W-61379-1
应用指南 Marketing Document
Measuring Power Supply Switching Loss with an Oscilloscope
Losses due to dissipation in switching devices such as MOSFET's and IGBT's contribute significantly to the overall losses in switch mode power supplies.  This application note explains how to measure switching loss and conduction loss in power supply …

文献编号: 46W-60010-3
应用指南 Marketing Document
Ensuring the Performance and Conformance of In-Vehicle Networks for New-Generation Automobiles
Automotive Primer: In-Vehicle Networking This primer provides an overview of the trends, challenges and solutions associated with the expected future evolution of in-vehicle networks, as well as a foundation for testing in-vehicle networks to …

文献编号: 48W-61611-0
入门手册 Marketing Document
6 Series MSO Upgrade Guide
Most of the features of the 6 Series MSO are field-upgradable, including bandwidth, record length, arbitrary/function generator, logic channels, and protocol support. This 2-page fact sheet lists all available post-purchase upgrades.

文献编号: 48W-61429-5
速查资料 Marketing Document
Advanced Radar Analysis: Tools for Measuring Modern Radar Application Note
With today's rapid advances in radar technology, developing and manufacturing highly specialized and innovative electronic products to detect radar signals takes leading-edge technology and tools. Tektronix innovative test equipment reduces …

文献编号: 37W-23378-4
应用指南 Marketing Document
How to Troubleshoot System Problems Using an Oscilloscope with I2C and SPI Decoding
Learn about the physical layers of the most common interchip buses - I2C and SPI - to enable you to troubleshoot bus problems or system issues.  Learn how to set up and interpret the results when you use automated decoding, triggering, and search on …

文献编号: 55W-61091-1
应用指南 Marketing Document
Debugging CAN, LIN and FlexRay Automotive Buses with an Oscilloscope
Explains the physical layer basics of common automotive buses - CAN, LIN, and FlexRay - to enable you to troubleshoot bus problems or system issues.  Learn how to set up and interpret the results when using automated decoding, triggering, and search …

文献编号: 55W-61098-3
应用指南 Marketing Document
Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes
Spectrum View is a new way of performing spectrum analysis on an oscilloscope. This application note shows and explains how Spectrum View operates and how it differs from traditional oscilloscope FFT functions. Any analog signal may be presented as …

文献编号: 48W-61563-1
应用指南 Marketing Document
Can I mount a network drive on my standard (non-Windows) 5 or 6 Series MSO? How could I use this capability?
The oscilloscope has a built-in m.2 drive, labeled C:. This drive can be used to store waveforms, setups, and measurement results. However, this drive is not easily accessible to your computer. The oscilloscope also has several USB ports to support …
常见问题 ID474191 Faq
I received the following message about my floating license:  (This is a courtesy note to remind you that the checkout of 1 floating license(s) will soon expire.) Why am I receiving this message when I own the license?
The Floating Licenses are good forever; however, the checkout of the Floating License is good for for any duration from 4 hours up to 4 years, selectable at the time of check out.  After it reaches selected duration, it will automatically check …
常见问题 ID467516 Faq
What is the deskew range and resolution between channels for the 5 or 6 series MSO?
Both 5 and 6 series MSO support a deskew range of -125ns to +125ns. The 6 series MSO can be adjusted in 1ps resolution for all acquisition modes except Peak Detect and Envelope (40ps resolution). The 5 series MSO can be adjusted in 40ps resolution …
常见问题 ID723961 Faq
Where can I find the positive/negative pulse count auto measurement on the 5/6 Series MSO?
Currently, there is no auto measurement for the positive or negative pulse count on the 5/6 Series MSO. The workaround would be using the “Search” feature to search for the pulse width. First, set up for the positive pulse width auto …
常见问题 ID773396 Faq
What is the difference between Position and Offset on an oscilloscope?
To answer this first you need to understand the layout of how your waveform trace is displayed. On your oscilloscope you generally will see either 8 or 10 divisions vertically on the screen. Along the left side of the screen you will see a marker …
常见问题 ID247211 Faq
I recently registered our Tektronix oscilloscope, updated the firmware and am currently trying to activate the free DVM & Frequency Counter.  I don’t see any software downloads for activating the DVM. Am I doing something wrong, or looking in the wrong spot?
After you have registered your oscilloscope on Tek.com, you should have received an email with instructions.  The email is sent to the address you used to login to tek.com.  If you haven't received the email after registration: Check your spam …
常见问题 ID468046 Faq
How many digital channels are supported on the 5 and 6 Series MSO?
Each analog channel on the 5 and 6 Series MSO can be converted into 8 digital channels with the logic probe TLP058.  For a 4-channel model (MSO54, MSO64), it is up to 32 digital channels. For a 6-channel model (MSO56), it is up to 48 digital channels …
常见问题 ID468121 Faq
What is the range of the logic threshold supported on the 5 and 6 Series MSO?
The logic threshold can be set between +/-40V with the TLP058 logic probe. Each individual digital channel can be set for its own threshold level.
常见问题 ID468126 Faq
Where do I start learning about oscilloscopes and Tektronix offerings?
This document covers the basics of oscilloscopes including history and general operation, in this training presentation developed by a Tektronix Applications Engineer. Learn the XYZ's of Oscilloscopes »
常见问题 ID778971 Faq
I downloaded and Installed OpenChoice Desktop, but it doesn't recognize my scope.
Refer to the Prerequisites.txt file available to download on the same page for OpenChoice desktop. Make sure you have all the prerequisites specified.    Prerequisites 1. PC equipped with  Microsoft Windows 7 32 Bit and 64 Bit OS, Windows 8.1 32 Bit …
常见问题 ID474266 Faq
How do I upgrade the bandwidth of my 6 Series MSO and what do I get with the upgrade?
Bandwidth upgrades for the 6 Series MSO can be accomplished by ordering an upgrade product and entering a new software license into the instrument. The instrument bandwidth appears in the Help-> About menu near the top of the window, between the …
常见问题 ID474151 Faq
Where can I locate the visual trigger setup on the 5 or 6 series MSO?
The visual trigger option is not listed in the trigger type selection initially.  To setup the visual trigger, simply click on the "DRAW A BOX" icon (located in the lower right corner of the display) to draw the areas for the visual trigger.  After …
常见问题 ID723951 Faq
After I place an order for a software-license or an upgrade for my 5 or 6 Series MSO, how do I get and install the software license or the upgrade license?
After you place an order for the software license or an upgrade for your 5 or 6 Series MSO, you will receive an email (at the email address in your MyTek account). It will look about like this, but customized for you: Dear Customer …
常见问题 ID235451 Faq
What is the difference between Windows 10 on my scope and standard Windows 10?
The Windows build on Tektronix scopes is from the Long-Term Servicing Channel (LTSC), specifically Windows 10 Enterprise 2016 LTSB (Long-Term Service Branch 1607).  You can read more about the LTSC here: https://docs.microsoft.com/en-us/windows/whats …
常见问题 ID782291 Faq
How can I ungroup the channel badge on the 5/6 Series MSO?
On firmware v1.12 or above, the 5/6 Series MSO added the stacked and overlay mode mix and match feature.  It allows user to group multiple channels for overlay mode for easy comparison. To separate the channels in the group, there are couple options …
常见问题 ID773401 Faq
My Tektronix oscilloscope uses the Linux operating system.  Where do I get a copy of the linux open source code as stated in the GNU Lesser General Public License notice?
For our Linux based instruments or programs licensed under the “GNU General Public License (GPL) or Lesser GNU General Public License (LGPL)” the complete corresponding sources are available. You can order a complete machine-readable copy of the …
常见问题 ID64866 Faq
Where are the controls for Roll Mode displays in my 5 and 6 Series MSO?
Roll Mode provides an instant display response when the oscilloscope is operating at very slow sweep speeds. Without it, the acquisition must complete before the display will update. With Horizontal Scale factors as slow as 1000 s/div, that can be a …
常见问题 ID235436 Faq
How do I remotely control my 5 or 6 Series MSO from my computer, easily and without any programming?
For the standard instrument (without the Windows 10 option installed), you can simply connect your computer to the instrument through Ethernet and control the oscilloscope with your favorite browser. Find the instrument’s IP address by selecting …
常见问题 ID474201 Faq
What optional features are available as upgrades for my 6 Series MSO and how do I get the upgrade?
Most optional, factory-installed features for the 6 Series MSO are also available as field upgrades, and are installed simply by ordering an upgrade product and entering a new, node-locked software license into the instrument. There are several …
常见问题 ID474161 Faq
I saw a warning message when recalling an instrument setup on my 5 or 6 Series MSO. What caused it?
The 5 and 6 Series MSO will display a pop-up warning message when it is not completely successful recalling the saved state of the instrument with a setup or session file. The following message will appear on the display: WARNING The oscilloscope …
常见问题 ID235416 Faq
What does “Probe Dynamic Range” mean and how does the 5 and 6 Series MSO indicate it?
Oscilloscope probes which contain active circuitry, especially with amplifiers in the signal path, have a limited dynamic range over which the probe behaves linearly. When input signals exceed this range, the signal may be distorted. (Such probes …
常见问题 ID474196 Faq
What user interface differences should I expect to see between a standard 5 or 6 Series MSO and one equipped with the optional Windows 10 operating system?
When you purchase a 5 Series MSO with the 5-WIN option or a 6 Series MSO with the 6-WIN option installed, or upgrade your 5 Series MSO with the SUP5-WIN upgrade, or upgrade your 6 Series MSO with the SUP6-WIN upgrade, you will see very few …
常见问题 ID235441 Faq
How can I invert the channel on the 5 or 6 series MSO?
With firmware v1.16, the invert function is available in the channel menu.  If the unit has the older firmware v1.14 or below, the invert channel feature on the 5 or 6 series MSO is supported via the math channel instead. Here is the setup …
常见问题 ID723956 Faq
How can I try out optional features for my 6 Series MSO before I buy them?
Most field upgrades for the optional features for the 6 Series MSO are also available for a one-time, 30-day free trial. These are available simply by requesting a trial software license and installing the node-locked license in the instrument …
常见问题 ID474156 Faq
How do I set up a network drive on my 5 Series MSO or 6 Series MSO?
Introduction Network drives were introduced in firmware version 1.8.7 for 5 Series, 5 Series Low Profile, and 6 Series MSOs.  This feature allows you to specify a directory on another computer for the scope to use as storage.  To access this storage …
常见问题 ID773296 Faq
I get an error message “CvP Tester Didn’t Run” on my 5 Series MSO.
Instruments that have both a Linux drive and a Windows drive should have the same firmware revision on both drives. When only one drive has the latest firmware installed, the instrument user may find that firmware is not updated on the Linux drive …
常见问题 ID771991 Faq
How do I keep Windows 10 up to date on my scope?
Updating Windows 10 Using Windows Update By default, Windows 10 will attempt to automatically keep itself up to date with the latest critical security patches, but it will not install optional updates.  To ensure Windows 10 receives all available …
常见问题 ID782296 Faq
My scope has Windows 10 version 1607, but more recent versions have been released by Microsoft.  Can my scope be updated?
No, but there is no need to.  The Windows build on Tektronix scopes is from the Long-Term Servicing Channel (Windows 10 Enterprise LTSC). Unlike normal releases of version 1607, this release still receives security updates and support from Microsoft …
常见问题 ID780986 Faq
How are 5 and 6 Series MSO setup files and session files different? How should I use them?
The 5 and 6 Series MSO setup files contain all instrument settings, user-configured analysis, and reference waveforms, so they provide an easy way to return the oscilloscope to a known state. For example, if you want to build a library of …
常见问题 ID235446 Faq
Does Tektronix have a 12-bit oscilloscope?
Yes! Tektronix offers many different models of real-time oscilloscopes that provide 12-bit or greater vertical resolution for a variety of applications. Because many high-vertical-resolution oscilloscopes on the market have technical trade-offs such …
常见问题 ID69266 Faq
Is e*scope supported on the 5 or 6 series MSO with Windows 10 installed?
Yes.  With firmware v1.8 or above, using the web browser access to the Windows 10 version is supported along with TightVNC.  TightVNC must be installed on both the remote PC and the scope.  For the detailed setup instructions, please see the 5/6 …
常见问题 ID474031 Faq
How to extract the trigger time stamp from a Tektronix .wfm file?
The .wfm waveform files saved from Tektronix DPO/DSA/MSO 5K 7K 70K and 5 and 6 Series MSO oscilloscopes contains a time stamp that indicates the time that the scope was triggered. This example program shows how you can extract this time stamp from …
常见问题 ID471231 Faq
How do I save and transfer a screenshot from the 4, 5 or 6 Series MSO oscilloscope to my PC via the remote command interface?
Screenshots (also known as hard copies) can be transferred from the Series 4, 5 and 6 MSO oscilloscopes via the remote programming interface using just a few simple commands.  For information on how to send commands to the instrument via the remote …
常见问题 ID245436 Faq
What probe interface does my oscilloscope have?
Oscilloscope series Probe interface CSA7000/CSA7000B TekConnect DPO2000 TekVPI DPO3000 …
常见问题 ID64251 Faq
Does my 5 or 6 Series MSO support multiple displays?
Yes, the 5 and 6 Series MSO hardware supports a total of three displays, including the instrument’s internal display. The instrument provides DVI-D, Display Port, and VGA connectors on the rear panel. The standard instrument (running the Linux …
常见问题 ID250721 Faq
What are some of the advantages of the 5 and 6 Series MSO digital trigger?
Since its invention by Tektronix in the 1940s, the oscilloscope’s trigger system has been a key component of the products, providing a stable display of repetitive signals and the capture of specific events in a signal. At the circuit level, the …
常见问题 ID467411 Faq
Is it possible to establish a peer to peer ethernet connection on the 5/6 Series MSO?
Yes. To setup a peer to peer connection, you must manually configure the IP and subnet mask address on both the scope and your computer. You can then use an ethernet cable connected directly between the scope and computer.  This will work on the …
常见问题 ID474351 Faq
CSharp Extract Trigger Timestamp from .wfm File_使用CSharp分析wfm波形_读取触发时间
本例程提供了基本使用C#分析示波器采集的波形WFM数据,并读取触发的时间位置;程序会读取目录下所有的wfm文件,并且输出每一个wfm中触发的时间。 请注意相关软件配置环境以及VISA resource地址。Tektronix公司不负责该例程的完整性、可执行性和正确性。
编码采样
MATLAB ICT plot points_通过Matlab绘制波形
使用Matlab从示波器中读取波形数据并绘制。 请注意相关软件配置环境以及VISA resource地址。Tektronix公司不负责该例程的完整性、可执行性和正确性。
编码采样
使用示波器调试USB 2.0问题
了解USB 2.0物理层基础知识,以调试总线问题或系统问题。了解在配备USB 2.0总线分析功能的示波器上使用自动解码、触发和搜索功能时,怎样设置示波器,理解测试结果。

文献编号: 55W-61092-1
应用指南 Marketing Document
使用示波器排除以太网问题
了解 10BASE-T 和 100BASE-TX 以太网物理层的基本知识,帮助您排除总线问题或相关系统问题。 了解如何在配备以太网分析功能的示波器上使用自动解码、触发和搜索功能时设置和解释结果。

文献编号: 55W-61093-1
应用指南 Marketing Document
航空和国防解决方案
70多年来,泰克一直提供各种电子测试测量解决方案,旨在满足军事应用和政府应用的独特需求。在这本手册中,您可以进一步了解我们提供的各种解决方案。

文献编号: 46A-61169-2
手册 Marketing Document
示波器选型指南
从基本信号校验到高性能分析,这份12页的选型指南概括介绍了泰克全系列示波器。对照表给出了高级指标和特点,指明了每个系列的示波器之间的主要差异。下载PDF了解更多

文献编号: 46W-31080-7
选型指南 Marketing Document
了解和进行USB 2.0 物理层测试
涉及USB 2.0设备设计、检测和验证的工程师每天都面临着加快新产品开发周期的压力。通过泰克完善的系列工具,设计人员可以迅速准确地执行USB实现者论坛组织(USB-IF)推荐的所有一致性测试。通用串行总线 (USB 2.0)是一种连接规范,它面向的是计算机外部连接的外设,以消除打开计算机机箱、为某些设备安装所需板卡的麻烦。对用户来说,USB标准设备意味着易用性、扩展能力和速度。USB 2.0 设备设计人员必须正确检定设计,验证是否满足行业标准,然后设备制造商才能在包装上贴上"通过认证"的USB …

文献编号: 55W-61400-0
应用指南 Marketing Document
泰克新5系示波器PWR电源自动测量和分析功能
优化和验证电源设计需要许多重要的测量。这些包括: 电源质量测量,如有功功率,功率因数,效率和谐波预一致性测量等 开关器件测量(含GaN,SiC),如开关损耗和安全操作区域等测试 输出电源测量,如纹波 尽管许多测量项目可以手工测量或者理论计算获得,但许多工程师希望能使用示波器及功率分析软件,实现可量化,自动化测量评价,从而提供可靠,可重复的测试结果。 本应用指南将概括介绍怎样使用泰克新5 系混合信号示波器结合5-PWR 功率分析软件进行重要的电源测量。

文献编号: 55W-61294-3
应用指南 Marketing Document
汽车以太网:查看真实信号
随着汽车行业加快转向汽车以太网技术,全方位设计验证对保证多个ECU 之间的互操作能力和可靠运行至关重要。本应用指南介绍了汽车以太网、全双工通信、隔离主信号与从信号的需求、信号分隔测试方法,以及当前定向耦合器插入方法与泰克新型信号隔离方法比较。

文献编号: 48W-61604-0
应用指南 Marketing Document
使用泰克示波器和选配软件支持串行总线
泰克示波器提供了一系列选配的分析功能,简化了串行总线调试或一致性检验。本选型指南说明了示波器系列中每款产品支持哪些串行标准。

文献编号: 55W-29028-13
选型指南 Marketing Document
