Rohde & Schwarz RTP Series vs. 6 Series B MSO Mixed Signal Oscilloscope Comparison


Oscilloscope
Oscilloscope Performance Specs
Tektronix 6 Series B MSO
✔ 10 GHz & 50 GS/s on two channels
    10 GHz & 25 GS/s on four channels
✔ Up to 64 digital channels (500MHz, 25GS/s)
✔ 100 GS/s of 12-bit ADCs shared for analog or digital FlexChannels
✔ 50 Ohm and 1 MOhm impedance inputs
✔ Full HD 1920 x 1080 15.6” Multi-touch capacitive display
Industry's Only Std. Closed Embedded OS or optional Windows 10 OS
✔ 1 GHz, 3.9 pF passive probes included
Rohde & Schwarz RTP Series
8 GHz & 20 GS/s on four channels

MSO option - 16 digital channels (400 MHz, 5 GS/s)
80 GS/s of 8-bit ADCs used for analog channels only
50 Ohm input impedance only
HD 1280 x 800 12.1” Multi-touch display
Windows 10 OS Only
No probes included
Noise Performance
Bandwidth Volts / Div 6 Series B MSO RTP Series
4 GHz 1 mV 97.4 µV ✔ 270 µV
100 mV 1.73 mV ✔ 2.7 mV
1 V 13.3 mV ✔ 27 mV
6 GHz 1 mV 124 µV ✔ 340 µV
100 mV 2.39 mV ✔ 3.1 mV
1 V 19 mV ✔ 32 mV
8 GHz 1 mV 153 µV ✔ 430 µV
100 mV 2.94 mV ✔ 3.6 mV
1 V 23.1 mV ✔ 36 mV
Logic Analysis (MSO – digital channels)
Tektronix 6 Series B MSO
✔ Up to 64 digital channels
✔ 25 GS/s Digital Channel Sample Rate
✔ 500 MHz || 100K Ohm || <3 pF
✔ 40 ps digital timing resolution
✔ ±40 V digital threshold level range
✔ Up to 64 adjustable thresholds (one per channel)
Rohde & Schwarz RTP Series
Up to 16 digital channels
5.0 GS/s Digital Channel Sample Rate
400 MHz || 100K Ohm || 4 pF
200 ps digital timing resolution
±8 V digital threshold level range
4 adjustable thresholds (one per 4 channels)

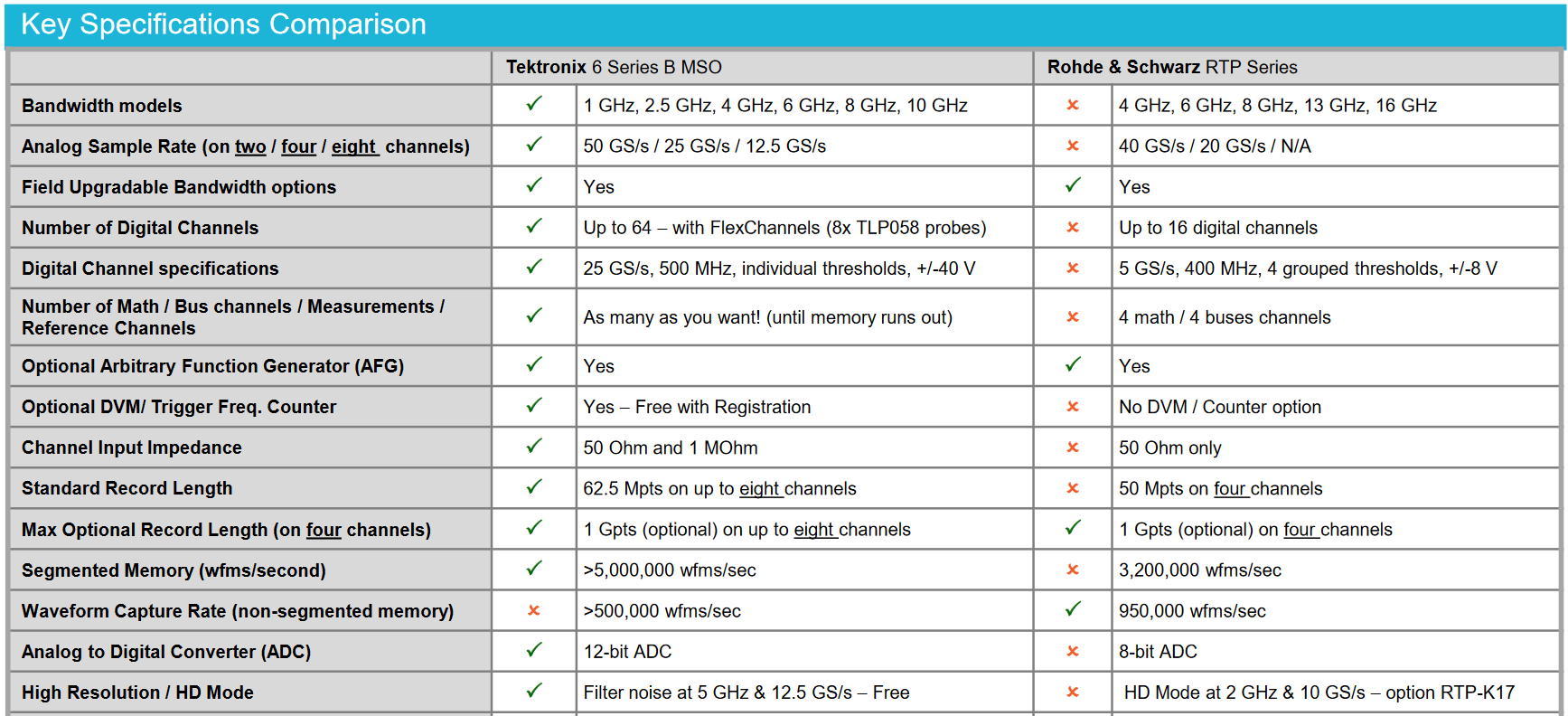

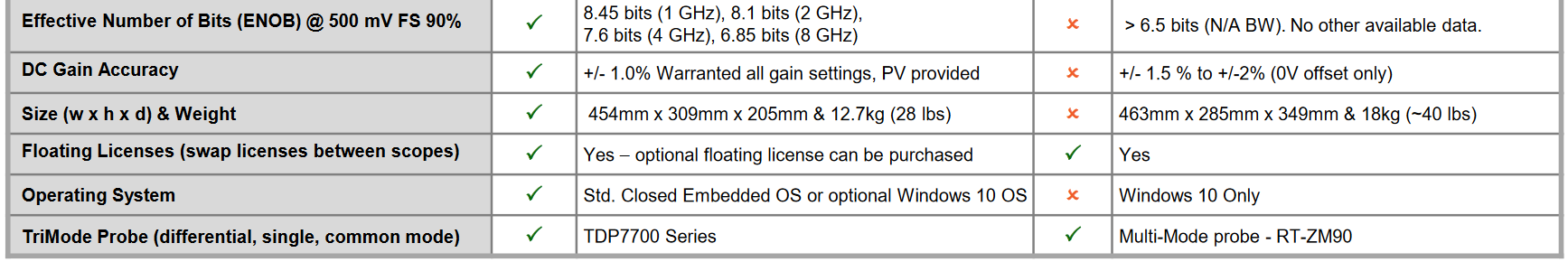

key features comparison key features comparison
