Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes
Spectrum View is a new way of performing spectrum analysis on an oscilloscope. This application note shows and explains how Spectrum View operates and how it differs from traditional oscilloscope FFT functions.
- Any analog signal may be presented as a waveform, spectrum, or both
- Time domain waveforms and spectrum are synchronized
- Waveform and spectrum display may be independently adjusted

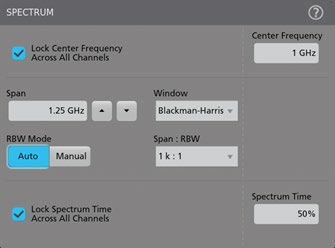

- Settings are made with spectrum analyzer controls such as Center Frequency, Span, and Resolution Bandwidth (RBW)
