2400系列SMU数字源表

Keithley 2400系列SMU数字源表仪器提供四象限精密电压和电流源/负载,外加触摸屏用户界面上的测量。 这些仪器可同时提供10 fA - 10A脉冲电流和/或100nV - 200V电压、1000W脉冲和100W直流总功率的源和测量。



keithley-logo



基本价格
US $4,080 - US $9,950
购买/报价 有问题?现在就聊
最大功率包络

100W DC
1000W 脉冲

V & I 范围

100nV 至 200V,
1pA 至 10A

最佳精度

0.02%
6.5 位

最大速度

1 MS/s 采样率
100 kS/s 到缓冲区

2400 系列数字源表

使测量登上全新高度。

Thumbnail

SMU源表仪器可捕获更详细的设备行为,并在扩展范围内检定设备,因此您能更好地了解设备,提高其质量,改善其性能。

特点

  • 6½ 位精确分辨率源和测量
  • 1 M 个样点/秒数字化测量速度
  • 电流:10nA - 7A 直流,10A 脉冲
  • 电压:200mV - 200V
  • 功率:可达 100W 直流 - 1000W 脉冲

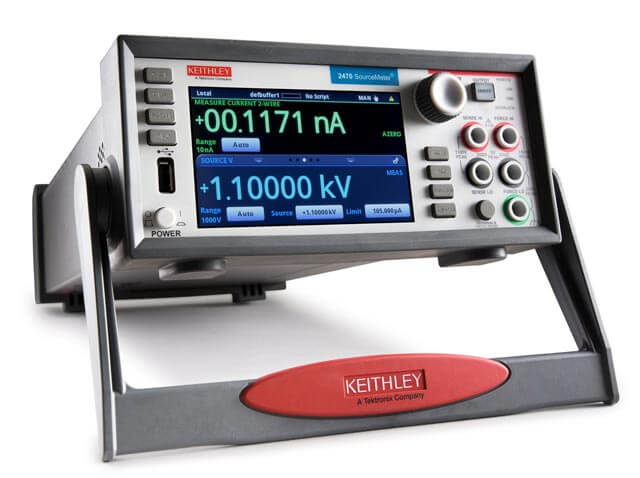

直观 UI。 智能且快速。

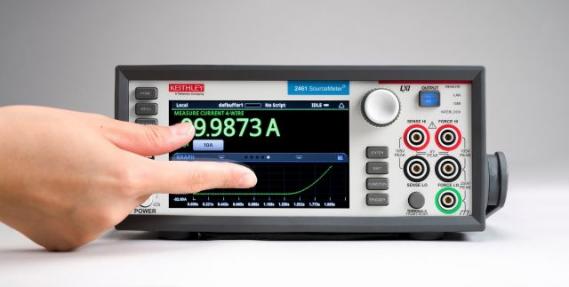

Thumbnail

在直观、多点触控用户界面上能测量、查看和发现更多细节,从原始读数到直方图,再到基于时间和基于电压/电流的波形,并且能更快速地获得答案。

特点

  • 五英寸触摸屏,具有精心设计的颜色组合和屏幕布局
  • 简单的导航和一级菜单及设置
  • 可存储 2750 万个数据,具有时间标记,全部可在仪器上查看

无与伦比的多功能性和投资回报。

Thumbnail

SMU源表仪器将多功能性提高到一个新高度,适合现今应用和未来创新。 配置精密电源、6½ 位数字万用表、电流源、电压源、皮安表、电子负载等。

学习更多, 获得更多。

Thumbnail

源测量单元教程学习中心将关于 Keithley SMU 源表和其他产品的大量信息都放在一个方便的位置。 我们提供指向与我们所服务的应用和行业相关的各种内容的链接。

降低成本并保护您的投资

吉时利保障计划以按需服务事件的一小部分成本提供快速、高质量的服务。 只需点击一下或拨打一个电话即可获得维修服务,在此过程中,无需报价或填写采购单,也不会有审批延误。

了解详情

型号 触摸屏 通道 最大电流源/量程 最大电压源/量程 测量分辨率(电流/电压) 电源 报价
2401. 1 1A 20V 1pA / 100nV 20 W US $4,080
配置和报价
2450 1 1A 200V 10fA/10nV 20 W US $5,630
配置和报价
2400 1 1A 200V 1pA / 100nV 20 W US $5,640
配置和报价
2410. 1 1A 1100V 1pA / 100nV 20 W US $8,540
配置和报价
2460 1 7A 100V 1pA / 100nV 100 W US $8,600
配置和报价
2420 1 3A 60V 10pA / 100nV 60 W US $8,900
配置和报价
2440.

No

1 5A 40V 10pA / 100nV 50 W US $9,740
配置和报价
2461 1 10A 100V 1pA / 100nV 1000W US $9,790
配置和报价

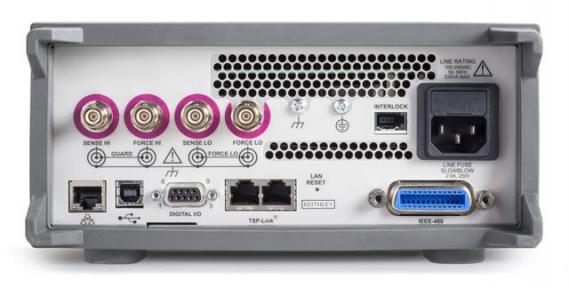

2470

Yes

1

1A

1100V

10fA / 100nV

20 W

US $9,950
配置和报价
价格:价格如有变更,恕不另行通知。
型号 触摸屏 通道 最大电流源/量程 最大电压源/量程 测量分辨率(电流/电压) 电源 报价
2401. 1 1A 20V 1pA / 100nV 20 W US $4,080
配置和报价
2450 1 1A 200V 10fA/10nV 20 W US $5,630
配置和报价
2400 1 1A 200V 1pA / 100nV 20 W US $5,640
配置和报价
2410. 1 1A 1100V 1pA / 100nV 20 W US $8,540
配置和报价
2460 1 7A 100V 1pA / 100nV 100 W US $8,600
配置和报价
2420 1 3A 60V 10pA / 100nV 60 W US $8,900
配置和报价
2440.

No

1 5A 40V 10pA / 100nV 50 W US $9,740
配置和报价
2461 1 10A 100V 1pA / 100nV 1000W US $9,790
配置和报价
2470

Yes

1

1A

1100V

10fA / 100nV

20 W

US $9,950
配置和报价
价格:价格如有变更,恕不另行通知。
  Keithley
2400 系列
Keithley
2600B 系列
  2450 2460 2461 2400 2401* 2410 2420 2601B 2602B 2604B 2606B 2611B 2612B 2614B 2635B 2636B 2634B*
触摸屏
通道数 1 1 2 4 1 2 1 2
最大功率输出 20 W 100 W 1,000 W 脉冲
100 W DC
22 W 66 W 40 W/通道 20 W/通道 30 W/通道 30 W/通道
I 最小值 ±10 fA ±1pA ±1pA ±1pA ±1pA ±1pA ±10 pA ±100 fA ±100 fA ±0.1 fA
1 fA*
最大值 ±1.05 A ±7.35 A ±10 A ±1.05 A ±1.05 A ±1.05 A ±3.15 A 10 A 脉冲
±3 A DC / 通道
3 A 脉冲
±3 A DC / 通道
10 A 脉冲
±1.5 A DC / 通道
10 A 脉冲
±1.5 A DC / 通道
V 最小值 ±10 nV ±100 nV ±100 nV ±100 nV ±100 nV ±100 nV ±100 nV ±100 nV ±100 nV ±100 nV
最大值 ±210 V ±105 V ±100 V ±210 V   ±21 V * ±1100 V ±63 V ±40 V ±20 V ±200 V ±200 V
基本精度 I 0.02% 0.04% 0.02%
V 0.01% 0.02% 0.02%
读取速度 3,130 rdgs/s 3,000 rdgs/s 3,000 rdgs/s
1MS/s 数字化器
2,081 rdgs/s 20,000 rdgs/s
接触检测
TSP 链路
数字 I/O
计算机接口 USB 2.0
 LAN/LXI 1.4
IEEE-488
IEEE-488
RS-232
USB 2.0
LAN/LXI-C
IEEE-488
RS-232
USB 2.0
仅限 LAN/LXI-C
USB 2.0
LAN/LXI-C
IEEE-488
RS-232
合规性 CE、NRTL 认证 CE、UL CE CE、UL

MOSFET 器件检定

Thumbnail

凭借其集成源和测量、电压或电流、直观图形触摸屏显示器上的精度,2400 系列图形 SMU 数字源表仪器成为捕获漏电波形系列、门限电压、门电路漏电和跨导的理想之选。

特点

  • 触摸屏界面上的 I-V 曲线显示
  • 源和接收电压和电流
  • 最佳精度 0.012%,6½ 位分辨率

高亮度 LED 的高速测试

Thumbnail

使用 SMU 源表仪器独特的脉冲、电压或电流功能,最大限度地减少 HBLED 自发热,降低对测量精度的负面影响,消除损坏被测设备的担忧。

特点

  • 最小程序电压和电流脉冲:150 µs
  • 最大脉冲电流 10 A
  • 最大脉冲功率 1000 W

VCSEL 测试

Thumbnail

SMU 源表仪器是适合激光二极管 (LD) 生产测试的业界最佳直流测试系统,可为激光二极管模块光电二极管电流的电流源和电压-电流监测提供高速度和高精度。 SMU 是最经济实惠的 LIV 仪器,系统同步和吞吐量高。

特点

  • 可编程电流源可达 10 A 和 150 µs
  • 电压和电流测量分辨率为 10 nV 和 10 fA
  • TSP-Link® 技术可让多达 32 台仪器在 <1 µs 内同步

检定和验证传感器性能

Thumbnail

SMU 源表仪器是检定和验证睡眠和活跃状态期间可能生成和测量超低和低电压或电流信号的传感器的最准确、可靠且方便的方法。 SMU 提供最宽的工作范围、灵敏度、速度和精度,可最大限度地减少错误读数,让您放心测试。

特点

  • 电压和电流测量分辨率为 10 nV 和 10 fA
  • 最佳电压和电流测量精度为 0.012% 和 0.02%
  • 最大采样率为 1 M 个样点/秒



附件 1751.
产品技术资料 描述
安全测试导线
附件 1754
产品技术资料 描述
安全通用测试导线套件
附件 2000-BENCHKIT
产品技术资料 描述
多型号工作台转换包
附件 4288-1
产品技术资料 描述
单台固定机架安装套件
附件 4288-2
产品技术资料 描述
双台固定机架安装套件
附件 4288-5
产品技术资料 描述
机架套件
附件 5804
产品技术资料 描述
4 端子测试导线组
附件 5806
产品技术资料 描述
KELVIN 夹式导线
附件 7007-1
产品技术资料 描述
屏蔽式 GPIB 电缆,1 米(3.2 英尺)
附件 7007-2
产品技术资料 描述
屏蔽式 GPIB 电缆,2 米(6.5 英尺)
附件 7007-3
产品技术资料 描述
屏蔽式 GPIB 电缆,3 米(10 英尺)
附件 7009-5
产品技术资料 描述
5 英尺屏蔽式 RS-232 电缆
附件 8607
产品技术资料 描述
1KV 电源香蕉电缆
附件 8608
产品技术资料 描述
高性能夹式导线组
产品技术资料 附件 描述
视图 产品技术资料 1751. 安全测试导线
视图 产品技术资料 1754 安全通用测试导线套件
视图 产品技术资料 2000-BENCHKIT 多型号工作台转换包
视图 产品技术资料 4288-1 单台固定机架安装套件
视图 产品技术资料 4288-2 双台固定机架安装套件
视图 产品技术资料 4288-5 机架套件
视图 产品技术资料 5804 4 端子测试导线组
视图 产品技术资料 5806 KELVIN 夹式导线
视图 产品技术资料 7007-1 屏蔽式 GPIB 电缆,1 米(3.2 英尺)
视图 产品技术资料 7007-2 屏蔽式 GPIB 电缆,2 米(6.5 英尺)
视图 产品技术资料 7007-3 屏蔽式 GPIB 电缆,3 米(10 英尺)
视图 产品技术资料 7009-5 5 英尺屏蔽式 RS-232 电缆
视图 产品技术资料 8607 1KV 电源香蕉电缆
视图 产品技术资料 8608 高性能夹式导线组
