The Promise of 5G New Radio

5G New Radio brings advantages to wireless data communications far beyond faster video on smart phones. In fact, 5G technology may prove to be one of the biggest technical achievements of the century.

Enhanced mobile broadband promises to deliver incredible data throughput by using the finite RF spectrum more efficiently. Machine to machine communications standards will enable communications ranging from simple IoT devices and among industrial and medical equipment.  Mission critical elements address the needs for ultra-high reliability and predictable millisecond latency.

Re-Imagine 5G Measurements

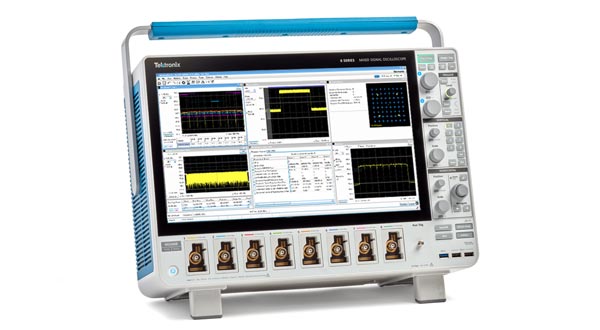

5G NR Vector Signal Analysis

5G New Radio specifications are designed to get the most out of the allocated bands. Key measurements ensure that signals are strong, clean and staying within their channels.

  • EVM – Error Vector Magnitude
  • ACPR – Adjacent Channel Power Ratio
  • CHP – Channel Power
  • SEM –Spectrum Emission Mask

More about 5G NR Vector Signal Analysis

5G System Debug

Even in the simplest 5G system, many signals have to work together reliably. SPI or I2C buses must deliver commands, power supplies must provide clean voltage, and high-speed data must arrive intact. And everything must happen in the right sequence, with the right timing. When things don’t work, how do you figure out what went wrong?

More about 5G System Troubleshooting

5G LP

Request a Quote or Demonstration




5G NR Resources

5G Validation & System Debug
Application Overview

5G Validation & System Debug

Learn how to perform multi-domain signal analysis of 5G base station and user equipment systems. See the benefits of using a mixed domain oscilloscope for analyzing RF amplifier performance.

5G New Radio Vector Signal Analysis
Application Overview

5G New Radio Vector Signal Analysis

See how you can simplify several 3GPP 5G New Radio transmitter tests. You’ll see how to verify transmitter characteristics including power, power dynamics, signal quality and RF emissions.

Application Overview

5G Over the Air Measurement

See how MIMO analysis of RF, analog and digital can be performed simultaneously for easy analysis and correlation between both the frequency and time domain.

5G Measurements
Brochure

重新规划5G 测量

5GNR 信号分析软件与泰克示波器实现宽带新无线测量
Whitepaper

在时域、RF 域和数字域中 调试5G NR 多通道系统

工程师能够在多个域中查看信号,使用一台仪器同时分析多种不同类型的测量,这在复杂的5G 系统中异常实用,因为在5G 系统中数字信号、模拟信号和RF 信号彼此交互。
