80C00 Optical Modules for DSA8300 Sampling Oscilloscope Datasheet

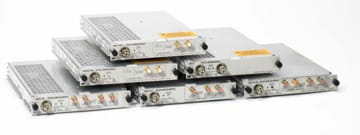

The Tektronix 80C00 optical sampling modules, when installed in DSA8300 Digital Serial Analyzer sampling oscilloscopes1, provide complete optical test solutions for telecom (125 Mb/s to 44.50 Gb/s) and datacom (gigabit Ethernet, 10 GbE, 40 GbE, 50G/100G/200G/400G Ethernet, Fibre Channel, and InfiniBand) applications, as well as general-purpose optical component testing. Other module features include an optical-to-electrical converter, average power monitor, one or more reference receiver filters, a full bandwidth optical path, optional integrated clock recovery2, optional electrical clock recovery signal pickoff3 , and a universal optical input connector.

1 Also compatible with DSA8200, TDS/CSA8200, TDS/CSA8000B, and TDS/CSA8000 sampling oscilloscopes.

2 80C07B, 80C08D, and 80C11B modules.

3 80C10C (with opt. CRTP), 80C12B, 80C14, 80C15, 80C17, and 80C18 modules.

Notice to EU customers

The 80C17, 80C18, 80C20, and 80C21 modules comply with the RoHS 2 Directive 2011/65/EU and will be shipped to the EU. These two modules are qualified for CE Marking.

All other 80C00 modules are not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.

Key performance specifications

  • Optical bandwidths up to >80 GHz
  • Single and multi-mode, short and long wavelength optical signal support
  • Optical mask test solutions with sensitivities to -22 dBm
  • Optical reference receivers (ORR)4 support specified requirements for standards-mandated compliance testing

4 The Optical Reference Receiver (ORR) is a 4th-order Bessel-Thomson filter, with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results.

Key features

  • PAM4 for 400G/200G/100G/50G applications and NRZ/PAM2 for 100G/50G/10G and slower applications
    • 80C10C 80 GHz optical bandwidth and low noise capability for performance testing and signal characterization:
      • 80C10C Option F1 provides 70 GHz full bandwidth and fully integrated selectable reference receiver filtering,enabling conformance testing at either 1310 nm or 1550 nm region for 25.781 Gb/s (100GBASE-ER4 and 100GBASELR4), 27.952 Gb/s (OTU-4), 39.813 Gb/s (OC-768/ STM-256, VSR-2000 G.693, 40G NRZ G.959.1), 41.25 Gb/s (40GBASE-FR), 43.018 Gb/s (OTU3, VSR-2000 w/FEC, 4x10G LAN PHY OTU3), 44.5 Gb/s (OTU3), 53.125 GBd (PAM4 Ethernet 100G per lane, TDECQ), and 57.8 GBd (64GFC) in a single module
      • 80C10C Option F2 provides 55 GHz full bandwidth and fully integrated selectable reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm for 27.952 Gb/s (OTU-4), 25.781 Gb/s (100GBASE-LR4 and 100GBASE-ER4)
      • 80C10C Option F3 provides 80 GHz full bandwidth and fully integrated selectable reference receiver filtering, enabling conformance testing of 39.813 Gb/s (OC-768/STM-256, VSR-2000 G.693, 40G NRZ G.959.1), 41.25 Gb/s (40GBASE-FR), 43.018 Gb/s (OTU3, VSR-2000 w/ FEC, 4x10G LAN PHY OTU3), 44.5 Gb/s (OTU3), 53.125 GBd (PAM4 Ethernet 100G per lane, TDECQ), and 57.8 GBd (64GFC)
      • 80C10C Clock Recovery for 25-44.5 Gb/s rates is supported by the CR286A-HS or similar5 (sold separately) and Option CRTP and HSPR (electrical signal outputs to 44.5 Gb/s)
    • 80C15 provides 32 GHz full bandwidth and fully integrated optical reference receivers (ORR),6 enabling conformance testing of both single and multi-mode conformance testing at 850,1310 and 1550 nm. The module includes bandwidth filters which support the following rates: 25.781 Gb/s (100GBASE-SR4, Inifiniband EDR, TDEC), 27.952 Gb/s (OTU-4), and 28.05 Gb/s (32G Fibre Channel)
      • 80C15 Option CRTP provides a second, high-sensitivity optical input to drive Clock Recovery Trigger Pickoff (CRTP) electrical differential outputs for clock recovery functions or error detection.
    • 80C17 and 80C18 provide >30 GHz full bandwidth and fully integrated optical reference receivers (ORR) 6, enabling conformance testing of both single and multi-mode conformance testing at 850, 1310 and 1550 nm. The module includes bandwidth filters which support the following rates: 25.781 Gb/s (100GBASE-ER4, -LR4, -SR4, Inifiniband EDR); 26.5625 (PAM4 50G per lane), TDECQ, TDEC (100GBASESR4), 27.952 Gb/s (OTU-4), and 28.05 Gb/s (32G Fibre Channel), and 53.125 GBd7 PAM4/TDECQ.
      • 80C17 and 80C18 Option CRTP provides an additional, high-sensitivity optical input to drive Clock Recovery Trigger Pickoff (CRTP) electrical differential outputs for clock recovery functions or error detection up to 28.05 GBd.
    • 80C20 and 80C21 provide up to 53 GHz of optical bandwidth and lowest noise capability for performance. Used in conjunction with the bandwidth enhancements feature of 80SJNB or 400G-M4 applications, the 80C20 and 80C21 provide reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm region for 25.781 Gb/s (100GBASE-ER4 and 100GBASE-LR4), TDECQ, 26.56 Gb/s (OTU-4), 39.813 Gb/s (OC-768/STM-256, VSR-2000 G.693, 40G NRZ G.959.1), 43.018 Gb/s (OTU3, VSR-2000 w/ FEC, 4x10G LAN PHY OTU3), 44.5 Gb/s (OTU3), and 53.125 GBd (PAM4 Ethernet 100G per lane, TDECQ) in a single module.

5 Contact Tektronix for details.

6 The Optical Reference Receiver (ORR) is a 4th-order Bessel-Thomson filter, with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results.

7 53.125G PAM4 rate requires the use of the 400G-M4 or 80SJNB software applications and option IMP. Uses DSP and patterns only.

  • 10 Gb/s Telecom and Datacom
    • Highly accurate ER calibrated (Extinction ratio) measurementoption for increased repeatability and transferability of themeasurement. ER Adjusted is also available (for any symbol rate).
    • 80C14 - Low-noise, high optical sensitivity, broad wavelength conformance testing for 10GbE, 40GbE (R4), 100GbE (X10) LAN, WAN, FEC, 10G Fibre Channel, 16G Fibre Channel (14.025 Gb/s), 14G Infiniband FDR (14.06250 Gb/s).
    • 80C08D and 80C12B (w/ Option 10G or 10GP) – low-noise, high optical sensitivity, and broad wavelength conformance high optical sensitivity, and broad wavelength conformance FEC, 10G fibre channel, and 10 Gb/s telecom standards and FEC rates.
    • 80C11B 30 GHz optical bandwidth conformance testing and characterization for 10 Gb/s telecom and datacom standards and FEC rates.
    • Clock Recovery solutions for 10 Gb/s applications
      • 80C14 clock recovery for rates ≥8.5 Gb/s is supported by CR175A (Sold separately).
      • 80C08D and 80C11B Integrated Clock Recovery supports all current 10 Gb/s standards or user-defined rates from 9.8 Gb/s to 12.6 Gb/s (CR4).
      • 80C12B clock recovery for 10 Gb/s rate is supported by the 80A05 module or CR125A clock recovery instrument (Sold separately)
  • Tributary Telecom and Datacom
    • 80C07B and 80C12B provide excellent optical sensitivity and 80C07B and
    • 80C07B and 80C12B multirate telecom conformance testing solutions from 125 Mb/s8 (OC-3/STM-4) through 11.317 Gb/s (10GFC w/ FEC) and multirate datacom conformance testing solutions for Fibre Channel, gigabit Ethernet, and Infiniband standards.

8 125 Mb/s is supported by selecting 155 Mb/s rate.

Applications

  • High-speed optical communications testing
  • Extinction ratio and Q-factor measurements
  • Eye, pattern, and pulse shape analysis
  • Relaxation oscillation testing
  • Optical signal analysis
  • Compliance testing
  • NRZ, RZ, and optical duobinary signal characterization

80C07B Multirate, datacom and telecom

The 80C07B module is a broad wavelength (700 to 1650 nm) optical sampling module optimized for testing multirate datacom telecom signals from 125 to 2500 Mb/s.

With its amplified O/E converter design, this module provides excellent signal-to-noise performance, allowing users to examine low-power optical signals. The 80C07B can be optionally configured with clock recovery that supports 125, 155, 622, 1063, 1250, 2125, 2488, 2500, and 2666 Mb/s rates.

80C08D Multirate, broad wavelength, high sensitivity 10 Gb/s

The 80C08D module is a broad wavelength (700 to 1650 nm) multirate optical sampling module providing datacom rate testing for 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s and 10G Fibre Channel applications at 10.51875 Gb/s and 11.317 Gb/s. The 80C08D also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s.

With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low power level optical signals. The 80C08D can be optionally configured with clock recovery options that can support any standard or user-defined rate in the continuous range from 9.8 to 12.6 Gb/s.

80C10C Multirate datacom and telecom 25 Gb/s, 40 Gb/s, and 100Gb/s

The 80C10C module provides integrated and selectable reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm of all standard 25, 40, 100 PAM4, and 100 (4 x 25) Gb/s standard rates. The 80C10C has the following configurations:

  • Option F1: Provides standard compliant optical reference receivers9 for the following rates (standards):
    • 25.781 Gb/s (100GBASE-LR4 and 100GBASE-ER4)
    • 27.952 Gb/s (OTU4)
    • 28.05 Gb/s (28G Infiniband EDR)
    • 39.813 Gb/s (OC-768/STM-256, VSR2000 G.693, 40G NRZG.959.1)
    • 41.25 Gb/s (40GBASE-FR)
    • 43.018 Gb/s (G.709 FEC, OTU3 4×10G LAN PHY)
    • 44.5 Gb/s (OTU3)
    • 53.125 GBd (PAM4 Ethernet 100G per lane), TDECQ
    • 57.8 GBd (64GFC)
  • Option F2: Provides standard compliant optical reference receivers9 for the following rates (standards):
    • 25.781 Gb/s (100GBASE-LR4 and 100GBASE-ER4)
    • 26.5625 (PAM4 50G per lane)
    • 28.05 Gb/s (28G Infiniband EDR)
    • 27.952 Gb/s (OTU4
  • Option F3: Provides standard compliant optical reference receivers9 for the following rates (standards):
    • 39.813 Gb/s (OC-768/STM-256, VSR2000 G.693, 40G NRZ G.959.1)
    • 41.25 Gb/s (40GBASE-FR)
    • 43.018 Gb/s (G.709 FEC, OTU3 4×10G LAN PHY)
    • 44.5 Gb/s (OTU3)
    • 53.125 GBd (PAM4 Ethernet 100G per lane), TDECQ
    • 57.8 GBd (64GFC)

Alternatively to the filter rates, the user may select bandwidths for the 80C10C for optimal noise versus bandwidth performance for accurate signal characterization.

When equipped with Option CRTP, an electrical signal from an internal pickoff is provided for clock recovery. Clock recovery to 28.6 Gb/s is available with Tektronix' CR286A-HS clock recovery instrument (sold separately).

When equipped with Option HSPR, a separate high-sensitivity optical input is provided with independent electrical outputs that can be used with external equipment (such as a Tektronix clock recovery unit or, for NRZ, an error detector such as a Tektronix BERTScope).

The 80C10C is also optionally available in a bundled ordering configuration which includes a 70+ GHz electrical sampling channel.

9 The Optical Reference Receiver (ORR) is a 4th-order Bessel-Thomson filter, with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results.

80C11B Multirate, 10Gb/s datacom and telecom

The 80C11B module is a long wavelength (1100 to 1650 nm) multirate optical sampling module optimized for testing 10 Gb/s datacom and telecom standard rates at 9.953, 10.3125, 10.51875, 10.664, 10.709, 11.0957, 11.317, 12.50, and 14.025 Gb/s. With its high optical bandwidth of up to 30 GHz (typical) it is well suited for general-purpose high-performance 10 Gb/s optical component testing.

The 80C11B can be optionally configured with clock recovery options that can support any standard or user-defined rate in the continuous range from 9.8 to 12.6 Gb/s.

80C12B Multirate, broad wavelength, high sensitivity datacom and telecom

The 80C12B module is a broad wavelength (700 to 1650 nm) multirate optical sampling module providing telecom and datacom testing for standards from 155 Mb/s to 11.4 Gb/s. This highly flexible module can be configured to support a wide variety of 10 Gb/s applications, lower data rate applications (155 Mb/s to 7.4 Gb/s), or a combination of 10G and lower data rate standards.

The low data rate applications include: Telecom applications from 155 to 2666 Mb/s, 1G, 2G, and 4G Fibre Channel, multilane standards such as 10GBASE-X4 and 4-Lane 10 Gb/s Fibre Channel, and Infiniband SDR and DDR rates.

The supported 10 Gb/s application includes both datacom and telecom standards. The supported 10 Gb/s datacom applications include 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s and 10G Fibre Channel applications at 10.51875 Gb/s and 11.317 Gb/s. The 80C12B also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s.

With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users examine low-power optical signals. The 80C12B provides an electrical clock recovery output (AC coupled) to beyond 12 Gb/s data rates, which is compatible with the CR125A-HS or 80A05 (sold separately).

80C14 Multirate, high sensitivity, datacom and telecom 8.5Gb/s, 10Gb/s, and 14Gb/s

The 80C14 module is a broad wavelength (700 to 1650 nm) multirate optical sampling module providing 8Gb/s, 10Gb/s, and 16Gb/s telecom and datacom testing. The supported 10 Gb/s datacom applications include: 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, and 11.0957 Gb/s. Fibre Channel applications include: 8.500, 10.51875, 11.317, and 14.025 Gb/s. The 80C14 also provides telecom rate testing at 9.953, 10.664, 10.709, and 12.5 Gb/s.

With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low power level optical signals. The CR175A-HS and CR286A-HS (sold separately) are examples of instruments that can provide clock recovery for the 80C14.

80C15 Single/multi-mode mutlirate datacom and telecom 25Gb/s, 100Gb/s for applications

The 80C15 modules provides integrated and selectable reference receiver filtering, enabling conformance testing at either 850, 1310 nm or 1550 nm of all standard 25, and 100 (4 x 25) Gb/s standard rates. The 80C15 provides bandwidth filtering for the following rates:

  • 25.781 Gb/s (100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4 and Infiniband EDR)
  • TDEC (100GBASE-SR4)
  • 27.952 Gb/s (OTU4)
  • 28.05 Gb/s (32G Fibre Channel)

Alternatively to the filter rates, you can select bandwidths for the 80C15 for optimal noise versus bandwidth performance for accurate signal characterization.

80C15 Option CRTP provides a second, high-sensitivity optical input to drive Clock Recovery Trigger Pickoff (CRTP) electrical differential outputs for clock recovery functions or error detection.

80C17/18 Single/multi-mode multirate datacom and telecom 25Gb/s, 100 Gb/s, and PAM4 for 50G/100G/400G applications

The 80C17/18 modules provides integrated and selectable reference receiver filtering, enabling testing from 750 to 1650 nm. The 80C17/18 provides bandwidth filtering with Bessel-Thomson 4th order filter hardware (works on any signal) for the following rates:

  • 25.781 Gb/s (100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4 and Infiniband EDR)
  • 26.5625 (PAM4 50G per lane), TDECQ
  • 53.125 GBd (PAM4 Ethernet 100G per lane), TDECQ10
  • TDEC (100GBASE-SR4)
  • 27.952 Gb/s (OTU4)
  • 28.05 Gb/s (32G Fibre Channel)

In addition to the filter rates, you can also select bandwidths for the 80C17/18 for optimal noise versus bandwidth performance for accurate signal characterization.

Option IMP enables DSP enhancement that can be used to extend optical channel optical bandwidth up to 36.2 GHz (-3dBo) and electrical bandwidth up to 26.5625 GHz (-3dBe). DSP enhancement can also be used to improve accuracy of the optical channel frequency response. Option IMP requires 400G-M4 or 80SJNB software applications and pattern signal.

Option CRTP provides an additional, high-sensitivity optical input to drive Clock Recovery Trigger Pickoff (CRTP) electrical differential outputs for clock recovery functions or error detection up to 28.05 GBd.

10 53.125G PAM4 rate requires the use of the 400G-M4 or 80SJNB software applications and option IMP. Uses DSP patterns only.

80C20/21 Single-mode multirate datacom and telecom 25Gb/s, 40Gb/s, 100Gb/s, and PAM4 for 200G/400G applications

The 80C20 and 80C21 modules, when used with the 80SJNB PAM4 and DSA8300 400G-M4 software applications, provides selectable receiver filtering enabling testing from 1200 nm to 1650 nm. The modules provide the following hardware filters.11

  • 25.781 Gb/s (100GBASE-LR4, 100GBASE-ER4)
  • 27.952 Gb/s (OTU4)
  • 39.813 Gb/s (OC-768/STM-256, VSR2000 G.693, 40G NRZ G.959.1)
  • 41.25 Gb/s (40GBASE-FR)
  • 43.018 Gb/s (G.709 FEC, OTU3 4x10G LAN PHY)
  • 53.125 GBd (PAM4 Ethernet 100G per lane, TDECQ)

11 Reference receiver filtering enabling conformance testing at either 1310 nm or 1550 nm requires the use of DSP, bandwidth enhancement available in 400G-M4 or 80SJNB software applications, patterns only.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Selection guide for 10Gb/s telecom and datacom applications

80C08D80C11B80C12B80C14
F0-F1210G10GP
Wavelength range (nm)700-16501100-1650700-1650700-1650
Calibrated wavelength (± 20nm)

780

850

1310

1550

1310

1550

850

1310

1550

850

1310

1550

Unfiltered optical bandwidth12.5 GHz30GHz12GHz12>13GHz
Fiber input (μm)1362.5962.562.5
Typical mask test sensitivity(dBm)-1614-10 14-1915-1515-15
RMS optical noise (typical at1310 nm)161.7 μw

5.5µw (≤14Gb/s)

7.0µw (14Gb/s)

10.0 μw (20 GHz)

20.0 μw (30 GHz)

0.7 μw (≤2 Gb/s)

0.9 μw (>2 Gb/s, ≤4.5 Gb/s)

1.2 μw (> 4.5 Gb/s, ≤7.4 Gb/s)

1.7 μw (>7.4 Gb/s, ≤8.5 Gb/s)

2.0 μw (>8.5 Gb/s)

1.3 μw (≤12.5 Gb/s)

1.9 μw (>12.5 Gb/s)

RMS optical noise (max at1310 nm) 163.0 μw

8.0 μw (≤14 Gb/s)

10.0 μw (14 Gb/s)

14.0 μw (20 GHz)

30.0 μw (30 GHz)

1.3 μw (≤2 Gb/s)

1.5 μw (>2 Gb/s, ≤4.5 Gb/s)

2.2 μw (>4.5 Gb/s, ≤7.4 Gb/s)

2.7 μw (>7.4 Gb/s, ≤8.5 Gb/s)

3.6 μw (>8.5 Gb/s)

2.5 μw (≤12.5 Gb/s)

3.5 μw (>12.5 Gb/s)

Optical return loss -single-mode (dB)>24>30>24>24
Optical return loss -multi-mode (dB)>14N/A>14>14
Power meter range170 dBm to -30 dBm+4 dBm to -30 dBm+0 dBm to -30 dBm+0 dBm to -30 dBm

12 When ordered with only F1-F12 filter options, the maximum optical bandwidth of the 80C12B is constrained by the highest bit-rate filter.

13 Modules with fiber inputs of 62.5 μm can accommodate 9 μm (single-mode) as well as 50 μm and 62.5 μm (multi-mode) fibers.

14 When ordered with clock recovery options, the mask test sensitivity of the 80C08D and 80C11B is reduced by 1 dBm.

15 The mask test sensitivity of the 80C12B is -22 dBm for filter rates < 1.250 Gb/s.

16 The RMS optical noise (both typical and maximum) for wavelengths other than 1310 nm is obtained by multiplying the values in the table above by the following factors: 1 × for 1550 nm, 2 × for 850 nm

17 Power meter accuracy = 5% of reading + connector uncertainty for 1550 nm ±20 nm and 1310 nm ±20 nm.

Selection guide for PAM4 for 50G/100G/200G/400G applications, PAM2/NRZ for 100Gb/s and 40 Gb/s telecom and datacom applications

80C10C80C1580C17, 80C1880C20, 80C21
F1F2F3
Wavelength range (nm)1290 - 1620800 - 1600800 - 16001200 - 1650
Calibrated wavelength (± 20nm)

1310

1550

850

1310

1550

850

1310

1550

1310

1550

Unfiltered optical bandwidth70 GHz55 GHz80 GHz>32 GHz>30 GHz53 GHz
Fiber input(μm)18962.5509
Typical mask test sensitivity (dBm)-6 at 1310 nm1920-8 at 1310 nm21-14 at 1310 nm 21-10 at 1310 nm
RMS optical noise (typical at 1310 nm)22

15.6 μw (25.78 Gb/s)

16.9 μw (27.95, 28.0 Gb/s)

18.2 μw (32 GHz)

23.4 μw (39.81, 43.02

Gb/s)

29.9 μw (55 GHz)

46.8 μw (70 GHz)

71.5 μw (80 GHz)

10.3 μw (25.78 Gb/s)

10.3 μw (26.5625 Gb/s)

10.3 μw (TDECQ)

10.3 μw (27.95, 28.0 Gb/s)

12.2 μw (32 GHz)

3.1 μw (TDEC 16.8 GHz)

3.9 μw (25.78 Gb/s)

4.2 μw (26.5625 Gb/s )

4.3 μw (27.95 Gb/s, 28.05

Gb/s)

3.2μw (17 GHz)

3.5 μw (22 GHz)

5.4 μw (30 GHz)

9.3 μw (27.78 Gb/s, 26.5625 Gb/s)

9.3 μw (27.95 Gb/s, 28.05 Gb/s)

9.6 μw (35 GHz)

9.8 μw (39.81 Gb/s, 41.25 Gb/s)

10.3 μw (43.02 Gb/s)

12.3 μw (53 GHz)

RMS optical noise (max at

1310 nm) 22

23.4 μw (25.78 Gb/s)

26.0 μw (27.95, 28.0 Gb/s)

28.6 μw (32 GHz)

37.7 μw (39.81, 43.02

Gb/s)

52.0 μw (55 GHz)

84.5 μw (70 GHz)

130.0 μw (80 GHz)

12.2 μw (TDEC 16.8 GHz)

12.2 μw (25.78 Gb/s)

12.2 μw (26.5625 Gb/s)

12.2 μw (27.95, 28.0 Gb/s)

14.1 μw (32 GHz)

3.6 μw (TDEC 16.8 GHz)

4.5 μw (25.78 Gb/s)

4.8 μw (26.5625 Gb/s)

5.0 μw (27.95 Gb/s, 28.05

Gb/s)

3.6 μw (17 GHz)

4.0 μw (22 GHz)

6.7 μw (30 GHz)

11.8 μw (27.78 Gb/s, 26.5625 Gb/s)

11.8 μw (27.95 Gb/s, 28.05 Gb/s

12.7 μw (35 GHz)

12.7 μw (39.81 Gb/s, 41.25 Gb/s)

13.7 μw (53 GHz)

13.3 μw (43.02 Gb/s)

Optical return loss -single-mode (dB)>30>24>16>25
Optical return loss -multimode (dB)N/A>14>16NA
Acquisition delay adjustment range on each channelN/AN/A±65 ps±65 ps
Power meter range23+13 dBm to -21 dBm+0 dBm to -30 dBm+6 dBm to -38 dBm+6 dBm to -38 dBm

18 Modules with fiber inputs of 62.5 μm can accommodate 9 μm (single-mode) as well as 50 μm and 62.5 μm (multi-mode) fibers. Modules with fiber inputs of 50 μm can accommodate 9 μm (single-mode) fibers.

19When ordered with clock recovery trigger pick-off option (option CRTP), the mask test sensitivity of the 80C10C is reduced by 1 dBm.

20 Low ER signals (ER ≤ 6 dB): signal passes 802.3ae-like mask (scaled horizontally for bit rate); 105 samples in mask. High ER signals (ER > 6 dB): signal passes OC-192-like mask (scaled horizontally for bit rate); 105 samples in mask. Sensitivity expressed as minimum AOP of a high ER signal that passes an ideal signal.

21 The mask test sensitivity of the 80C15/17/18 is reduced by 3 dB for 850 nm signals.

22 The RMS optical noise (both typical and maximum) for wavelengths other than 1310 nm is obtained by multiplying the values in the table above by the following factors— 80C10C: 0.77 for 1550 nm, 80C15: 1.06 for 1550 nm and 0.67 for 850 nm, 80C17/18: 1.1 for 1550 nm, 1.66 for 850 nm.

23 Power meter accuracy = 5% of reading + connector uncertainty for 1550 nm ±20 nm and 1310 nm ±20 nm.

Selection guide for tributary telecom and datacom applications

80C07B80C12B
F0-F1210G10GP
Wavelength range (nm)700-1650700-1650
Calibrated wavelength (± 20 nm

780

850

1310

1550

850

1310

1550

Unfiltered optical bandwidth2.5 GHz12 GHz24
Fiber input (μm)2562.562.5
Typical mask test sensitivity (dBm)-22-1926-15-15
RMS optical noise (typical at 1550 nm)27

0.5 μw (≤1.25 Gb/s)

0. 7 μw (>1.25 Gb/s)

1.0 μw (≤1.25 Gb/s)

1.5 μw (>1.25 Gb/s)

0.7 μw (≤2 Gb/s)

0.9 μw (>2 Gb/s, ≤4.5 Gb/s)

1.2 μw (> 4.5 Gb/s, ≤7.4 Gb/s)

1.7 μw (>7.4 Gb/s, ≤8.5 Gb/s)

2.0 μw (>8.5 Gb/s)

1.3 μw (≤2 Gb/s)

1.5 μw (>2 Gb/s, ≤4.5 Gb/s)

2.2 μw (>4.5 Gb/s, ≤7.4 Gb/s)

2.7 μw (>7.4 Gb/s, ≤8.5 Gb/s)

3.6 μw (>8.5 Gb/s)

Optical return loss -single-mode (dB)>24>24
Optical return loss -multi-mode (dB)>14>14
Power meter range28+4 dBm to -30 dBm+0 dBm to -30 dBm

24When ordered with only F1-F12 filter options, the maximum optical bandwidth of the 80C12B is constrained by the highest bit-rate filter.

25 Modules with fiber inputs of 62.5 μm can accommodate 9 μm (single-mode) as well as 50 μm and 62.5 μm (multi-mode) fibers.

26 The mask test sensitivity of the 80C12B is -22 dBm for filter rates < 1.250 Gb/s.

27 The RMS optical noise (both typical and maximum) for wavelengths other than 1550 nm is obtained by multiplying the values in the table above by the following factors: 1 × for all calibrated wavelengths

28 Power meter accuracy = 5% of reading + connector uncertainty for 1550 nm ±20 nm and 1310 nm ±20 nm.

Supported filter rates and clock recovery

StandardRate80C07B2980C08D80C10C80C11B80C12B80C1480C15
F1F2F3F0-F123010G10GP31
OC3, STM1155Mb/s
OC12, STM4622Mb/s
Fibre Channel1.063 Gb/s
Gigabit Ethernet1.250 Gb/s
2G Fibre Channel2.125 Gb/s
OC48, STM162.488 Gb/s
2G Ethernet2.500 Gb/s
2.5G G.709 FEC2.66 Gb/s
XAUI, 10GBase-X3.125 Gb/s
10G Fibre Channel x43.188 Gb/s
4G Fibre Channel4.250 Gb/s
OBSAI6.144 Gb/s
CPRI7.373 Gb/s
8G Fibre Channel328.500 Gb/s
OC192, STM64, 10GBase-W9.953 Gb/s
10GBase-R 3210.31 Gb/s
10G Fibre Channel10.52 Gb/s10.66 Gb/s
G.975 FEC10.66 Gb/s
G.709 FEC10.71 Gb/s
10 GbE w, FEC11.10 Gb/s
Super FEC12.50 Gb/s
16G Fibre Channel14.025 Gb/s
14G Infiniband FDR14.0630Gb/s
TDECQ, PAM426.56 Gb/s
100GBASE -SR4 and TDEC and 25G Infiniband EDR25.78 Gb/s
OTU-427.95 Gb/s
32G Fibre Channel28.05 Gb/s
OC768, STM25639.81 Gb/s
40GBase-FR41.25 Gb/s
OTU-3,VSR-200G.693, G.959.1 FEC43.02 Gb/s
OTU344.5 Gb/s
PAM4 TDECQ53.125 Gbd
64GFC57.8 Gbd
Clock recovery supportInternal (option)Internal (option)External (requires option CRTP or option HSPR; maximum speed 44 Gb/s PAM2 or 28.05 Gbd PAM4)Internal (option)External (for example, CR125A)External (for example, CR286A-HS)External (for example, CR286A-HS; requires option CRTP)

29 2.488 and 2.500 Gb/s filters are standard with 80C7B. Select any two of the additional four filter rates when ordering (see Ordering information).

30 You can configure 80C12B to support any 4 of the 12 < 10 Gb/s rates indicated (see Ordering information).

31 Use option 10GP to configure the 80C12B to support any 3 of the 12 <10 Gb/s rates indicated, as well as the 10-12 Gb/s rates (see Ordering information).

32 Draft version of 8.5 G Fibre Channel. New 8.5 GFC filter is identical to the 10GBASE-R 10.31 Gb/s filter.

StandardRate

80C17

80C18

80C20

80C2133

PAM426.5625 GBd (TDECQ)
53.125 GBd (TDECQ)33, 34
NRZ25.78 GBd (TDEC-MM)
25.78 GBd
28.05 GBd
27.95 GBd
Clock recovery supportExternal (for example, CR286AHS; requires option CRTP,maximum speed 28.05 GBd NRZ and PAM435 )

33 Reference receiver filtering enabling conformance testing at either 1310 nm or 1550 nm requires the use of DSP, bandwidth enhancement available in 400G-M4 or 80SJNB software applications, patterns only.

34 Requires option IMP.

35 28.05 GBd PAM4 clock recovery requires > -12dBm OMA outer at CRTP input when used with CR286A-HS.

Extinction ratio calibration accuracy

Extinction ratio calibrated accuracy (Opt. 01 ER calibrated)36

36 Low ER signals (ER ≤ 6 dB): signal passes 802.3ae-like mask (scaled horizontally for bit rate); 105 samples in mask. High ER signals (ER > 6 dB): signal passes OC-192-like mask (scaled horizontally for bit rate); 105 samples in mask.

Module37Reference filter in range (Gb/s)Repeatability, typical (to itself and to other 80Cxx-Opt.01)Accuracy
80C08D, 80C11B9.9 - 12.5±0.6% (–0.39 dB / +0.42 dB at 12 dB)±1.2% (–0.76 dB / +0.92 dB at 12 dB)
80C12B0.155 - 11.3

37 Opt. 01 not available for 80C7B, 80C10C, or 80C14.

Dimesnions and Weight

Dimensions

WidthHeightDepth
All 80C00 modules165 mm (6.5 in)25 mm (1.0 in)305 mm (12.0 in)

Weight

Weight
80C07B<1.36 kg (<3.0 lbs)

80C08D

80C11B

<1.22 kg (<2.7 lbs)

80C10C

80C12B

80C14

80C15

80C17

80C18

80C20

80C21

<2.61 kg (<5.75 lbs)

Ordering information

For more detailed information about the 80C00 Optical Sampling Modules, download the DSA8300 Digital Serial Analyzer, 80C00 Series Sampling Modules, 80E00 Series Sampling Modules, 80A00 Modules Specifications Technical Reference (Tektronix part number 077-0571-xx) from www.tek.com

80C00 models

80C07B
Multirate datacom and telecom optical sampling module
80C08D
Multirate, broad wavelength, high sensitivity 10 Gb/s
80C10C
Multirate datacom and telecom 25 Gb/s, 40 Gb/s, and 100 Gb/s
80C11B
Multirate, 10 Gb/s datacom and telecom
80C12B
Multirate, broad wavelength, high sensitivity datacom and telecom
80C14
Multirate, high sensitivity datacom and telecom 10 Gb/s and 14 Gb/s
80C15
Single/multi-mode, multirate datacom and telecom 25 Gb/s and 100 Gb/s
80C17
Single channel, single/multi-mode, multirate datacom and telecom 25 Gb/s, 100 Gb/s, and PAM4 for 50G/100G/200G/400G
80C18
Dual channel, single/multi-mode, multirate datacom and telecom 25 Gb/s, 100 Gb/s, and PAM4 for 50G/100G/200G/400G
80C20
Single channel, single-mode, multirate datacom and telecom 25 Gb/s, 40 Gb/s, 100 Gb/s, and PAM4 for 200G/400G
80C21
Dual channel, single-mode, multirate datacom and telecom 25 Gb/s, 40 Gb/s, 100 Gb/s, and PAM4 for 200G/400G

Options

Following are the options available for each module.

80C07B

2.488 Gb/s and 2.500 Gb/s filters are standard with the 80C07B. In addition, the user must select any one (1) of the following filter options:
Opt.F1
155, 622 Mb/s
Opt.F3
155, 1250 Mb/s
Opt.F4
155, 2125 Mb/s
Opt. F6
622, 1063 Mb/s
Opt. F7
622, 2125 Mb/s
Opt F10
1250, 2125 Mb/s
Opt. CR1
155, 622, 1063,1250, 2125, 2488, 2500, and 2666 Mb/s clock/data recovery

80C08D

Opt. CR4
Continuous rate clock recovery supporting any standard or user-definable rate in the range from 9.8 to 12.6 Gb/s

80C10C

The 80C10C has three configurations (Option F1, F2, or F3). User must order one of these options with the module.
Opt. F1
25.781, 26.5625, 27.952, 28.05, 39.813, 41.25, 43.018, 44.5 Gb/s filters, 70 GHz full bandwidth, 53.125 TDECQ, 57.8 filters
Opt. F2
25.781, 27.952 Gb/s filters, 55 GHz full bandwidth
Opt. F3
39.813, 41.25, 43.018, 44.5, 53.125 TDECQ, 57.8 Gb/s filters, 80 GHz full bandwidth, 53.125 TDECQ filters
Opt. HSPR
Option HSPR (High Sensitivity Photo Receiver) provides a second, more sensitive single-mode optical input that supports typical power levels for the 40 Gb/s and 100 (4 x 25) Gb/s standards. The option also providesdifferential electrical outputs (50 Ω, AC coupled, differential 2.92 mm female connectors) on the module front panel, to 44.5 Gb/s, with a maximum 1 ps differential skew.

A typical use for Option HSPR is to provide optical BER testing when using a Tektronix BERTScope.

This option is compatible with options F1-F3, but is mutually exclusive from Opt. CRTP

Opt. CRTP
The option provides differential clock recovery trigger pick-off (CRTP) electrical outputs (50 Ω, AC coupled, differential 2.92 mm female connectors) on the module front panel, to 44.5 Gb/s, with a maximum 1 ps differential skew. This option is compatible with options F1-F3, but is mutually exclusive from Opt. HSPR

80C10CE2

Bundle
Bundled ordering configuration includes 80C10C plus one 80E11X1 single-channel 70+ GHz electrical module (This bundle has the same ordering options as the 80C10C).

80C11B

Opt. CR3
9.953, 10.71 Gb/s clock recovery
Opt. CR4
Continuous rate clock recovery supporting any standard or user-definable rate in the range from 9.8 to 12.6 Gb/s
Opt. 01
ER Calibrated (when ordered with new module); module will only work on mainframe with Windows XP or Windows 7 and oscilloscope FW V 5.0 and higher. ER Calibrated can be ordered as an upgrade to an existing module; order Opt. 01 + Opt. IFC (factory installation); factory installation is required; module will only work on mainframe with Windows XP and oscilloscope FW V 5.0 and higher.

80C12B

The 80C12B module provides user-selected filter options for measuring specified sets of standards. Three module configurations are available that must be specified when ordering:
  • Option 10G provides Optical Reference Receiver (ORR) filters for all standard rates between 8.5 and 11.4 Gb/s
  • Options F0-F12 provide four "tributary" filters for standards at data rates from 155 Mb/s to 7.373 Gb/s. Select the four filter options when ordering the module.
  • Option 10GP plus any three F1-F12 filters provides Optical Reference Receiver (ORR)38 filters for all standard rates between 8.5 and 11.3 Gb/s plus the three selected tributary standard rates.
Opt. F0
Unfiltered 12 GHz bandwidth and 8.5 Gb/s39
Opt. F1
155.52 Mb/s
Opt. F2
622 Mb/s
Opt. F3
1.0625 Gb/s
Opt. F4
1.250 Gb/s
Opt. F5
2.125 Gb/s
Opt. F6
2.488, 2.500 Gb/s
Opt. F7
2.666 Gb/s
Opt. F8
3.125, 3.188 Gb/s
Opt. F9
4.250 Gb/s
Opt. F10
5.000 Gb/s
Opt. F11
6.144 Gb/s
Opt. F12
7.373 Gb/s
Opt. 10G/10GP 39
8.500, 9.95, 10.31, 10.51, 10.66, 10.71, 11.1, 11.3 Gb/s, unfiltered 12 GHz bandwidth
Opt. 01
ER Calibrated (when ordered with new module); module will only work on mainframes with Windows XP or Windows 7 and oscilloscope FW V 5.0 and higher. ER Calibrated can be ordered as an upgrade to an existing module; order Opt. 01 and Opt. IFC (factory installation)

38 The Optical Reference Receiver (ORR) is a 4th-order Bessel-Thompson filter, with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results.

39 Option 10GP and F0 are mutually exclusive, as Option 10GP already includes Option F0.

80C14

No options

80C15

Opt. CRTP
CRTP (Clock Recovery Trigger Pickoff) for 80C15 Optical Module. Does not include optical splitter
Opt. CRTP-MM
CRTP (Clock Recovery Trigger Pickoff) for 80C15 Optical Module. Includes 62.5 μm MM 10/90 optical splitter
Opt. CRTP-SM
CRTP (Clock Recovery Trigger Pickoff) for 80C15 Optical Module. Includes SM 10/90 optical splitter.

80C17, 80C18

Opt. IMP
Impulse response correction. In conjunction with DSA8300 400G-M4, may be used to extend optical channel optical bandwidth up to 36.2 GHz (-3dBo) and electrical bandwidth up to 26.5625 GHz (-3dBe). Suitable for TDECQ testing on PAM4 rates up to 53.125 GBd.
Opt. CRTP
CRTP (Clock Recovery Trigger Pickoff) for the 80C17 and 80C18 Optical Modules. Does not include optical splitter.
Opt. CRTP-MM
CRTP (Clock Recovery Trigger Pickoff) for 80C17 and 80C18 Optical Modules. Includes 50 μm MM 10/90 optical splitter.
Opt. CRTP-SM
CRTP (Clock Recovery Trigger Pickoff) for 80C17 and 80C18 Optical Modules. Includes SM 10/90 optical splitter.

80C20, 80C21

No options

Service options (available for all 80C00 optical modules)

CA140
Provides a single calibration event or coverage for the designated calibration interval, whichever comes first.
Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
G341
Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
G5 41
Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, and priority access to Customer Support among others.
Opt. R3
Repair Service 3 Years (including warranty)
Opt. R5
Repair Service 5 Years (including warranty)

40 80C14 only

41 80C15/17/18 only

Recommended accessories

Input connector adapters

While the FC/PC connector is standard with the 80C00 Series optical sampling modules, the input connector type can be interchanged with any of the following standard adapters:

Biconic
119-4515-xx
D4/PC
119-4514-xx
DIAMOND 3.5
119-4558-xx
DIN/PC 47256
119-4546-xx
FC/PC
119-5115-xx
HP/PC
119-4556-xx
SC/PC
119-5116-xx
SMA
119-4557-xx
SMA 2.5
119-4517-xx
ST/PC
119-4513-xx
For LC connector please use LC to FC/PC patch cable and connect to the default FC/PC.
