PSPL5310R Phase-Matched Balun Datasheet

PSPL5310R Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

在线阅读:

The PSPL5310R Phase-Matched Balun is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input while the other is inverted in polarity. The PSPL5310R uses proprietary technology that provides exceptional phase and amplitude matching. Popular uses for the PSPL5310R are in Analog-Digital-Converter (ADC) and differential Test & Measurement applications.

Key performance specifications
  • Excellent Phase and Amplitude Balance from 100 MHz to 4 GHz

  • Operating range 4 MHz to 6.5 GHz
  • Designed for use with ADCs
  • Maximum input power > +20 dBm

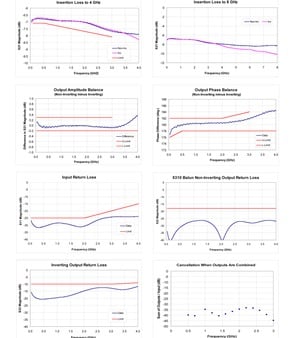

Typical performance

PSPL5310-Datasheet-452542-9-N

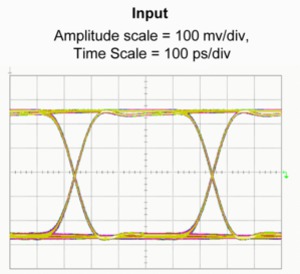

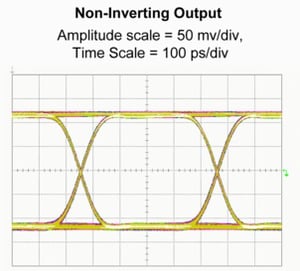

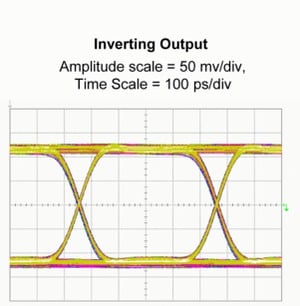

Response to 2 Gb/s NRZ signal with 27-1 PRBS pattern

PSPL5310-Datasheet-452542-10-N

PSPL5310-Datasheet-452542-11-N

PSPL5310-Datasheet-452542-12-N

Specifications

Parameter Test Condition Minimum Typical Maximum
Risetime 10% to 90%   54 ps
Bandwidth -3 dB   6.5 GHz
Low Frequency Cutoff -3 dB   4 MHz
Insertion Loss 100 MHz
1 GHz
2 GHz
3 GHz
  6.9 dB
6.9 dB
7.1 dB
7.6 dB
7.1 dB
7.3 dB
7.7 dB
8.1 dB
Impedance     50 Ohms
Return Loss
Input
Non-Inverting Output
Inverting Output
100 MHz – 2 GHz
-30 dB
-30 dB
-15 dB

-25 dB
-18 dB
-10 dB
Delay     320 ps
Differential Amplitude
Balance
100 MHz – 3.0 GHz   ±0.1 dB +0.3 dB
-0.2 dB
Differential Phase
Balance
500 MHz – 2.0 GHz   ±0.5 degree ±2 degrees
Maximum Input 100 MHz +20 dBm
Connectors SMA jacks (f)
Weight 1.4 oz. (40 grams)
Temperature Range 0 to +70 °C operating, -40 to +125 °C storage
Warranty One Year

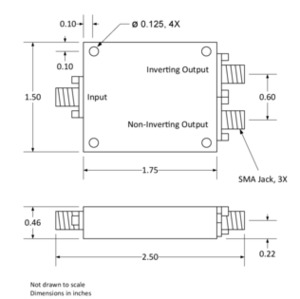

Mechanical dimensions
PSPL5310-Datasheet-452542-13-N

Ordering information

Models
PSPL5310R
Phase-Matched Balun
