PSPL5320B 11 GHz Differential Pulse Splitter

PSPL5320B Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

在线阅读:

The PSPL5320B BALUN is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input, while the other output is inverted in polarity. The PSPL5320B has a fast 31 ps rise time and a bandwidth from 5 kHz to 11 GHz. The PSPL5320B can also be used as an algebraic differential signal combiner. All three ports are matched to 50 Ω.

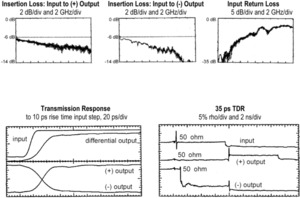

Typical performance

PSPL5320B-Datasheet-641537-9-N

Specifications

Parameter 1 Value
Rise time (10%-90%) 31 ps typical, 45 ps maximum
Bandwidth (-3 dB) 11 GHz
Insertion Loss 6.5 dB nominal
Impedance 50 Ω
Refl. Coeff. (35 ps TDR) input
(+) output
(-) output
7 ns
+3%, t > 8 ns
-12%, t > 1 ns
Max. Input 0.75 Watts
Delay 4.1 ns
Diff. Delay Balance (step response) ± 5 ps maximum
Diff. Balance (step response) 7 ns
Sag Time Constant 35 μs (1/e)
Return Loss 0.1  20 dB -1.5 dB/GHz*f(GHz)
Low Freq. Cutoff 5 kHz (-3 dB)
Connectors SMA jacks (f)
Weight 2.7 lbs (1.2 kg)
Dimensions 2 x 4 x 8 in (5.1 x 10.2 x 20. 3 cm)
Warranty One year

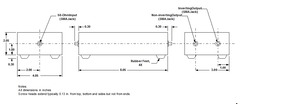

Mechanical dimensions

PSPL5320B-Datasheet-641537-10-N


1 All parameters listed are typical unless max/min guaranteed limits are provided.

Ordering information

Models
PSPL5320B
Diff pulse splitter-Balun, SMA, J-J-J
