PSPL5587 Datasheet
PSPL5587 2 GHz High Current Bias Tee Datasheet
The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.
在线阅读：
The PSPL5587 High Current Bias Tee is intended for frequency domain, high current applications. Unlike most high current bias tees that typically are specified for only an octave band, this bias tee can typically cover a decade. The DC input is a solder terminal feed-thru capacitor.
Key performance specifications
- 0.2 GHz to 2 GHz
- 100 V, 6 A
Typical performance

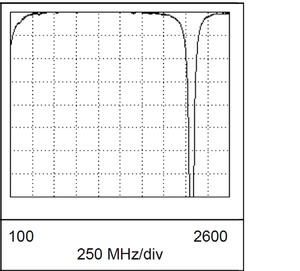

Insertion Loss, S21. 0.5 dB/div, top line is the 0 dB reference.

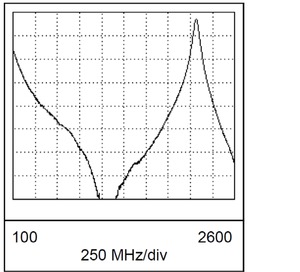

Return Loss, S11. 5 dB/div, top line is the 0 dB reference.
Specifications
| Parameter | Symbol | Units | Minimum | Typical | Maximum | Comments |
|---|---|---|---|---|---|---|
| Impedance | Z | ohms | 50 | |||
| Frequency range | f | GHz | 0.2 to 2 0.3 to 1.8 | IL 10 dB IL 15 dB | ||
| Insertion loss | S21 | dB | 0.05 | At 1 GHz | ||
| Input (AC), Return loss | S11 | dB | >30 | Mid band, AC port | ||
| DC voltage | V | V | 100 | |||
| DC current | I | A | 6 | |||
| Capacitance (bypass) | C | nF | 22 | |||
| Capacitance | C | nF | 1 | |||
| Inductance | L | nH | 88 | |||
| Resistance | R | ohms | 0.2 | |||
| RF power | P | W | 100 | Average power | ||
| Isolation | S13 | dB | >50 | |||
| DC path bandwidth | fc,DC | kHz | 275 | |||
| Temperature | T | Deg C | -55 | +125 | Storage and operating | |
| RF connectors | SMA jacks (f) | |||||
| DC connector | Solder pin | |||||
| Warranty | One year | |||||

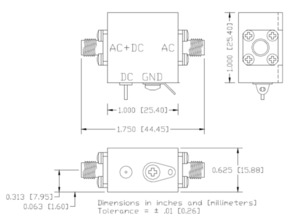

- Mechanical dimensions
Ordering information
Models
- PSPL5587
- BIAS TEE, 0.2-2 GHz, 100 V, 6 A
