PSPL5208, PSPL5210 Impulse Forming Networks Datasheet

PSPL5208, PSPL5210

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

在线阅读:

The PSPL5208 and PSPL5210 components are proprietary, passive Impulse Forming Networks (IFNs).

Product description

These PSPL5208 and PSPL5210 have the unique property of providing an output that is approximately the derivative of the input waveform while also maintaining an excellent impedance match on all ports.

V(out) ≈ Tc * dV(in) / dt

Where Tc is the derivative time coefficient. When driven by a step, the output is an impulse. When driven by an impulse, the output is a monocycle. The models are optimized for use with different input rise times. A third IFN port is labeled “DC” and terminated in 50 Ω. A DC baseline offset, bias voltage, and/or a slower rise time, pedestal pulse may be connected to this DC port.

Typical performance

The following figure shows the PSPL5208 IFN at 20 ps/div. 5.10 V, 11.3 ps Step Input: 2 V, 50 ps Impulse and 1.3 V ptp, 13 GHz Monocycle inputs.

PSPL5208-Datasheet-121945-9-N

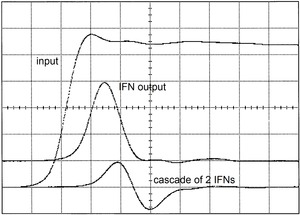

The following figure shows the PSPL5210 IFN at 50 ps/div. 10 V, 45 ps Step Input: 2.7 V, 50 ps Impulse and 1.7 V ptp, 6.5 GHz Monocycle inputs.

PSPL5208-Datasheet-121945-10-N


Specifications

Parameter 1 PSPL5208 PSPL5210
Tc, derivative coefficient 8 ps 13 ps
Mininimum recommended input rise time 15 ps 25 ps
Impedance 50 Ω, ±2 Ω (DC)
Reflection coefficient
(35 ps TDR)
-6%,
t
-3%,
t
Max CW input power ½ Watt
Connectors 2.9 mm jacks (f) SMA jacks (f)
Warranty One year

1 All parameters listed are typical unless max/min guaranteed limits are provided.

Mechanical dimensions

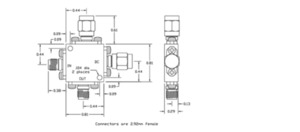

PSPL5208

PSPL5208-Datasheet-121945-11-N

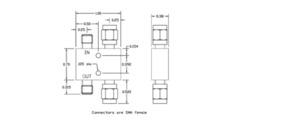

PSPL5210

PSPL5208-Datasheet-121945-12-N

Ordering information

Models
PSPL5208
Impulse Forming Network
PSPL5210
Impulse Forming Network
