PSPL5333 6 dB power divider, 25 GHz
PSPL5333 Datasheet
泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。
The PSPL5333 Power Divider is an ultra-broadband resistive coupler, which provides even division of an input signal at the output ports. The device exhibits excellent through-line insertion loss stability for frequencies from DC to >25 GHz. The PSPL5333 features good impedance match across a wide range of frequencies, with return loss typically >15 dB from 0-25 GHz. Resistors are accurate within ±2%, providing excellent input matching.
Key performance specifications
- DC to >25 GHz
- Excellent Return Loss
- Superb Insertion Loss Stability
- Accurate Amplitude and Phase Tracking

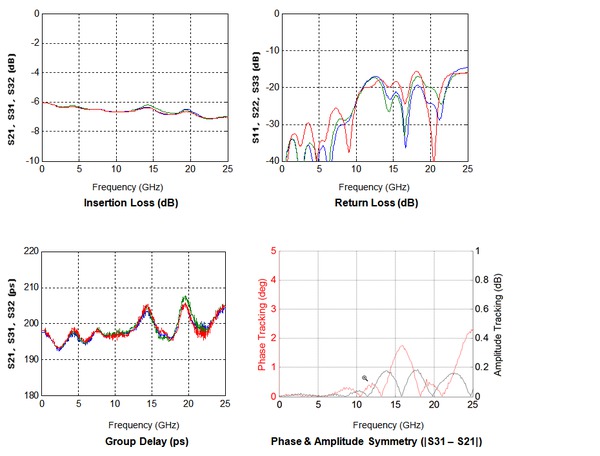

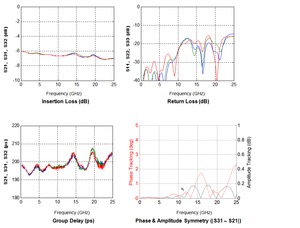

Typical performance
Frequency responses from 40 MHz to 25 GHZ, linear sweep at 5 GHz/div.
Specifications
| Parameter 1 | Value |
|---|---|
| Insertion Loss | 6 dB, nominal DC
6.5 ±1 dB, 0-25 GHz, guaranteed |
| Rise time (10% - 90%) | ≤15 ps |
| Return Loss | >15 dB, 0-18 GHz, guaranteed
≥10 dB, 18-25 GHz, guaranteed |
| Input Impedance @ DC (port 1, 2 or 3) | 50 ±1 Ω, guaranteed |
| Insertion Loss Asymmetry (S31- S21) | ≤0.5 dB, 0-25 GHz, guaranteed |
| Phase Tracking (S31-S21) | ≤5 deg, 0-25 GHz, guaranteed |
| Group Delay | 198 (-8,+12) ps, 0-25 GHz, typical |
| Temperature Range | 0-90 °C @ 1.5 W (case), linearly derated to 0 W @ 110 °C |
| Maximum Input Power (Avg) | 1.5 W, CW |
| Connectors | SMA jacks (f) |
| Warranty | One Year |

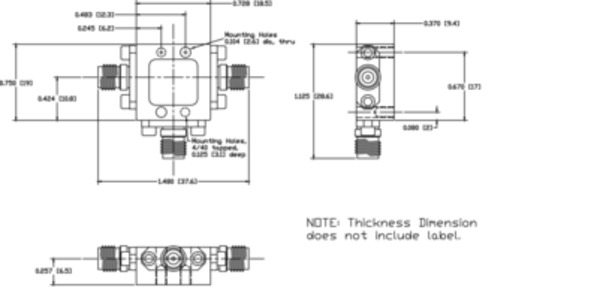

- Mechanical dimensions
1All parameters listed are typical unless maximum/minimum guaranteed limits are provided. Measurements made with 50 Ω matched line/load at output ports.
Ordering information
Models
- PSPL5333
- Power Divider 6 dB
