PSPL5370 Ultra-Broadband Pick-off Tee

PSPL5370 Datasheet

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态

更多信息

在线阅读:

PSPL5370 Datasheet

The PSPL5370 Pick-off Tee is an ultra-broadband resistive coupler, which provides a scaled (5x or 10x) replica of signals passing through the tee. The device exhibits excellent through-line insertion loss and pick-off ratio stability for frequencies from DC to >25 GHz. The PSPL5370 features good impedance match across a wide range of frequencies, with return loss typically >15 dB from 0-25 GHz.

Key performance specifications
  • Low insertion loss
  • DC to >25 GHz
  • 5x and 10x pick-offs
  • ≤14 ps rise time

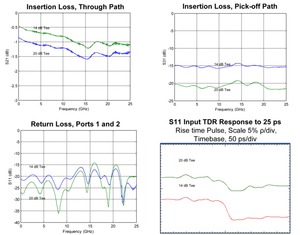

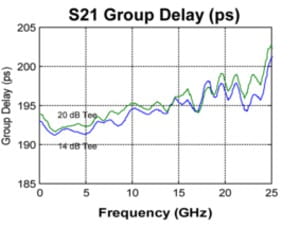

Typical performance

PSPL5370-Datasheet-682034-9-N

PSPL5370-Datasheet-682034-10-N

PSPL5370-Datasheet-682034-11-N

Specifications

Parameter 1 PSPL5370 Opt. 14DB PSPL5370 Opt. 20DB
Pick-off Insertion Loss (S31) 14.8 dB, nominal DC
15 ±1 dB, 0-25 GHz, guaranteed
20.4 dB, nominal DC
20.5 ± 2.0 dB, 0–25 GHz, guaranteed
Through-line Insertion Loss (S21) 0.8 dB, nominal DC
0.8 (+0.2,-1.0) dB, 0-25 GHz, guaranteed
0.4 dB, nominal DC
0.4 (+0.2,-1.2) dB, 0–25 GHz, guaranteed
Rise time (10% - 90%) 12 ps 14 ps
Return Loss (S11) >20 dB, DC
≥15 dB, 0-10 GHz, guaranteed
≥12.5 dB, 10-25 GHz, guaranteed
>24 dB, DC
≥20 dB, 0-10 GHz, guaranteed
≥13 dB, 10-25 GHz, guaranteed
Pick-off Resistor 200 Ω ± 2%, guaranteed 450 Ω ± 2%, guaranteed
Through-line Group Delay Tolerance (S21) ± 7.5 ps guaranteed up to 25 GHz (750 MHz aperture)
In/Out Impedance @ DC (port 1 or port 2) 41.7 Ω, nominal 45.5 Ω, nominal
Temperature Range -55 to +90 °C Operating
Max Input Power, (Port 1 or 2, Avg) 2 W 4 W
Connectors SMA jacks (f) SMA jacks (f)
Warranty One Year

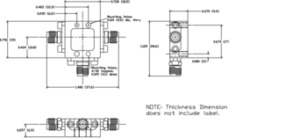

Mechanical dimensions

PSPL5370-Datasheet-682034-12-N


1 All parameters listed are typical unless max/min guaranteed limits are provided. The DC specs are valid only when used with 50 Ω source and terminations.

Ordering information

Models
PSPL5370
Pick-off Tee
Options
Opt. 14DB
14 dB Pick-off
Opt. 20DB
20 dB Pick-off
