PPM203B PPM100 Articulated Arm Datasheet

PPM203B PPM100 Datasheet

更多信息

在线阅读:

PPM203B PPM100 Datasheet

The PPM203B and PPM100 series allows designers to guide standard handheld probes onto the small geometries of fine-pitch interconnects, SMD packages, MCMs (multi-chip-modules), hybrids and ICs.

Features and benefits
  • Three axis articulated arm with HI-mass base (PPM203B)
  • Multi-turn fine adjustment controls for all three axes (PPM203B)
  • Fully flexible "Gooseneck" arm for different positions (locks securely in place with adjustment control knob) (PPM100)
  • Fine adjustment knob on probe holder (PPM100)
    • Spring compliance in probe holder keeps pressure at the probe point (PPM100)
  • Heavy base for desktop applications or C-clamp for other (Rack) applications, both Included (PPM100)
  • Adaptable to most Tektronix probe types
Applications
  • Research, electronic design, service and manufacture of small geometry circuitry
  • Fine-pitched controls to access circuitry such as MCMs, hybrids and other IC technology
  • Multiple test points access allowing hands-free operation

Probing fine pitch devices

Probing today's designs, with their delicate fine pitch devices, is safer and more convenient with Tektronix PPM articulating arms. The PPM series allows designers to guide standard handheld probes onto the small geometries of fine-pitch interconnects, SMD packages, MCMs (multi-chip-modules), hybrids and ICs.

The PPM articulating arms provide high accuracy and resolution with mechanically assisted probe positioning, helping designers meet the physical demands of probing the constantly shrinking geometry of devices.

PPM203B

The PPM203B has a three axis arm system. It is a general-purpose benchtop probing aid designed to be used when probing PC boards, hybrids and MCMs that employ fine-pitch devices and interconnects.

The PPM203B incorporates a weighted base that makes it well-suited to probing fine pitches in benchtop applications.

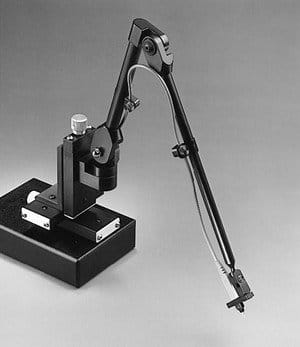

PPM203-PPM100-Datasheet--477322-9-N

PPM203B

PPM100

The PPM100 is a low cost probing aid designed to provide quick and easy access to PC boards, hybrid circuitry and many other devices that require hands-free probing. The PPM100 has a flexible "gooseneck" arm allowing multiple adjustment positions. Once positioned the course adjust knobs lock the probe holder into position. A fine adjustment control at the arm head allows further pressure adjustment after the probe is initially positioned. The spring compliance incorporated into the probe head holder keeps pressure on the probe to circuit, maintaining a superior connection to the device under test.

The PPM100 includes both a weighted base for desktop applications and a C-clamp base for attaching to chassis or rack applications.

Specifications

All specifications are guaranteed unless noted otherwise.

CharacteristicsContainer
Number of manipulator axes
PPM203B
3 (X, Y, Z)
PPM100
3 (X, Y, Z)

Flexible "gooseneck" arm provides nearly unlimited degrees of freedom

Probe mounting
PPM203B
Accepts most Tektronix probes including SMD, 2.5 mm, 3.5 mm, 4 mm, 5 mm, TAP, TDP, Z-Active, and TriMode probes using metal probe adapter clamps
PPM100
Accepts most Tektronix probes using a flexible retention ring at the end of the probe holder
Attachment method to work surface
PPM203B
Manually positioned with weighted HI-mass base
PPM100
Manually positioned base with two mounting angles for additional test point access, or C-clamp for securing the adjustable arm to other fixtures, extrusions, chassis and bench tips
Manipulator lead screw pitch
PPM203B
10 threads per inch
PPM100
N/A
Articulated arm reach
PPM203B
X, Y: 14 inches

Theta: 180°

PPM100
X: 8 to 10 inches with base, 16 inches with clamp

Y: 16 inches with base, 19 inches with clamp

The PPM100 comes with one flexible arm with probe holder. You can order additional arms to affix to the post, which supports up to three arms.

Ordering information

Models
PPM203B
Articulated arm, 3 axis with HI-mass base.

Includes: Articulated arm; HI-mass base; 6 probe adapters to attach various probe styles.

PPM100
Flexible arm probe positioner, 3 axis with HI-mass base and C-clamp.

Includes: HI-mass base with interlocking feet; probe post; C-clamp with post; adjustable (flexible) arm with probe holder; flexible retention rings (8 each).

Compatibility charts
PPM203B Probe Adapter
  Compatibility probe list
Probe adapter part number Probe type Current Legacy
Standard shipped adapters
407-4365-xx SMD passive probes - P6561A, P6562A, P6563A
407-4366-xx 2.5 mm subminiature probes - P6130, P6131, P6133, P6136, P6231
407-4367-xx 3.5 mm compact probes P5050B, P6139B P5050, P6133 Option 25, P6134C, P6136 Option 25, P6137, P6138A, P6139A, P6339A, P6158
407-4368-xx SMD active probes P6243, P6245, P7240 P6209, P6241, P6249, P6330, P7225, P7330, P7260
407-4369-xx 5 mm miniature probes P6101B, P75PDPM P6103B, P6105A, P6106A, P6109B, P6204, P6205
407-4370-xx 4 mm active and Z0 probes - P6207, P6217, P6150
407-4980-xx SMD active, TAP, TDP probes P6243, P6245, P7240, TAP1500, TAP2500, TAP3500, TDP3500 P6209, P6241, P6249, P7260, P6330, P7225, P7330, P7350
407-4984-xx Active differential probes P6247, P6248, P6251, TDP0500, TDP1000, TDP1500 P6250, P6246
Other optional adapters
013-0339-01  Z-Active differential probes - P7360, P7380, P7340A, P7360A, P7380A, P7313
Precision differential probing module P75PDPM TriMode probes P7504, P7506, P7508, P7513A, P7516, P7520A P7513, P7520
407-6019-xx TriMode probes P7708, P7713, P7716, P7720 with P77BRWSR accessory -
PPM100 Probe Adapter
  Compatibility probe list
Probe type Current Legacy
SMD passive probes - P6561A, P6562A, P6563A
2.5 mm subminiature probes - P6130, P6131, P6133, P6136, P6231
3.5 mm compact probes P5050B, P6139B P5050, P6133 Option 25, P6134C, P6136 Option 25, P6137, P6138A, P6139A, P6339A, P6158
SMD active probes P6243, P6245, P7240 P6209, P6241, P6330, P6249, P7225, P7260, P7330
5 mm miniature probes P6101B, P75PDPM P6103B, P6105A, P6106A, P6109B, P6204, P6205
4 mm active and Z0 probes   P6150, P6207, P6217
SMD active, TAP, TDP probes P6243, P6245, P7240, TAP1500, TAP2500, TAP3500, TDP3500 P6209, P6241, P6249, P6330, P7225, P7260, P7330, P7350
Active differential probes P6247, P6248, P6251, TDP0500, TDP1000, TDP1500 P6246, P6250
Z-Active differential probes (Requires adapter fixture: 013-0339-01) - P7313, P7340A, P7360, P7360A, P7380, P7380A
TriMode probes (Requires precision differential probing module P75PDPM) P7504, P7506, P7508, P7513A, P7516, P7520A P7513, P7520
Replaceable parts
Replaceable parts list
384-1861-xx
Post
020-2473-xx
Flexible arm with probe holder
343-1677-xx
Clamp
016-1914-xx
Flexible retention rings (set of 8)
