Semiconductor Tester Device Adapters

Dual-Width Adapters • Kelvin Sensing Adapters • SMT Device Adapters

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态

在线阅读:

Kelvin Sensing Adapters

A000_2691-N

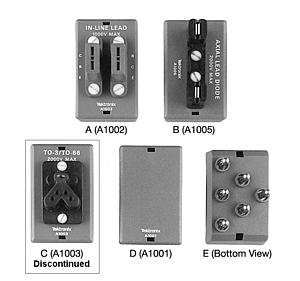

These adapters fit the test fixtures of the 370B, and 371B Curve Tracers:

A. In-line Adapter – Accepts large and small TO-220 transistors with in-line leads. Spacing between leads is 0.06 in. to 0.18 in. The adapter is wired for both B-C-E and C-B-E lead configurations. Order A1002.

B. Axial Lead Diode Adapter –Order A1005.

C. TO-3/TO-66 Adapter for Power Transistors – This adapter has been discontinued.

D. Blank Adapter for Mounting Custom Sockets – Order A1001.

E. Shows Adapter Bottom 6th Pin for Base/Gate Kelvin Sensing Adapters
