AWG7122C

索取报价
概述
技术指标

此产品已经停止销售，请与我们联系获得更多帮助。

AWG7122C Specifications

Effective frequency switching time
Minimum frequency switching time from selected waveforms in sequence mode is determined as "1/Fmaximum"
Standard switching time (Ts)
106 μs
Option 08 (fast frequency switching)
Switching time (Ts) Option 6 (interleaved)
208 ps 104 ps

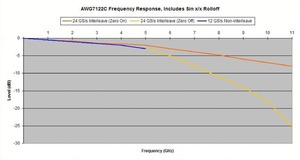

Frequency response


AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-13-N



Modulation bandwidth
Modulation bandwidth is defined as the lower of the sin(x)/x bandwidth or the calculated percentage of rise time bandwidth (as shown).
-1 dB BW = 0.923 × (-1 dB TrBW), typical



Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Up to 400 MHz Up to 1.8 GHZ up to 3.1 GHz up to 3.1 GHz Up to 3.3 GHz
(Zero On)
Up to 3.1 GHz
(Zero Off)
-3 dB BW = 0.913 × (-1 dB TrBW), typical

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Up to 680 MHz Up to 3.2 GHz Up to 5.3 GHz Up to 5.3 GHz Up to 5.6 GHz
(Zero On)
Up to 5.3 GHz
(Zero Off)
Output amplitude

Amplitude levels are measured as single-ended outputs. Amplitude level will be 3 dBm higher when using differential (both) outputs.

Range (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
-22 dBm to 10 dBm -22 dBm to 4 dBm -2 dBm to 4 dBm -2 dBm to 4 dBm Zero On:
-8 dBm to -2 dBm
Zero Off:
-2 dBm to 4 dBm
Resolution (typical)
0.01 dB
Accuracy (typical)
At -2 dBm level, with no offset, ±0.3 dB
Output flatness (typical)
Mathematically corrected for characteristic Sin (x)/x roll-off, uncorrected by external calibration methods.

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
±1.0 dB, from 50 MHz to 4.8 GHz ±1.0 dB, from 50 MHz to 4.8 GHz ±1.0 dB, from 50 MHz to 4.8 GHz ±1.0 dB, from 50 MHz to 4.8 GHz ±2.5 dB, from 50 MHz to 9.6 GHz

AWG7122C Standard/Wideband Flatness (typical)

AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-14-N



AWG7122C Interleave Flatness (typical)

AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-15-N



Output match
SWR (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
DC to 1.5 GHz, 1.2:1
1.5 to 4.8 GHz, 1.7:1 		 DC to 1.5 GHz, 1.2:1
1.5 to 4.8 GHz, 1.7:1 		 DC to 1.5 GHz, 1.2:1
1.5 to 4.8 GHz, 1.7:1 		 DC to 1.5 GHz, 1.2:1
1.5 to 4.8 GHz, 1.7:1 		 DC to 1.5 GHz, 1.2:1
1.5 to 4.8 GHz, 1.3:1
4.8 to 9.6 GHz, 1.5:1
Time domain characteristics - AWG7122C
Data rate
Bit rate determined as "sample rate / 4 points per cycle", allowing full impairment generation
Bit rate (nominal)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
3 Gb/s 3 Gb/s 3 Gb/s 3 Gb/s 6 Gb/s
Rise/fall time
Rise/fall time measured at 20% to 80% levels, related by a factor of 0.75 to the industry standard of 10% to 90% levels
Tr/Tf (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
350 ps 75 ps 35 ps 35 ps 42 ps
Rise time bandwidth
Rise-time bandwidth converted from rise-time, assumed Gaussian transition, characteristics through analog output circuitry and cabling
Tr bandwidth (-1 dB BW = 0.197/Tr) (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
430 MHz 2.0 GHz 4.3 GHz 3.6 GHz
Tr bandwidth (-3 dB BW = 0.339/Tr) (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
750 MHz 3.5 GHz 7.5GHz 6.2 GHz
Low-pass filter

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Bessel type: 50 and 200 MHz --
Output amplitude
Range (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
100 mVp-p to 4.0 Vp- 100 mVp-p to 2.0 Vp- 1.0 Vp-p to 2.0 Vp- Zero On:
500 mVp-p to 1.0 Vp-p
Zero Off:
1.0 Vp-p to 2.0 Vp-p
Resolution (typical)
1.0 mV
Accuracy (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
At 0.5 V, with no offset, ±(3% of amplitude ±2 mV) Zero On:
±(8% of level ±2 mV)
Zero Off:
±(4% of level ±2 mV)
Offset
Range (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
±0.5 V --
Resolution (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
1.0 mV --
Accuracy (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
At minimum amplitude, ±(2.0% of offset ±10 mV) --
Output distortion - AWG7122C
Spurious Free Dynamic Range (SFDR)
SFDR is determined as a function of the directly generated carrier frequency. Harmonics not included
DC to 1.0 GHz carrier
-54 dBc
1.0 to 2.4 GHz carrier
-46 dBc
2.4 to 3.5 GHz carrier
-38 dBc
3.5 to 4.8 GHz carrier
-30 dBc
4.8 to 9.6 GHz carrier

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Clock: 12 GS/s, 10-bit operation
Frequency: 50 MHz to 4.8 GHz
Level: 4 dBm (1 Vp-p)
Offset: None		 Clock: 24 GS/s, 10-bit operation
Frequency: 50 MHz to 9.6 GHz
Level: -2 dBm (0.5 Vp-p)
-- -26 dBc
Spurious Free Dynamic Range - when viewed as a modulation bandwidth (typical)
When viewed as a modulation bandwidth and used with external frequency up-conversion, the specifications will hold and be independent of carrier frequency with proper conversion circuitry design. Harmonics not included
DC to 1.0 GHz bandwidth (-1 dB)
-54 dBc
DC to 2.4 GHz bandwidth (-1 dB)
-46 dBc
DC to 3.5 GHz bandwidth (-1 dB)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Clock: 12 GS/s, 10-bit operation
Modulation Bandwidth: Up to 2.5 GHz
Level: 4 dBm (1 Vp-p)
Offset: None		 Clock: 24 GS/s, 10-bit operation
Modulation Bandwidth: Up to 3.5 GHz
Level: -2 dBm (0.5 Vp-p)
-- -38 dBc
Harmonic and non-harmonic distortion
Harmonic distortion

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Clock: 12 GS/s, 10-bit operation
32-point waveform
375 MHz output
Amplitude: 4 dBm (1 Vp-p)
Offset: None		 Clock: 24 GS/s, 10-bit operation
32-point waveform
750 MHz output
Amplitude: -2 dBm (0.5 Vp-p)
< -35 dBc < -42 dBc < -40 dBc
Non-harmonic distortion

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Clock: 12 GS/s, 10-bit operation
32-point waveform
375 MHz output
Amplitude: 4 dBm (1 Vp-p)
Offset: None		 Clock: 24 GS/s, 10-bit operation
32-point waveform
750 MHz output
Amplitude: -2 dBm (0.5 Vp-p)
< -50 dBc < -45 dBc


AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-16-N




AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-17-N



AWG7122C Standard/Wideband Phase Noise (typical).

Phase noise distortion

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
Clock: 12 GS/s, 10-bit operation
32-point waveform
375 MHz output
Amplitude: 4 dBm (1 Vp-p)
Offset: None		 Clock: 24 GS/s, 10-bit operation
32-point waveform
750 MHz output
Amplitude: -2 dBm (0.5 Vp-p)
< –90 dBc/Hz at 10 kHz offset < –85 dBc/Hz at 10 kHz offset

AWG7122C Standard/Wideband Phase Noise (typical).


AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-18-N



AWG7122C Interleave Phase Noise (typical).


AWG7000-Arbitrary-Waveform-Generator-Datasheet--963238-19-N



Jitter
Random jitter (typical) - 1010 clock pattern, RMS value

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
1.6 ps 0.9 ps
Total jitter (typical) - 215 - 1 data pattern (at 10-12 BER), P-P value

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
50 ps at 0.5 Gb/s 30 ps at 3 Gb/s 20 ps from 2 to 6 Gb/s
Output pulse - AWG7122C
Tr/Tf (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
350 ps 75 ps 35 ps 42 ps
Timing skew (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
<20 ps (between each channel) (+) Pos and (-) Neg outputs <12 ps (between each channel) (+) Pos and (-) Neg outputs
Delay from marker output(typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
50 MHz: 10.15 ns ±0.15 ns
200 MHz: 4.05 ns ±0.05 ns		 25 ns ±0.05 ns 0.58 ns ±0.05 ns 0.85 ns ±0.05 ns
Interleave skew adjustment (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
-- Skew adjust: ±180 degree against sample rate (e.g. 24 GS/s: 83 ps = 360 degrees with 0.1 degree resolution)
Interleave level adjustment (typical)

Normal:

w/ Amplifier

2 Channel

Direct:

w/o Amplifier

2 Channel

Wideband:

Option 02

2 Channel

Wideband:

Option 06

2 Channel

Interleaved:

Option 06

1 Channel
-- Level adjust: 1 mV resolution
