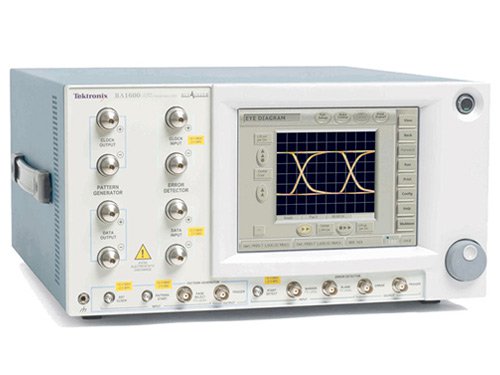

- 码型生成和误码分析、高达 1.6 Gb/s 的高速 BER 测量
- 集成的 BER 关联眼图分析以及通过/不通过模板
- 在高达 1.6 Gb/秒的 PRBS 信号上进行误码定位和 BER 轮廓分析
- ANSI 抖动测量(RJ、DJ 和 TJ)
联系我们
与泰克代表实时聊天。 工作时间:上午 9:00 - 下午 5:00(太平洋标准时间)。
电话
致电我们
工作时间:上午9:00-下午5:00(太平洋标准时间)
下载
下载手册、产品技术资料、软件等:
反馈

主要特性
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Pattern generator specifications
- Maximum frequency
-
- BA1500
- 1500 MHz (1.5 GHz)
- BA1600
- 1600 MHz (1.6 GHz)
- Minimum frequency
-
- Internal clock
- 800 kHz
- External clock
- 100 kHz
- External clock/pattern start
- SMA
- Clock/data output
- SMA
- Configuration
- Differential
- Amplitude
- 70 mV to +2 V
- Offset
- -1.85 V to +3.85 V
- Logic families
- PECL/LVPECL/LVDS LVTTL/CML/ECL
- Rise/Fall
- ≤130 ps 1
- Delay range
- 30 ns or 1 UI
- Delay resolution
- 1% UI or 1 ps
1Rise/Fall times are measured 20% to 80% with PECL logic family settings.
- Trigger output
- BNC
- Type
- CLK/64 or pattern
- Pattern position
- Programmable
- Amplitude
- >1 V
- A/B pattern switch
- BNC
- Threshold
- TTL
- Data types
-
- Pseudo-random
- x7 + x6 + 1
x15+ x14+ 1
x20+ x17+ 1
x23+ x18+ 1
x31+ x28+ 1
- User defined
- 96 bits - 8 Mb
2-4 Mb A/B pages
32-bit word size
- Error insertion
-
- Length (bits)
- 1, 2, 4, 8, 16, 32, 64, 128
- Frequency
- Single or repetitive
Error detector specifications
- Maximum frequency
- 1600 Mb/s
- Minimum frequency
-
- BER measurements
- 100 Kb/s
- Auto-optimize eye
- 70 Mb/s
- Physical-layer tests
- 70 Mb/s
- Clock/Data Inputs
- SMA
- Configuration
- Differential or single
- Threshold
- -2 V to +4 V
- Termination
- -2 V to +3.3 V
- Delay range
- 30 ns or 1 UI
- Delay resolution
- 0.1% UI or 1 ps
- Sampling edge
- Rising or falling clock
- Sensitivity - Single
- 60 mVp-p (typical)
- Sensitivity - Differential
- 40 mVp-p (typical)
- Start detect
- SMA
- Configuration
- Single ended
- Threshold
- -2 V to +4 V
- Termination
- -2 V to +3.3 V
- Function
- Trigger data grab
- Trigger output
- BNC
- Type
- CLK/64 or pattern
- Pattern position
- Programmable
- Amplitude
- >1 V
- Error output
- BNC
- Function
- 32-bit pulse at error
- Amplitude
- >1 V
- Marker input
- BNC
- Threshold
- TTL
- Function
- Error analysis locator
- Maximum frequency
- 4 kHz recommended
- Blank input
- BNC
- Threshold
- TTL
- Function
- Ignore errors at active
- Re-synchronization
- Opt. triggered by edge
- Minimum resolution
- 32 bits
- Data types
-
- Pseudo-random
- x7 + x6 + 1
x15+ x14+ 1
x20+ x17+ 1
x23+ x18+ 1
x31+ x28+ 1
- User defined
- 96 bits - 8 Mb
32-bit word size
- Re-synchronization
-
- Manual
- Push-button or blank
- Automatic
- Programmable error threshold
- User grab
- Find repeating pattern
- User shift
- Hardware pattern search
- Data capture
- Up to 8 Mb capture
- Measurements
- BER, bit, re-sync PG/ED clock frequency
- Views
-
- Home view
- Starting page
- Generator
- Generator settings
- Detector
- Detector settings
- Editor
- Edit patterns, masks
- System
- Utility tools
- Log
- Long-term BER log
- Error analysis views
- Standard
- Basic BER
- Table of BER statistics
- Burst length
- Histogram of burst size
- Error-free interval
- Histogram of intervals
- Correlation
- Error position histogram
- Pattern sensitivity
- Errors within pattern
- Block mode
- Errors per block histogram
- Strip chart
- BER versus time chart
- Physical layer test views
- Optional
- Eye diagram
- Display eye diagram
- BER contour
- Map BER around eye
- Mask test
- Perform mask tests
- Jitter analysis
- DJ/RJ/TJ jitter measurement
- Q-factor analysis
- Setup and display Q
- Error location capture
-
- Live analysis
- Continuous
- Error logging capacity
- Maximum 2 GB file size
- Error events
- 10,000
- Maximum burst length
- 32 kb
General specifications
- TFT display
- 640 × 480 VGA, 8.4"
- Touch sensor
- Analog resistive
- Self-test
- On power up
- Processor
- 1.66 GHz N455
- USB 2.0
- On instrument rear side
- Hard disk drive
- 160 GB or higher
- Keyboard
- 65 key USB
- DRAM
- 1 GB
- Operating system
- Windows 7
- Monitor output
- DB-15 VGA
- Mouse
- USB
- Remote control
- IEEE-488 or TCP/IP
- Network interface
- 10/100/1000 MB Ethernet
- Weight
- 16.34 kg (36 lbs.)
- Power
- 285 W, 100-240 VAC
- Size
- 218.4 mm × 419.1 mm × 488.9 mm (8.6 in. × 16.5 in. × 19.25 in.)
