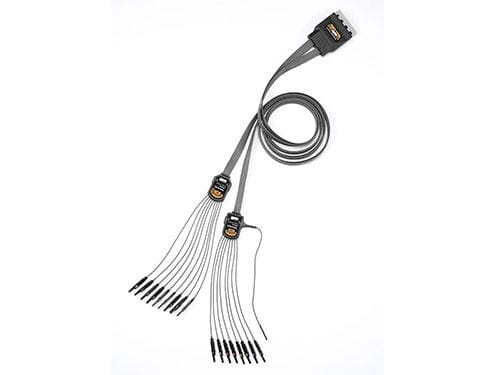

- 探头类型:单端数据/单端时钟(通用)
- 通道数:17
- 推荐使用:大多数通用应用程序
- 附属于目标系统:既适合0.100英寸和2毫米平方针配置
联系我们
与泰克代表实时聊天。 工作时间:上午 9:00 - 下午 5:00(太平洋标准时间)。
电话
致电我们
工作时间:上午9:00-下午5:00(太平洋标准时间)
下载
下载手册、产品技术资料、软件等:
反馈

主要特性
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Compatible with TLA6400 series logic analyzers
P5910 | P5934 | P5960 | |
---|---|---|---|
Probe type | Single-ended Data Single-ended Clock (General purpose) | Single-ended Data Single-ended Clock (Mictor 34-channel) | Single-ended Data Single-ended Clock (D-Max® Probing Technology) |
Number of channels | 17 | 34 | 34 |
Recommended use | Most general-purpose applications | Applications requiring many channels to be connected quickly in a small footprint | High-performance applications requiring many channels to be connected quickly in a small footprint |
Attachment to target system | Fits both 0.100 in. and 2 mm square pin configurations | Amp Mictor 34-channel connector | D-Max® probing technology compression cLGA |
P5900 probe specifications
- Input resistance
- 20 kΩ to ground, typical
- Input capacitance
- P5910
- 1.3 pF
- P5934
- 2.0 pF
- P5960
- 0.8 pF
- Minimum digital swing
- 300 mV
- Analog bandwidth 1
- 2 GHz
1Analog bandwidth of P6960 is less with the flying lead set attached.
- Cable length
- P5910
- 1.5 m (5 ft.)
- P5934
- 1.2 m (4 ft.)
- P5960
- 1.5 m (5 ft.)
