此产品已经停止销售,请与我们联系获得更多帮助。

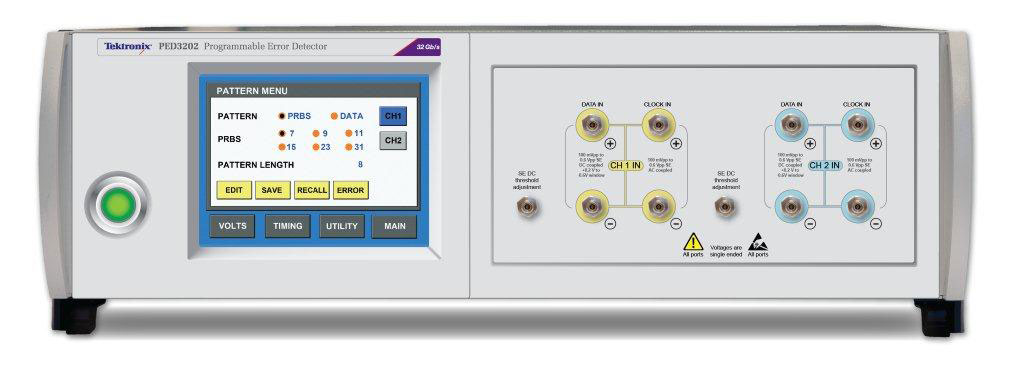

Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Data input
- Data rate
-
- Range (PED3200)
- 3 Gb/s to 32 Gb/s
- Range (PED4000)
- 4 Gb/s to 40 Gb/s
- Data input
- AC coupled input with broadband bias tees featuring a 3 dB bandwidth of 10 kHz to >50 GHz.
- Differential amplitude
- 6 mV to 1.0 Vp-p
- Single-ended amplitude
- 6 mV to 750 mVp-p
- Termination voltage
- 0.0 V
- Input impedance
- 50 Ω
- Connector
- 2.4 mm
- ESD sensitivity
- 250 V, Human body model (HBM)
Sampling point set points
- Eye edge BER threshold
-
- Range
- 1e-1 to 1e-11
- Resolution
- 1e-1
- Sync BER threshold
-
- Range
- 1e-1 to 1e-8
- Resolution
- 1e-1
Full rate clock input option
- Amplitude
- AC coupled, full rate
- Differential range
- 300 mVP-P to 1.0 VP-P
- Single-ended range
- 300 mVP-P to 1.0 VP-P
- Connector
- 2.4 mm
- Clock to data phase adjustment
- 100 ps (-50 ps to +50 ps)
- ESD sensitivity
- 1000 V, Human body model (HBM)
Half rate clock input option
- Amplitude
- AC coupled, half rate
- Differential range
- 300 mVP-P to 1.0 VP-P
- Single-ended range
- 300 mVP-P to 1.0 VP-P
- Connector
- 2.4 mm
- Clock to data phase adjustment
- 100 ps (-50 ps to +50 ps)
- ESD sensitivity
- 1000 V, Human body model (HBM)
Data patterns
- Pattern type
- Data (from memory) or PRBS.
Length and type are individually settable on each channel.
- PRBS pattern lengths
-
- 27 -1 bits
- Polynomial = X7 + X6 + 1
- 29 - 1 bits
- Polynomial = X9 + X5 + 1
- 211 - 1 bits
- Polynomial = X11 + X9 + 1
- 215 - 1 bits
- Polynomial = X15 + X14 + 1
- 223 - 1 bits
- Polynomial = X23 + X18 + 1
- 231 - 1 bits
- Polynomial = X31 + X28 + 1
- User-defined pattern depth
-
Number of channels Single bit pattern resolution 1 channel 4 Mbit 2 channels 2 Mbit
Mechanical
- Front panel width (with mounting tabs)
- 48.3 cm (19.0 in)
- Height
- 13.3 cm (5.25 in)
- Width
- 45.1 cm (17.75 in)
- Depth (rack mount)
- 34.3 cm (13.5 in)
- Weight (1 channel)
- 11.1 kg (24.5 lbs)
- Operating temperature
- 0 °C to 40 °C (32 °F to 104 °F)
