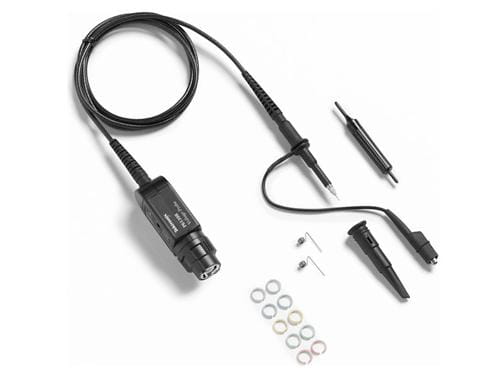

Passive Probe

主要特性

  • 10倍衰减
  • 50 MHz带宽
  • 1.3米长度

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Electrical characteristics

Bandwidth
DC to 50 MHz
Rise time
<7 ns (typical)
Compensation range
15 pF to 25 pF
Input resistance
10 MΩ ±1.5%
Input capacitance
<12 pF (typical)
Propagation delay
~6.1 ns
Maximum input voltage
300 VRMS CAT II

Physical characteristics

Cable length
1.3 m (4.2 ft)

EMC, environment, and safety

Temperature range
Operating
10 °C to +55 °C (14 °F to 131 °F)
Nonoperating
-51 °C to +71 °C (-60 °F to 160 °F)
Operating and nonoperating
5% to 95% relative humidity (%RH) up to 30 °C (86 °F), 5% to 65% RH above +30 °C (86 °F) up to +55 °C (131 °F)
Altitude
Operating
<3.0 km (9,842 ft)
Nonoperating
<12.2 km (40,026 ft)
