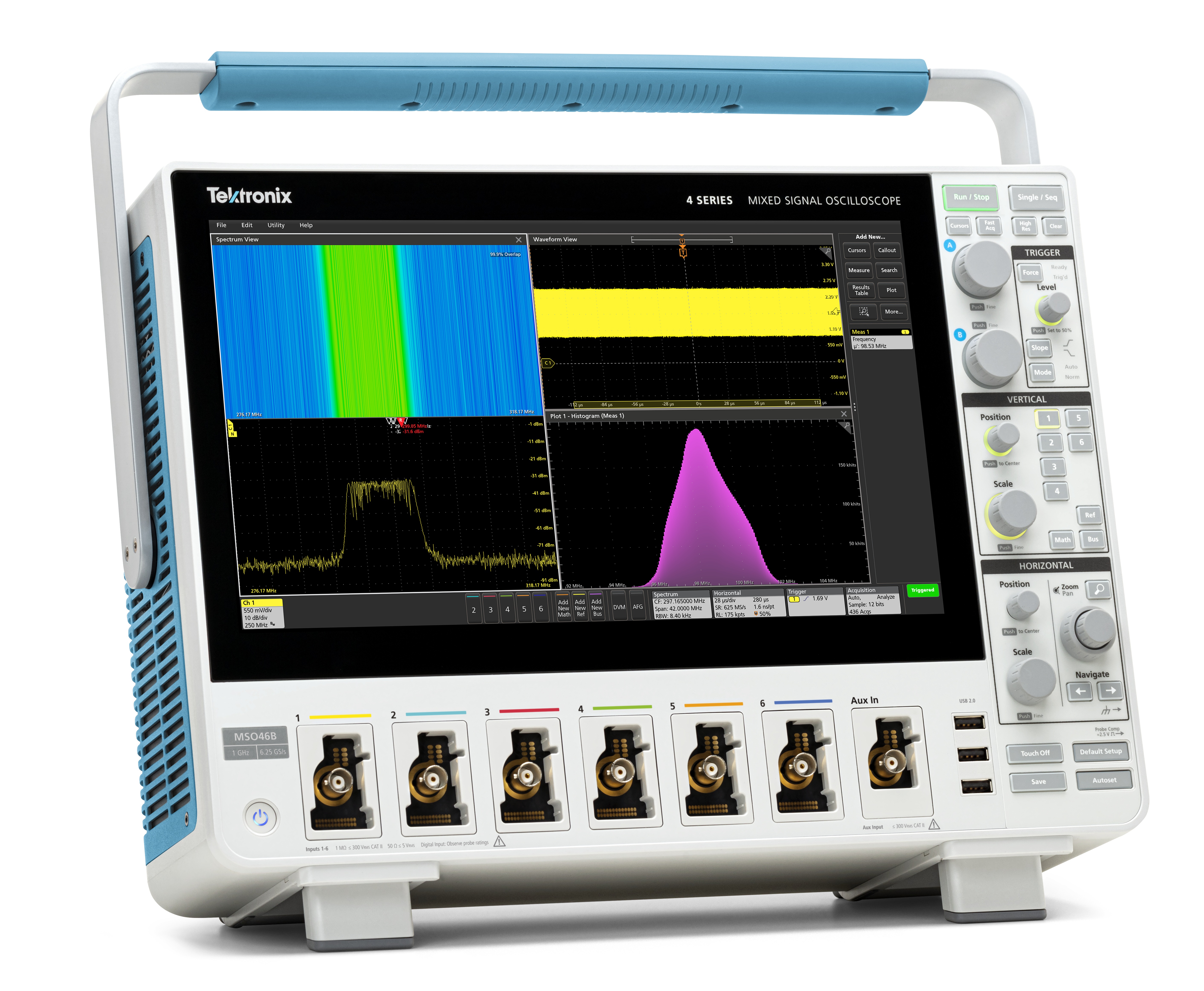

MSO46B Oscilloscope: {{Analog Bandwidth}}, {{Analog Channels}} Analog and {{Digital Channels}} Digital Channels
The MSO46B, {{Analog Bandwidth}} oscilloscope, provides {{Analog Channels}} analog and {{Digital Channels}} digital channels, a sample rate of {{Sample Rate}}, and {{Record Length}} points of record length.
- Model NumberMSO46B
Base Price:
US $14,400
1-year standard warranty included
Calibration certificate documenting traceability included
Specifications
| Input Channels | |
| FlexChannel Inputs | 4 or 6 FlexChannel inputs |
| Per FlexChannel | One analog signal (waveform, spectrum, or both simultaneously) plus eight digital logic inputs with TLP058 logic probe |
| Bandwidth | |
| Available Bandwidths | 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz |
| Sampling | |
| Sample Rate | 6.25 GS/s (all analog and digital channels) |
| Memory | |
| Standard Record Length | 31.25 Mpoints |
| Optional Record Length | 62.5 Mpoints |
| Performance | |
| Waveform Capture Rate | >500,000 waveforms/s |
| Vertical Resolution | |
| ADC Resolution | 12-bit ADC |
| High Resolution Mode | Up to 16 bits |
| Triggering | |
| Standard Trigger Types | Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional) |
| Auxiliary Trigger | ≤300 V RMS (Edge Trigger only) |
| Analysis | |
| Cursors | Waveform, V Bars, H Bars, V&H Bars |
| Automatic Measurements | 36 |
| Spectrum View | Frequency-domain analysis with independent controls for frequency and time domains |
| FastFrame | Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms/s |
| Plots | Time Trend, Histogram, Spectrum |
| Math Functions | Basic waveform arithmetic, FFT, advanced equation editor |
| Search | Search on any trigger criteria |
| Optional Analysis | |
| Features | Advanced Spectrum View, RF vs. Time traces/triggers, Spectrograms, IQ capture, Mask/Limit Testing, Advanced Power Measurements, Three-Phase Electrical Analysis |
| Protocol Support (Optional) | |
| Trigger, Decode & Analysis | I2C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, CAN XL, LIN, FlexRay, SENT, PSI5, CXPI, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC 429, SpaceWire, NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO, NFC |
| Optional Generator | |
| AFG Output Frequency | Up to 50 MHz |
| Waveform Types | Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac |
| DVM | |
| Digital Voltmeter | 4-digit AC RMS, DC, and DC+AC RMS voltage measurements |
| Counter | |
| Trigger Frequency Counter | 8-digit |
| Display | |
| Size | 13.3 in (338 mm) |
| Resolution | 1920 × 1080 Full HD |
| Touchscreen | Capacitive multi-touch |
| Connectivity | |
| USB | USB 2.0 Host, USB 3.1 Host, USB 2.0 Device (6 ports total) |
| Ethernet | 10/100/1000 Base-T Ethernet |
| Video Output | HDMI |
| Warranty | |
| Standard Warranty | 1 year |
| Dimensions | |
| Size (W × H × D) | 15.9 × 11.299 × 6.1 in (405 × 287 × 155 mm) |
| Weight | |
| MSO44B | < 15.96 lb (7.25 kg) |
| MSO46B | < 16.55 lb (7.50 kg) |
-
