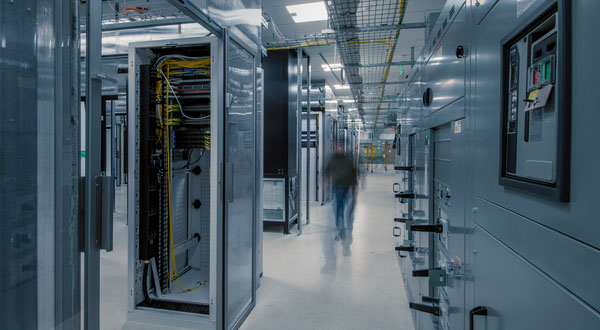

AI Data Center Power Architecture Testing

AI Data Center Power Architecture Testing

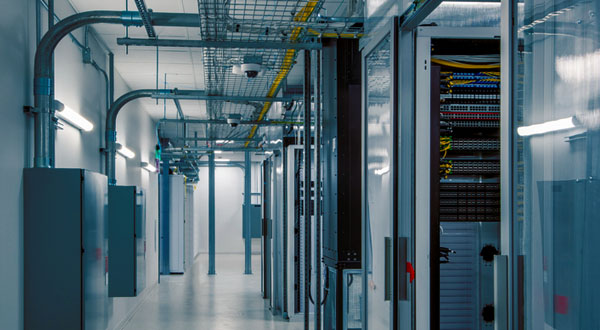

As AI data centers transition to 800 V DC infrastructures and higher rack power densities, qualification teams face a new level of complexity in validating power distribution architectures. Solid State Transformers, power shelves, and HVDC power racks must be tested under realistic, high-voltage, high-dynamic load conditions to ensure efficiency, stability, and long-term reliability before deployment.

Tektronix delivers advanced solutions purpose-built for Qualification and Test Mamagers, Lab Managers, and Qualification Engineers responsible for validating next-generation power subsystems. Our dynamic, regenerative electronic loads help engineers designing data center power distribution sub-systems who need to emulate rack-level 800 V DC power-rail behaviour by enabling dynamic load transitions at system voltage and recovering energy with a space-saving, cost-efficient, scalable, and high-density test system— unlike unlike conventional solutions with significantly lower power density and dissipative operation.

From Solid State Transformer validation to power shelf and full HVDC rack testing, Tektronix enables precise, efficient, and future-ready power architecture qualification.

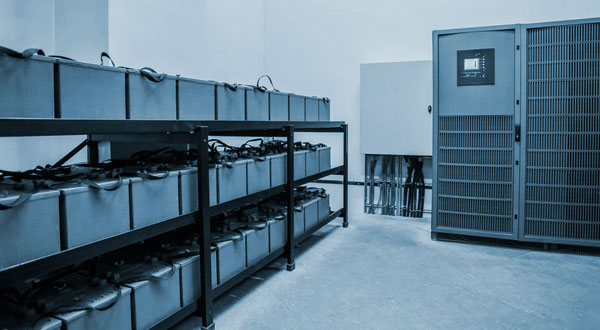

Battery Energy Storage Systems (BESS) Testing

Battery Energy Storage Systems are becoming a critical element in AI data centers, where extreme power density, fast load transients, and 800 V DC architectures demand highly responsive and reliable backup and stabilization solutions. Unlike traditional UPS systems, modern BESS must handle rapid ramp rates, bidirectional power flow, and seamless interaction with HVDC distribution and renewable energy sources.

Tektronix offers testing solutions ensuring precise analysis of dynamic charge/discharge behavior under AI workload profiles, ensuring thermal stability at high power levels, verifying protection mechanisms, and confirming long-term reliability and safety.

Power Components Testing

Components such as high current connectors play a critical role in AI data center power distribution, where HV DC infrastructures and escalating rack power levels demand compact, low-loss, and highly reliable interconnect solutions. As current densities increase, connectors must withstand elevated thermal stress, resistive losses, and repeated mating cycles without degradation.

Tektronix solutions allow you to validate current-carrying capacity under dynamic load conditions, assessing temperature rise and contact resistance, verifying mechanical robustness, and ensuring safe operation during fault scenarios such as short circuits or hot-plug events.

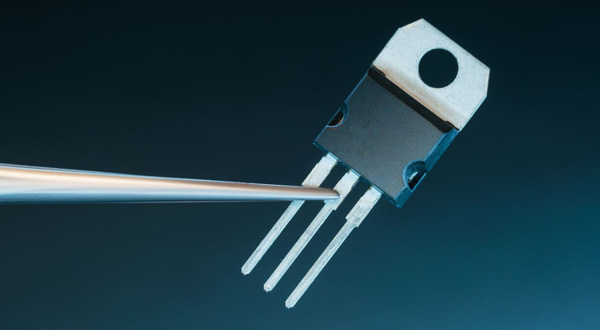

Semiconductor Device Testing

Semiconductor materials such as SiC and GaN present particular challenges in R&D departments. Please see our solution site on semiconductor characterization.
