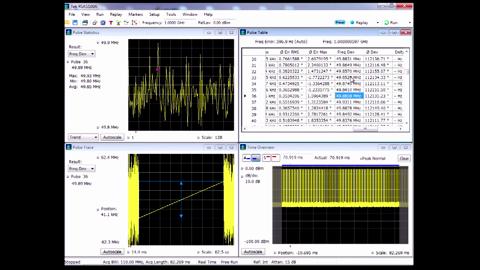

The RSA5000 is a great tool for characterization of pulsed systems like radars. In this video, key measurement capabilities for radar analysis are demonstrated. Basic spectrum analysis is used to capture the pulse envelop of a chirped linear FM signal. The pulse measurement software suite is a one button push setup with 27 different vector and scalar measurements on up to 10,000 pulses. Swept DPX provides the resolution needed to examine “signals under signals” and other triggers for troubleshooting.
