26 GHz Bias Tee

PSPL5541A Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

PSPL5541A-Datasheet

更多信息

在线阅读:

The Model PSPL5541A is a very broadband, coaxial bias insertion tee and DC blocking capacitor. It passes very fast rise pulses with a minimum of waveform distortion. Its rise time is only 8 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 80 kHz to beyond 26 GHz.

Key performance specifications
  • 80 kHz to 26 GHz
  • 8 ps rise time
  • 50 V, 100 mA

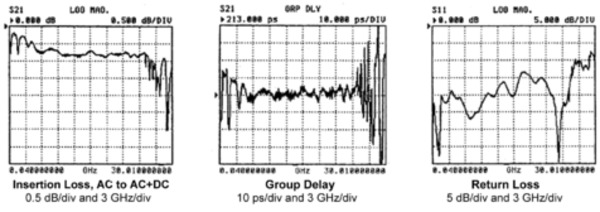

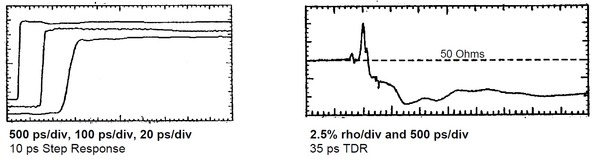

Typical performance

PSPL5541A-Datasheet-EN_US-9-L


PSPL5541A-Datasheet-EN_US-10-L


Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z Ohms  50
Upper 3 dB frequency fc,h GHz  >26
Lower 3 dB frequency fc,l kHz  80
Rise time tr ps  12  10 – 90%
Insertion loss S21dB  0.4

1.5
 Typical
f < 6 GHz
f < 20 GHz
Return loss S11dB  20
>15
 f = 100 MHz
f < 10 GHz
Refl. Coefficient (35 ps TDR) Γ %   -5    t > 1 ns (AC Port)
DC voltage V Volts   50
DC current I mA   100
Capacitance C μF  0.02   +/-20%
Inductance L mH   +/-20%
Resistance R Ohm  3.7
RF power P W   Average power
Isolation S13dB   >40
DC path bandwidth fc,DCkHz  16
Delay Td ps  213   AC port to AC+DC port
RF Connectors SMA jacks (f)
DC Connector SMA jack (f)
Warranty One Year

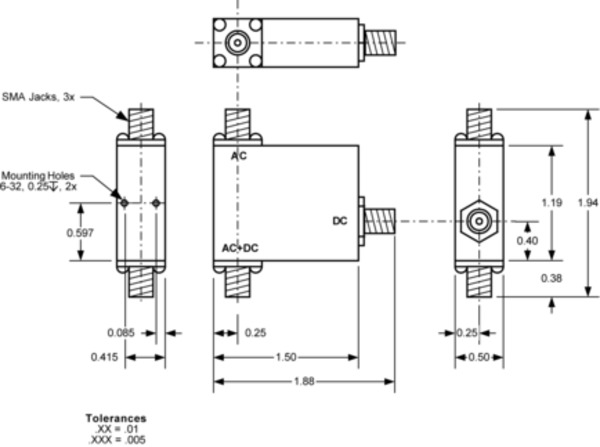

Mechanical dimensions

PSPL5541A-Datasheet-EN_US-11-L

Ordering information

Models
PSPL5541A
BIAS TEE, 26 GHz, 50 V
