Probe Accessories

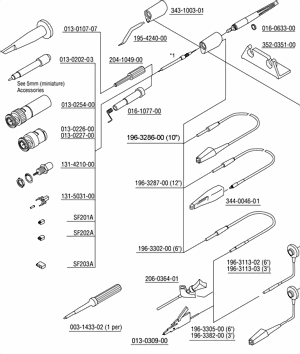

3.5 mm (Compact) Probe System for P6053C, P6133 Opt. 25, P6134C,P6135A, P6136 Opt. 25, P6137, P6138, P6138A, P6139A, P6339A, P6156, P6158and P5050
3.5 mm (Compact) Probe System for P6053C, P6133 Opt. 25, P6134C,P6135A, P6136 Opt. 25, P6137, P6138, P6138A, P6139A, P6339A, P6156, P6158and P5050
*1 See the Probe Replacement Parts table.
Probe Accessories
|
Part Number |
Description |
|---|---|
|
003-1433-02 |
Adjustment Tool. |
|
013-0107-07 |
Retractable Hook Tip for Compact Tip Probes (Slate Gray). |
|
013-0202-03 |
Subminiature/Compact-to-Miniature Probe to Adapter (Allows Use of Miniature Probe Tip Accessories). See 5 mm Probe Accessories. |
|
013-0226-00 |
Compact Probe Tip to BNC Adapter (Non-terminated). |
|
013-0227-00 |
50 Ω Compact Probe Tip to BNC Termination Adapter. |
|
013-0254-00 |
Compact Probe Tip to BNC Adapter Thread Locking (Non-terminated). |
|
016-0633-00 |
Cable Marker Set for All Modular Cables (P5050, P610X/A/B, P612X, P613X/A, P623X, P62XX) (Except P6201, P6202A). |
|
016-1077-00 |
Ground Tip Contact for Compact Tip Probes. 2 ea. Five Different Probe Tip to Ground Contact Spacings. |
|
131-4210-00 |
Compact Probe Tip Chassis Mount Test Jack. |
|
131-5031-00 |
Compact Probe Tip Circuit Board Test Points (Package of 25). |
|
195-4240-00 |
Low Impedance Ground Contact. |
|
196-3113-02 |
6 in. Slip-on Ground Lead. |
|
196-3113-03 |
3 in. Slip-on Ground Lead. |
|
196-3286-00 |
10 in. Alligator Ground Lead. |
|
196-3287-00 |
12 in. Slip-on Ground Lead. |
|
196-3302-00 |
6 in. Alligator Ground Lead (Not Compatible With P6137, P6134C, P6053C or P6156). |
|
196-3305-00 |
6 in. Alligator Ground Lead. |
|
196-3382-00 |
3 in. Alligator Ground Lead. |
|
204-1049-00 |
Compact Probe Tip Attenuator Tip Cover. |
|
206-0364-01 |
SMT KlipChip™ Adapter. |
|
343-1003-01 |
Ground Collar. |
|
344-0046-01 |
#6-32 Thread Alligator Ground Clip. |
|
352-0351-00 |
Probe Holder, Self-adhesive Back, Black. |
SMD Attachment Tools
|
Part Number |
Description |
|---|---|
|
SMG50 |
SMT KlipChip Adapter, Package of 20. |
|
013-0309-00 |
IC Grabber (2 each). |
|
SF201A |
SureFoot® Probe Tip Adapter, Package of 12, Yellow, 50 mil Pitch. |
|
SF202A |
SureFoot Probe Tip Adapter, Package of 12, Blue, 25 mil/0.65 mm Pitch. |
|
SF203A |
SureFoot Probe Tip Adapter, Package of 12, Red, 0.5 mm Pitch. |
Product(s) are manufactured in ISO registered facilities.
60W-15268-0d
