PSPL5530B 12.5 GHz Bias Tee Datasheet

PSPL5530B Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

在线阅读:

The PSPL5530B is a broadband coaxial bias insertion tee for low current applications such as biasing avalanche photo diodes. It is rated for 200 V. It is designed to pass fast rise time pulses with minimum waveform distortion. The rise time is 35 ps, with a -3 dB bandwidth extending from 20 kHz to 12.5 GHz.

Key performance specifications
  • 20 kHz to 12.50 GHz
  • 35 ps rise time
  • 200 V, 10 mA

Typical performance

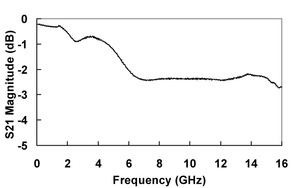

PSPL5530B-Datasheet-769940-9-N

Insertion Loss, AC to AC+DC

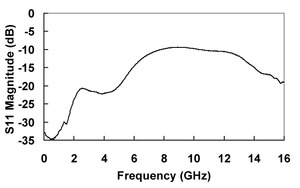

PSPL5530B-Datasheet-769940-10-N

Return Loss, AC Port

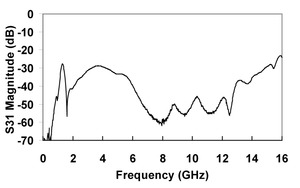

PSPL5530B-Datasheet-769940-11-N

Isolation, AC to DC

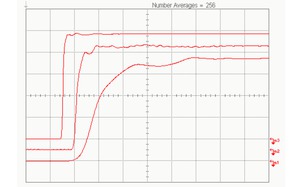

PSPL5530B-Datasheet-769940-12-N

Top to bottom: 500 ps/dic, 100 ps/div, 20 ps/div; Response to Step with 15 ps rise time

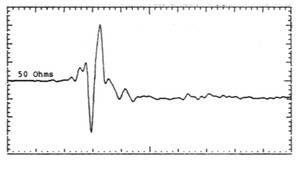

PSPL5530B-Datasheet-769940-13-N

2.5% rho/div and 200 ps/div; 35 ps TDR of AC port

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz 10  12.5
Lower 3 dB frequency fc,l kHz   20
Rise time tr ps   35  40  10 – 90%
Insertion loss S21 dB   0.2  0.5  (0.01 – 1 Ghz)
Return loss S11 dB RL > 25 dB – 3 dB / GHz * f (GHz)
RL > 15 dB – 1 dB / GHz * f (GHz)
0.1 5 GHz
Refl. Coefficient (35 ps TDR) Γ %   ±8
–2.5
  t t > 200 ps
DC voltage V V     200
DC current I mA     10
Capacitance C μF   0.082    ±20%
Resistance R k ohms
RF power P W     Average power
Isolation S13 dB   45
20
  f f > 1 GHz
DC path bandwidth fc,DC kHz   30
RF Connectors SMA jacks (f)
DC Connector SMA jack (f)
Warranty One Year



Mechanical dimensions


PSPL5530B-Datasheet-769940-14-N



Ordering information

Models
PSPL5530B
BIAS TEE, 12.5 GHz, 200 V
