4 GHz Active Probes

P6249 • P6241

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态

P6249 • P6241

Features & Benefits

  • <120 ps Rise Time (Guaranteed)
  • 4 GHz Bandwidth
  • <0.5 pF Input Capacitance (P6241 Only)
  • Small Form Factor Probe Head
  • 8 Vp-p Dynamic Range (P6241 Only)
  • Direct Access to SMDs
  • Oscilloscopes Supported:
    • P6249 TDS/CSA7000, 6000, 700, 600 Series
    • P6241 TDS/CSA7000, 6000, 700, 600 Series
  • Probe Interfaces:
    • P6249 TekProbe® II BNC Interface
    • P6241 TekProbe II BNC Interface

Applications

  • High-speed Digital Systems Design
  • Component Design/Characterization
  • Signal Integrity, Jitter and Timing Analysis
  • Manufacturing Engineering and Test
  • Signals with Voltage Swings up to 8 Vp-p
  • Measures 3.0 V Logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet

Selecting the right probe for your application is key to attaining the best signal fidelity in your measurements. Active probes provide truer signal reproduction and fidelity for high-frequency measurements. Tektronix provides you a wide range of 4 GHz active probes to select from for your application.

TekProbe BNC Interface - P6249 and P6241

The P6249 and P6241 have similar performances to the P7240. Primarily used for the TDS694C and TDS794D performance scopes, these probes may also be used with conventional BNC interfaces through the Tektronix 1103 TekProbe Power Supply. The P6249 provides 4 Vp-p dynamic range. The P6241 offers a 10X attenuation and a 8 Vp-p dynamic range plus has a lower input capacitance due to the unique probe tip. A full complement of versatile probe tip accessories helps users connect to the wide range of devices faced by digital designers.



Characteristics

Model

Characteristic

P6249

P6241

Rise Time

<120 ps

<120 ps

Bandwidth

4.0 GHz

4.0 GHz

Attenuation

5X

10X

DC Resistance

20 kΩ

40 kΩ

Input Capacitance

<1 pF

<0.5 pF

Dynamic Range

±2 V

±4 V

Offset Range

±5 V

±10 V

Interface

TekProbe® II

TekProbe® II



Ordering Information

User Manuals -

P6249: Order 071-0538-xx.

P6241: Order 071-1188-xx.



Included Accessories

Product Name/Description

P6241

Part Number

Quantity

P6249

Part Number

Quantity

3 Inch Ground Leads (Set of 2)

196-3437-10

1





Customizable Ground Lead (Set of 5)

196-3482-00

1

196-3482-00

1

Lead Set:

196343700 (3)

196345700 (2)





196-3456-00

1

Y Lead Adapter

196-3434-00

2





L Adapter (Set of 2)

016-1913-00

1





Adapter Spring (Set of 10)





016-1774-00

1

SMT KlipChip™ Adapter

206-0364-01

2

206-0364-01

2

Short Pogo Pin Ground (Set of 8)

016-1917-00

1





Pogo Pin (Set of 10)





016-1772-xx

1

Square Pin Socket (Set of 10)





016-1773-xx

1

Square Pin Adapter (Set of 4)

016-1910-01

1





Probe Tip (Set of 30)





131-5638-30

1

Color Coding Bands, 2 Each of 5 Colors

016-1315-00

1

016-1315-00

1

Probe Carrying Case

016-1879-01

1

016-1879-01

1

Accessory Case

006-7164-00

1

016-7164-00

1

Wrist Strap

006-3415-04

1

006-3415-04

1

SureToe™ (Set of 12)

ST501

(Replacement Pkg of 12)

1

ST501

(Replacement Pkg of 12)

1

Recommended Accessories

Product Name/Description

P6241

Part Number

Quantity

P6249

Part Number

Quantity

SMK4 - IC Grabber (Set of 2)

013-0309-00

1

013-0309-00

1

SureFoot®, 50 mil (Set of 12)





SF501

1

SureFoot, 25 mil (Set of 12)





SF502

1

SureFoot, 0.5 mil (Set of 12)





SF503

1

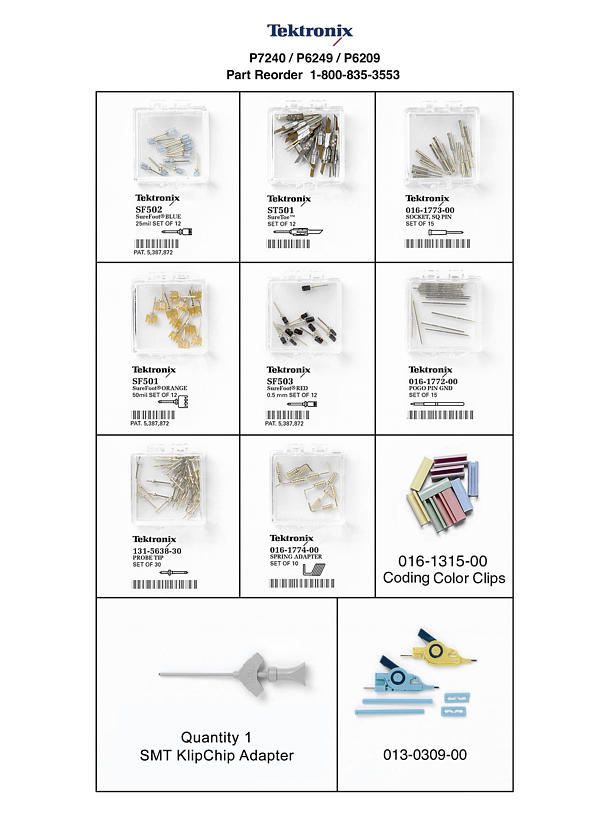

A000_1249-N

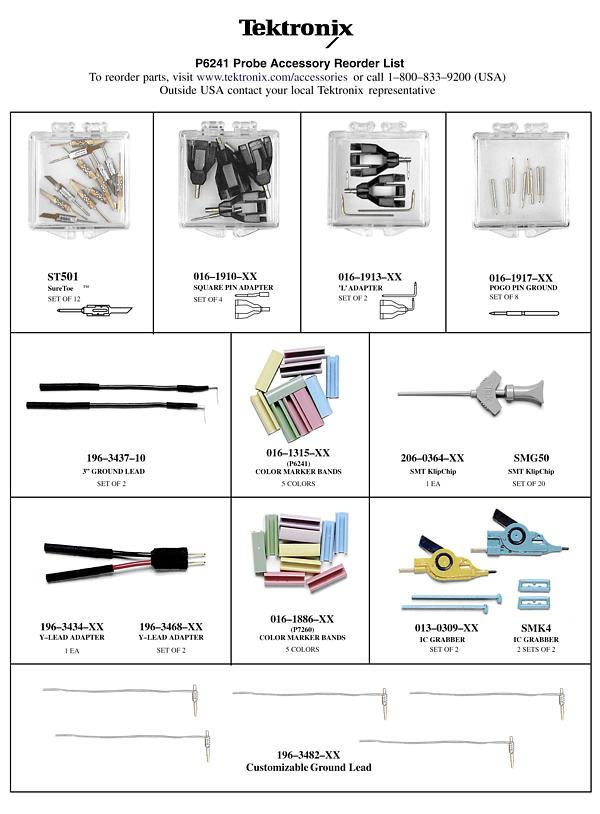

A000_1255-N
