PSPL10300B Programmable Pulse Generator Datasheet

PSPL10300B Datasheet

泰克对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态

更多信息

在线阅读:

PSPL10300B Datasheet

The PSPL10300B Pulse Generator provides high amplitude positive or negative pulses with convenient front panel or computer control. It has an adjustable baseline to provide up to ±5 V DC offset, or allows for external control of the baseline up to ±50 V. The output has fast edge rates, smooth transitions and minimal overshoot & ringing. Adjustable output levels are obtained using internal step attenuators, ensuring consistent signal shape at all settings. The outputs are designed for a 50 Ω impedance, but can safely drive any load from a short circuit to an open.

Notice to EU customers

This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.

Key performance specifications
  • Positive or negative polarity pulses
  • Adjustable positive pulse amplitude from
  • Rise time 300 ps
  • Adjustable duration from
  • Single shot, or 1 Hz to 100 kHz repetition rate

Key features

  • Keypad interface
  • Programmable IEEE-488
  • Internal, external, manual or GPIB trigger modes
  • Gated output
  • Port for external baseline offset up to ±50 V

Applications

  • University education and research
  • UWB signal source
  • Semiconductor characterization
  • Laser driver

Typical performance

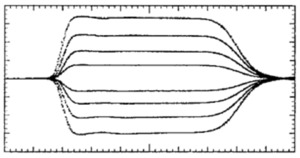

PSPL10300B-Programmable-Pulse_Generator-Datasheet--808712-9-N


15 V/div and 500 ps/div. Adjustable amplitude from -45 V to +50 V in 1 dB steps. Also adjustable baseline offset from -5 V to +5 V.

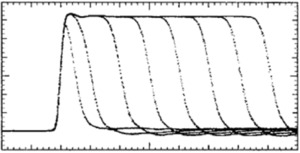

PSPL10300B-Programmable-Pulse_Generator-Datasheet--808712-10-N


8 V/div and 1 ns/div. Adjustable duration from
PSPL10300B-Programmable-Pulse_Generator-Datasheet--808712-11-N


8 V/div and 200 ps/div. Leading edge 250 ps rise time.
PSPL10300B-Programmable-Pulse_Generator-Datasheet--808712-12-N


20 V/div and 20 ns/div. 20 ns and 100 ns pulses.

Specifications

The performance parameters listed here are typical values, parameters are guaranteed only when maximum and/or minimum limits are given.

Parameter Value
Polarity Positive or negative
Amplitude into 50 Ω (See Notes) 4.5 mV to 50 V positive, -4 mV to -45 V negative, adjustable in 1 dB steps
Amplitude accuracy, into 50 Ω (full output amplitude) ±2 V positive, ±3 V negative
Baseline Adjustable from -5 V to +5 V in 1.25 mV steps, external input provided for user-supplied offset of ±50 V
Transition time, leading edge (10 – 90%) 300 ps, 325 ps max.
Transition time, trailing edge (10 – 90%) 750 ps, 1 ns max.
Reflection coefficient 30% during pulse, +50% after pulse, improves with increasing attenuation
Source impedance (nominal) 50 Ω
Duration (FWHM) (See Notes)
Baseline precursor
Topline overshoot 2%
Topline perturbations ±1% for t
Topline flatness ±0.5% for t > 3 ns (±2% for negative pulse)
Spurious pulse at 120 ns +6% with pulse duration ≤ 20 ns, +30% for pulse duration = 100 ns

Notes:

The duration and delay values displayed on the front panel LCD and programmed over GPIB are only to be considered “nominal” values and not absolute values. The duration and delay parameters exhibit some thermal drift, rep rate dependency and interaction. There will be some loss in amplitude at minimum pulse durations. The amplitude tolerance of ±2 V holds only for > 10 ns durations. The amplitude has a minor rep rate dependency. Always use an oscilloscope as an independent check of these pulse parameters. The instrument is adjusted and calibrated at the factory in an ambient temperature of 23 °C (±3 °C) at a rep. rate of 100 kHz. The instrument will operate over a temperature range of 0 to 50 °C but will not meet all specifications over this range.

Trigger and timing

The performance parameters listed in this table are typical values; parameters are guaranteed only when maximum and/or minimum limits are given.

Parameter Value
Trigger in/out delay 185 ns
Repetition rate 1 Hz to 100 kHz
Period 10 µs to 1 s, 0.1 µs steps
Trigger mode Internal, external, manual, or GPIB
External trigger input level -2 to +2 V, 1 mV steps, positive or negative slope
Maximum external trigger input ±5 V
External trigger impedance 50 Ω
Trigger output into 50 Ω 1 V, 1 µs
Delay (See Notes above) 0 to 100 ns, 25 ps steps
Delay jitter, RMS
External gate input TTL, > 2 V on,
External gate impedance 50 Ω
General specifications
Parameter Description
Accessories included Power cord, BNC cable, rack mount kit, instruction manual
Front panel controls Power, menu, data entry, disable/enable, local, and manual trigger
Power supply (mains) 100, 115, or 230 VAC, ±10% switch selectable, 50 or 60 Hz
Power consumption 48 VA (60 Hz), 65 VA (50 Hz)
Operating environment (See Notes above)
   Temperature 40 °C (104 °F); low limit of 0 °C (32 °F)
   Humidity 80% for temperatures up to 31 °C (88 °F), decreasing linearly to 50% at 40 °C (104 °F)
   Elevation 2000 m (6562 ft.)
Dimensions 19.0 x 15.2 x 5.5 in. (48.3 x 38.6 x 14.0 cm)
Weight 21 lbs (9.5 kg)
Connectors SMA output, BNC trig in, gate in, trig out, BNC on rear panel for baseline offset d/a output and bias tee input, GPIB on rear panel
GPIB standard IEEE-488.1-1987
GPIB interface functions SH1, AH1, T6, L4, SR1, RL1, PPO, DC1, DT1, CO and E2
Set up Save/recall in 10 memories with battery backup
Warranty One year

Ordering information

Models
PSPL10300B
300 ps PULSE GENERATOR, GPIB
