信号脉冲发生器
信号脉冲发生器
泰克脉冲发生器提供快速上升时间和高幅度组合，具有无与伦比的信号完整性。 仪器拥有可调节的脉冲持续时间且可手动或通过计算机控制。
信号脉冲发生器
| 标题 | 类型 | |
|---|---|---|

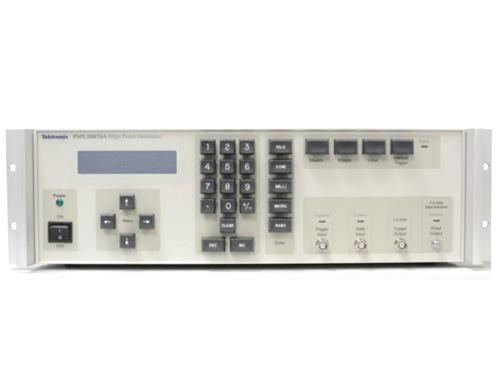

| 可编程脉冲发生器 PSPL10050A, PSPL10060A, PSPL10070A产品技术资料PSPL10000系列脉冲发生器通过方便的前面板或计算机控制提供了优异的信号完整性。高压输出拥有快速的边沿速率、平滑的跳变和最小的过冲和振铃。可调节输出电平使用内部阶跃衰减器获得，确保在所有设置上实现一致的信号形状。输出是为50 Ω阻抗设计的，但可以安全地驱动从短路到开路的任何负载。 Literature number: 1PC-30927-1 | 数据表 | 13 Jul 2015 |
| 可编程脉冲发生器 PSPL10300B产品技术资料PSPL10300B脉冲发生器通过方便的前面板或计算机控制提供了高幅度正脉冲或负脉冲。它拥有可调节的基线，提供了高达±5V DC偏置，可以外部控制高达±50V的基线。输出拥有快速的边沿速率、平滑的跳变和最小的过冲和振铃。可调节输出电平使用内部阶跃衰减器获得，确保在所有设置上实现一致的信号形状。输出是为50 Ω阻抗设计的，但可以安全地驱动从短路到开路的任何负载。 Literature number: 1PC-30925-1 | 数据表 | 13 Jul 2015 |
| 脉冲发生器 PSPL2600C和PSPL2600C-TURBO产品技术资料PSPL2600C和PSPL2600C-TURBO脉冲发生器提供了高幅度正脉冲或负脉冲及方便的前面板控制功能。输出拥有快速边沿速率、平滑的跳变及最小过冲和振铃。可调节的输出电平使用内部阶跃衰减器获得，确保所有设置上都实现一致的信号形状。输出是为50 Ω阻抗设计的，但可以安全地驱动从短路到开路的任何负载。 Literature number: 1PC-30924-0 | 数据表 | 02 Apr 2015 |
| 可编程脉冲/码型发生器 PSPL1P601和PSPL1P602产品技术资料TekExpress MHL 高级分析和一致性测试软件为您提供了多种工具，可以简便地运行MHL 一致性测试规范1.X、2.0、1.3 /2.1 和3.2 下规定的移动高清链路(MHL)测试。它为快速测试提供了完整可靠的解决方案。 Literature number: 1PC-30926-1 | 数据表 | 26 Mar 2015 |
| PSPL10000 Series This document provides information for setting up and using the PSPL10000 Series Programmable Pulse generators. Part number: 071341600 | Primary User | |
| PSPL10050A, PSPL10060A, PSPL10070A Datasheet PSPL10050A, PSPL10060A, PSPL10070A DatasheetThe PSPL10000 Series Pulse Generators offer premium signal integrity with convenient front panel or computer control. The high voltage outputs have fast edge rates, smooth transitions and minimal overshoot & ringing. Adjustable output levels are… Literature number: 1PW-30927-2 | 数据表 | |
| PSPL10300B Programmable Pulse Generator Datasheet PSPL10300B DatasheetThe PSPL10300B Pulse Generator provides high amplitude positive or negative pulses with convenient front panel or computer control. It has an adjustable baseline to provide up to ±5 V DC offset, or allows for external control of the baseline up to ±50 V.… Literature number: 1PW-30925-2 | 数据表 | |
| PSPL1P601 & PSPL1P602 This document provides information for setting up and using the PSPL601/602 pulse generators. This document provides information for setting up and using the PSPL601/602 pulse generators. Part number: 071341501 | Primary User | |
| PSPL2600C Pulse Generator Datasheet PSPL2600C DatasheetThe PSPL2600C and PSPL2600C-TURBO Pulse Generators provide high amplitude positive or negative pulses with convenient front panel control. The output has fast edge rates, smooth transitions and minimal overshoot and ringing. Adjustable output levels are… Literature number: 1PW-30924-2 | 数据表 | |
| PSPL2600C This document provides information for setting up and using the PSPL2600C Pulse Generators. Part number: 071341700 | Primary User | |
| Programmable Pulse/Pattern Generator PSPL1P601 and PSPL1P602 DatasheetThe PSPL1P601 and PSPL1P602 are effectively two instruments in one, a programmable pulse generator and a programmable pattern generator. This generator can operate in one of four modes, Pulse, Pattern, Burst, or External Width. There is also an option for… Literature number: 1PW-30926-1 | 数据表 | |
| PSPL1P601 & PSPL1P602 This document provides information for setting up and using the PSPL601/602 pulse generators. Part number: 071341500 | Primary User |
