PSPL5335 -- 1:4 Amplified 4-Way Splitter, Datasheet

PSPL5335 Datasheet

The products on this datasheet are no longer being sold by Tektronix.
View Tektronix Encore for reconditioned test equipment.
Check support and warranty status for these products.

在线阅读:

The PSPL5335 Amplified Splitter provides an effective way to distribute a single signal to four ports with no loss in amplitude. The PSPL5335 is not optimized for data transmission, it can be used as a clock splitter or general purpose amplifier. Unused ports can be left unterminated.

Key performance specifications
  • 0 dB nominal insertion loss
  • Equal distribution to four ports
  • Single power supply

Typical performance

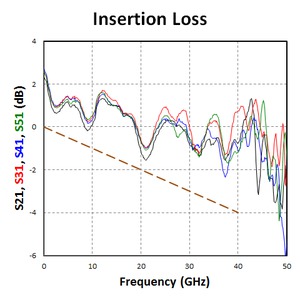

PSPL5335-Amplified-4-Way-Splitter--547146-10-N

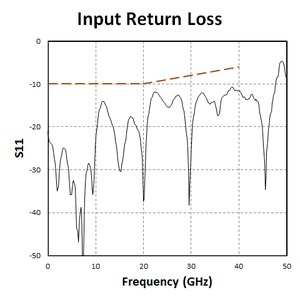

PSPL5335-Amplified-4-Way-Splitter--547146-11-N

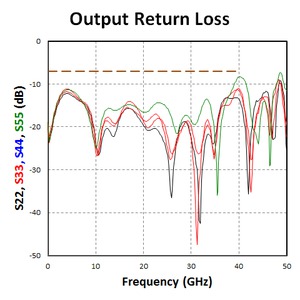

PSPL5335-Amplified-4-Way-Splitter--547146-12-N

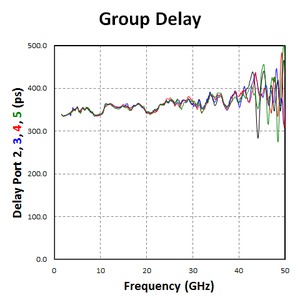

PSPL5335-Amplified-4-Way-Splitter--547146-13-N

Specifications

Electrical specifications
Parameter Performance
Polarity Inverting
Input / output coupling AC
Input / output impedance 50 Ω
Bandwidth (-3 dB) 100 MHz to 35 GHz 1
Insertion loss 0 dB
Input return loss      40 MHz      20 GHz   -10 dB 1
-6 dB 1
Output return loss      40 MHz   -7 dB 1
Group delay 350 ps
Output power at 1 dB gain compression +4 dBm
Warranty One year
Operating specifications
Parameter Units Minimum Typical Maximum Comments
DC supply voltage VDC 4.75    5.5
DC supply current IDC   400  600  Damage threshold 2
Maximum allowed input Vamp     Damage threshold
Power dissipation W   3.3
Operating temperature °C   25

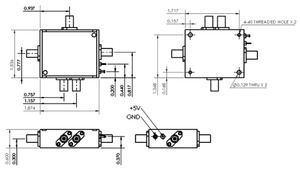

Mechanical dimensions

PSPL5335-Amplified-4-Way-Splitter--547146-14-N



1 Tested in production at 25 °C.

2 Tektronix recommends setting a current limit on the DC supply. Certain operating conditions (such as driving with low duty cycle negative-going pulses) can increase the supply current and cause the device to overheat.

Ordering information

Models
PSPL5335
Port 1 (input), 2.92 mm jack (f), Ports 2 - 5 (outputs), 2.92 mm jack (f)
