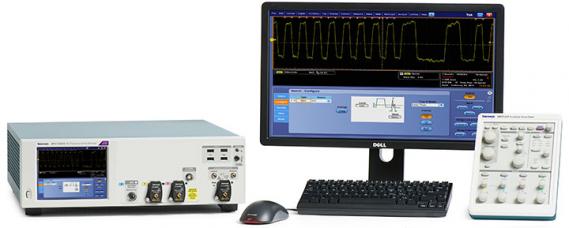

- 低噪声、70 GHz 实时信号捕获功能，采用已获专利的 ATI 结构
- 紧凑的 5 ¼" (3U) 仪器封装，实现了功能最广泛的多通道系统
- 采用 UltraSync 多台时间同步总线，提供精确的可扩充的性能
- 最高的触发性能，>25 GHz 边沿触发带宽，独有的包络触发功能
- 14.1 Gbps 硬件串行触发 – 保证在指定 8b10b、64b66b 或通用 NRZ 码型第一次发生时触发采集，隔离码型相关效应
联系我们
与泰克代表实时聊天。 工作时间：上午 9:00 - 下午 5:00（太平洋标准时间）。
电话
致电我们
工作时间：上午9:00-下午5:00（太平洋标准时间）
下载
下载手册、产品技术资料、软件等：
反馈
主要特性
Specifications
Supported oscilloscopes
- MSO71604DX, MSO72004DX, MSO72304DX, MSO72504DX, and MSO73304DX.
- DPO71604DX, DPO72004DX, DPO72304DX, DPO72504DX, and DPO73304DX.
- DPO71604SX, DPO72004SX, DPO72304SX, DPO72504SX, and DPO73304SX.
- Non-ATI channels of DPO75002SX, DPO75902SX, DPO7702SX, DPS75004SX, DPS75904SX, and DPS77004SX.
.
Recommended probes
| Active probes | Description |
|---|---|
| P7720 | 20 GHz TriMode probe with TekFlex connector technology |
| P7716 | 16 GHz TriMode probe with TekFlex connector technology |
| Probe tips | Description |
|---|---|
| P77STFLXA/P77STCABL | Active, Solder-in Tip with TekFlex connector technology, probe tips to probe directly on the motherboard/vias or interposers with 0 Ω resistor. |
| P77STFLXB/P77STLRCB | Active, Solder-in Tip with TekFlex connector technology, probe tips to probe on the SI Interposer with 100 Ω resistor (Nexus XH Series Interposer). |
| P77STFLRA | Active, long reach solder-in tip with TekFlex connector technology |
| P77HTFLRA | Active, long reach high temperature solder-in tip with TekFlex connector technology |
| P77STFLRB | Active, long reach 55 Ω Solder-in tip with TekFlex Connector technology for DDR/LPDDR electrical Validation with interposers |
| P77HTFLRB | Active, long reach 55 Ω Solder in tip with TekFlex Connector technology for high-temperature DDR/LPDDR electrical Validation with interposers (up to 125 ºC) |
| SI Interposer | EdgeProbeTM, Direct Attach, and Socketed Interposer are available from Nexus. Order directly from Nexus. Request the s-par files for all individual signals on the interposer instead of getting a generic nominal s-par model. Refer the Nexus's page for more information: http://www.nexustechnology.com/products/memory-interposers/lpddr5-mobile-memory-interposers/ |
