What are the maximum power draw ratings for the MSO/DPO5000/B Series oscilloscopes TEKVPI probes?

问题:

What are the maximum power draw ratings for the MSO/DPO5000/B Series oscilloscopes TEKVPI probes?

答案:

The max draw for the MSO/DPO5000/B Series TekVPI channels are 15W. With the External power adapter all channels can support any active VPI probe. This adapter is part 19-7465-xx. Please see the table link below for all the information regarding probe power limits.



If you have further questions please contact the technical support center. They can be reached by phone or by using the 'contact us' button on the right side of the page.

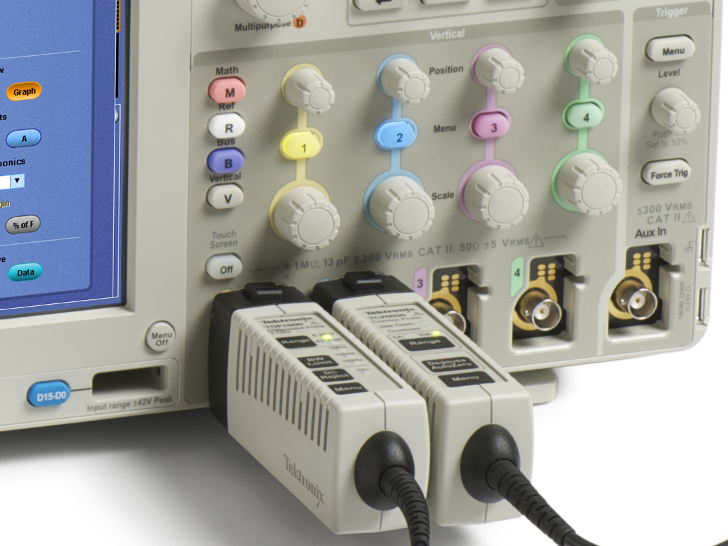

VPI20probe20pic1
